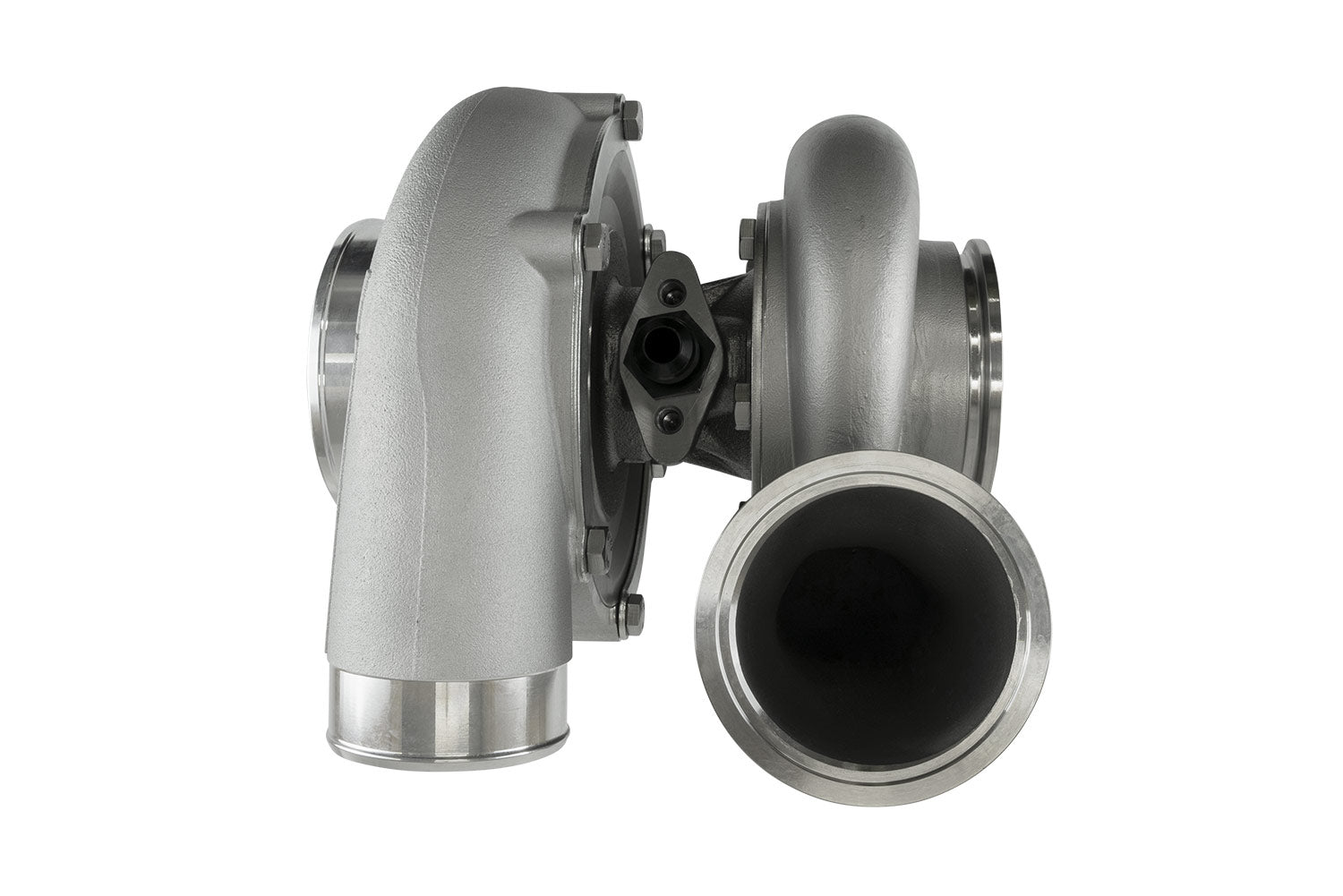

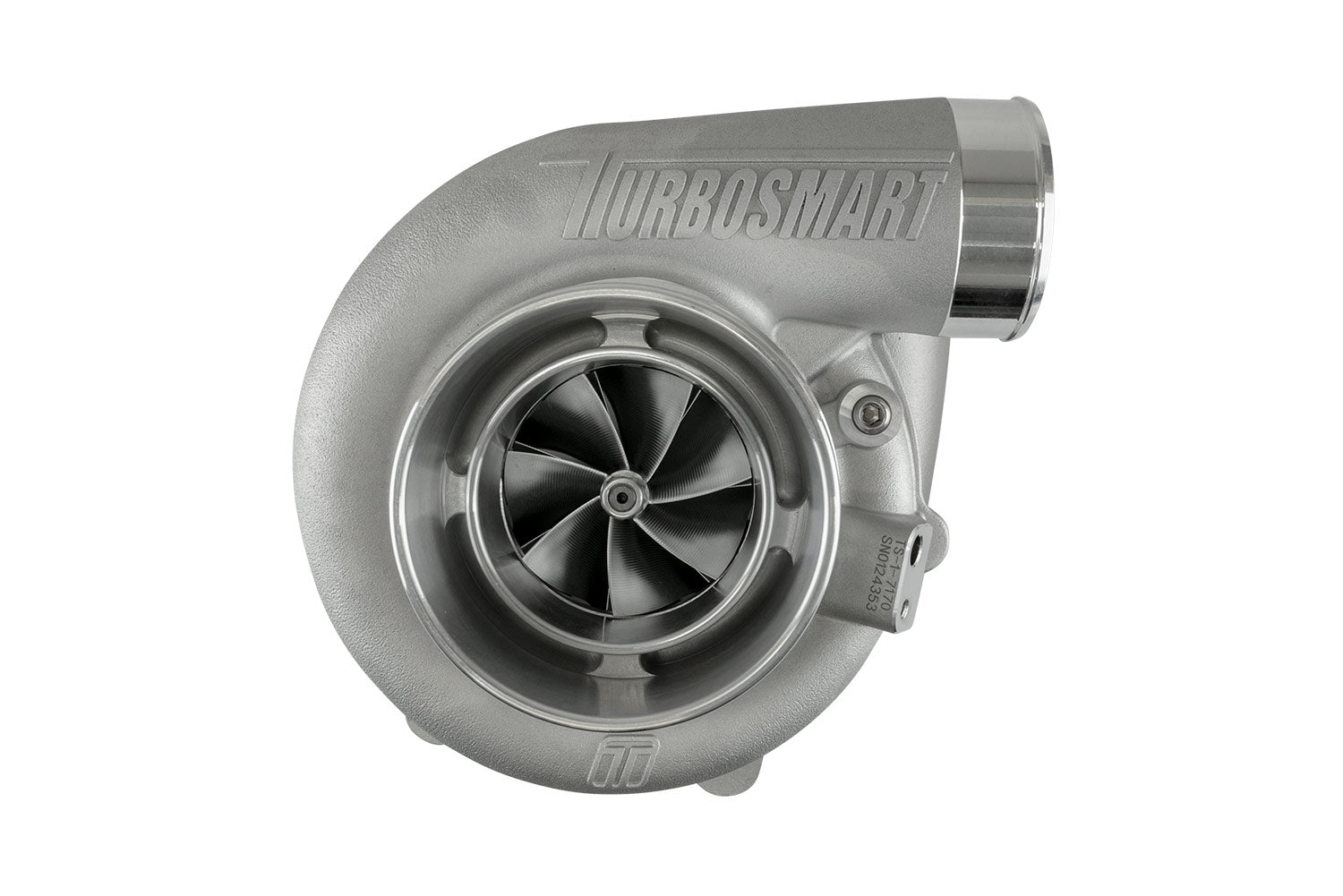

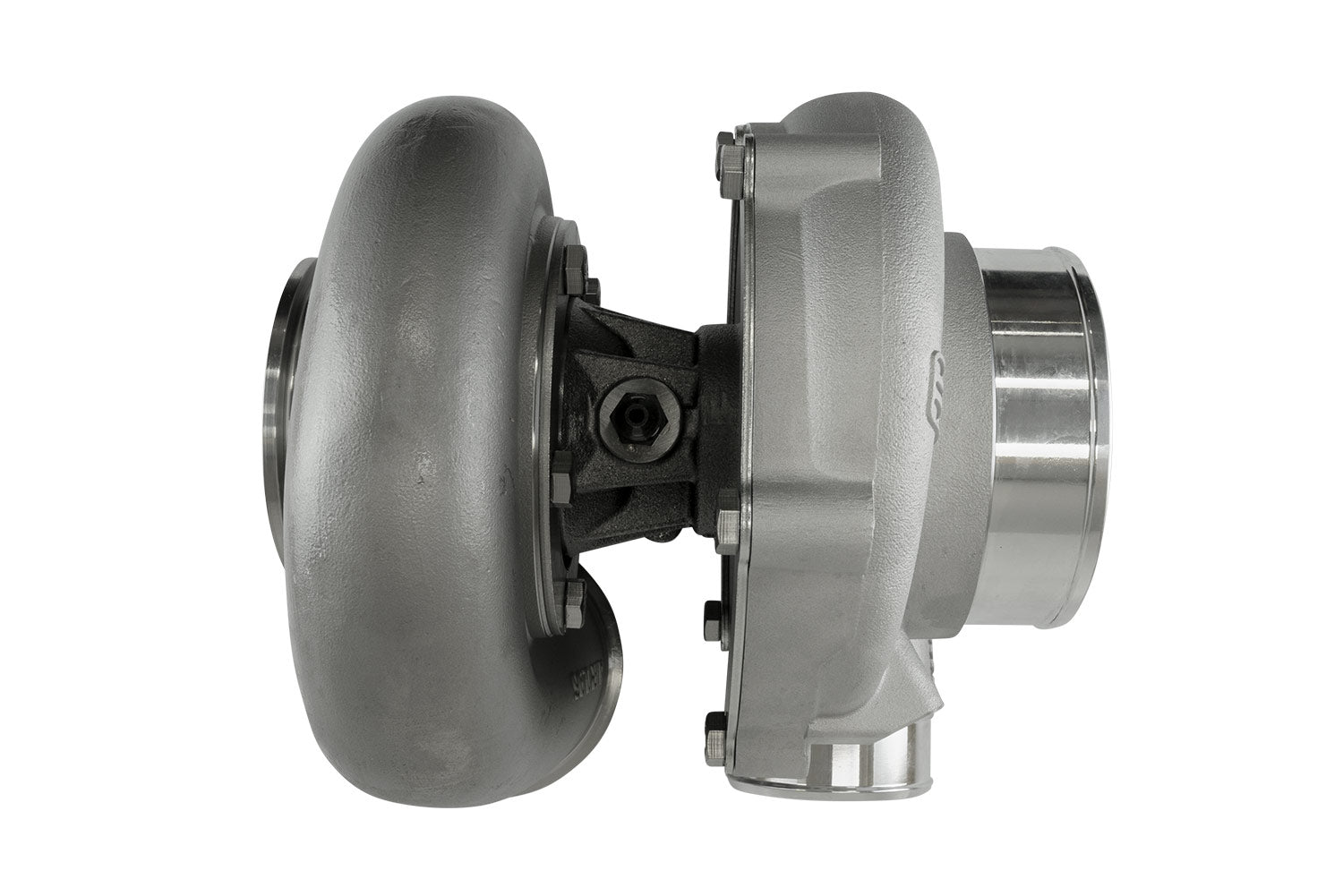

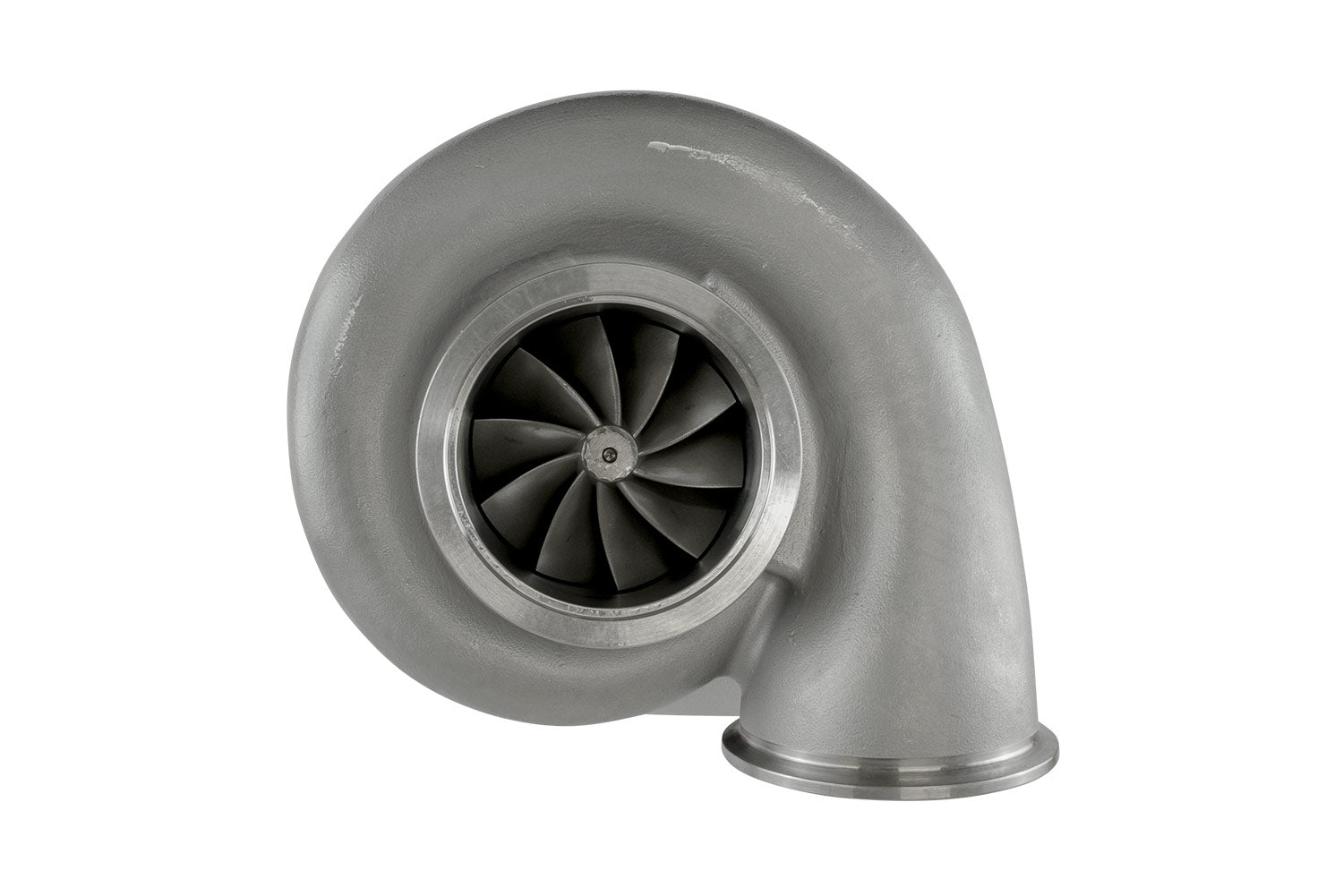

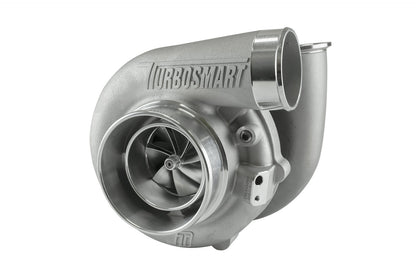

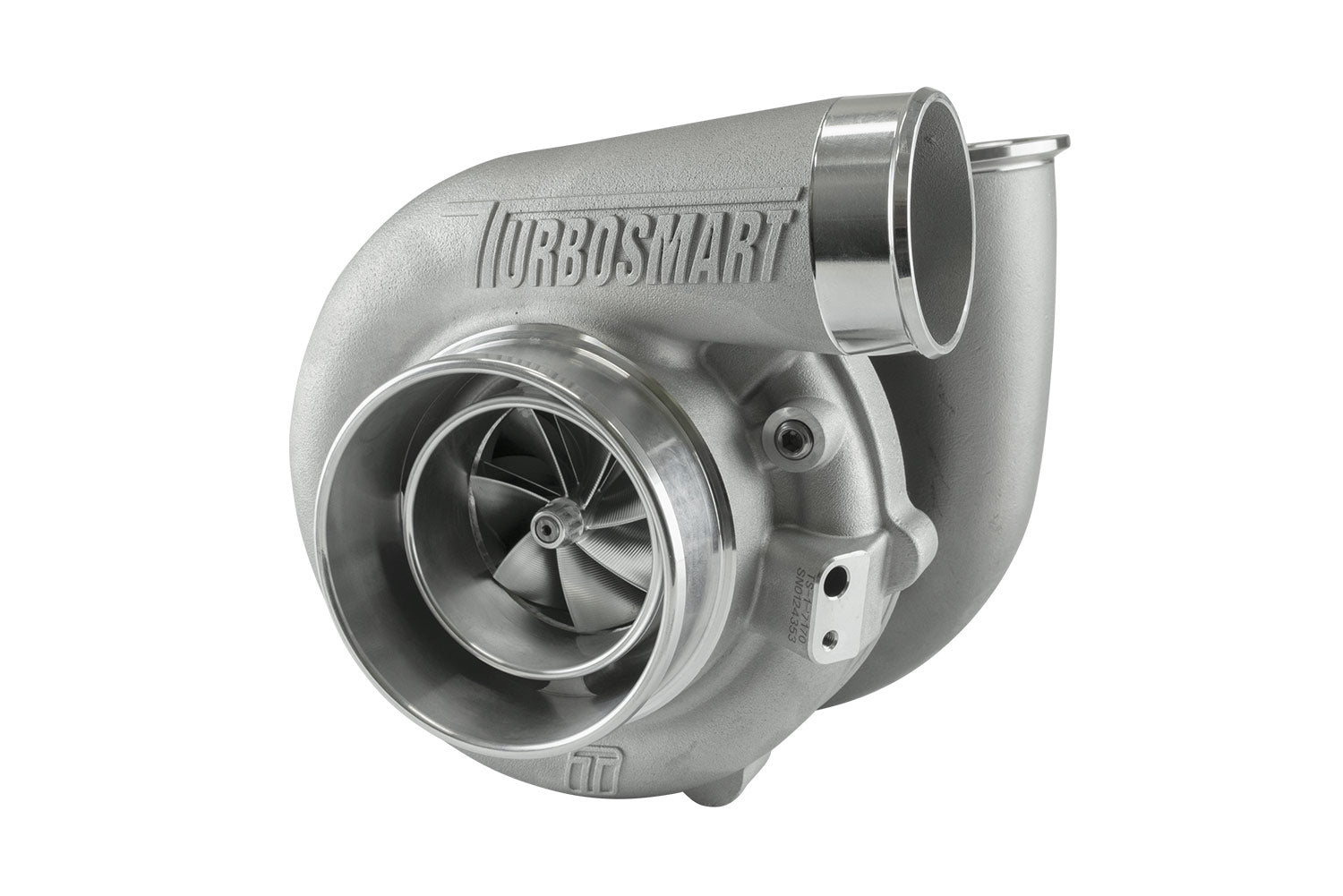

Turbosmart TS-1 7170 Kompact Performance Turbocharger V-Band 1.07 A/R Externally Wastegated

The Turbosmart TS-1 7170 Kompact Performance Turbocharger is engineered for builders seeking strong horsepower capability in a more compact, lightweight package without sacrificing response or durability. Designed using modern materials, CFD-driven aerodynamics, and precision manufacturing techniques, the TS-1 series delivers faster transient response, reduced back pressure, and consistent performance across street and motorsport applications.

This externally wastegated V-band 1.07 A/R configuration offers excellent exhaust flow and packaging flexibility, making it ideal for tight engine bays and high-performance builds that demand efficient turbine performance. Turbosmart’s proprietary dual ceramic bearing system and ultra-low rotating mass shaft assembly are paired with aggressive compressor aerodynamics to deliver rapid spool while maintaining strong airflow and power at higher loads.

Every Turbosmart TS-1 turbocharger is supplied with essential installation hardware—including weld flanges, V-band clamps, and oil and water fittings—providing a premium, installation-ready solution backed by Turbosmart’s proven engineering and motorsport pedigree.

Key Features & Benefits

• Kompact design for improved packaging and reduced weight

• Unparalleled transient response for its size

• Aggressive 7+7 splitter compressor wheel design

• 2618 aluminum compressor wheel for strength and efficiency

• Lightweight 310S stainless steel investment-cast turbine housing

• Lightweight aluminum compressor cover

• CFD-optimized housings for ideal A/R and airflow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced for smooth, reliable operation

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Technical Specifications

• Turbo Series: TS-1

• Cooling: Oil-cooled

• Wastegate Type: Externally wastegated

• Compressor Inlet: 4.00 in (101.6mm)

• Compressor Inducer: 71mm

• Turbine Inlet: 2.25 in V-Band

• Turbine Exducer: 70mm

• Turbine A/R: 1.07

• Turbine Outlet: 3.00 in V-Band

• Horsepower Rating: 875–1010 HP

• Weight: 6.43 kg / 14.17 lbs

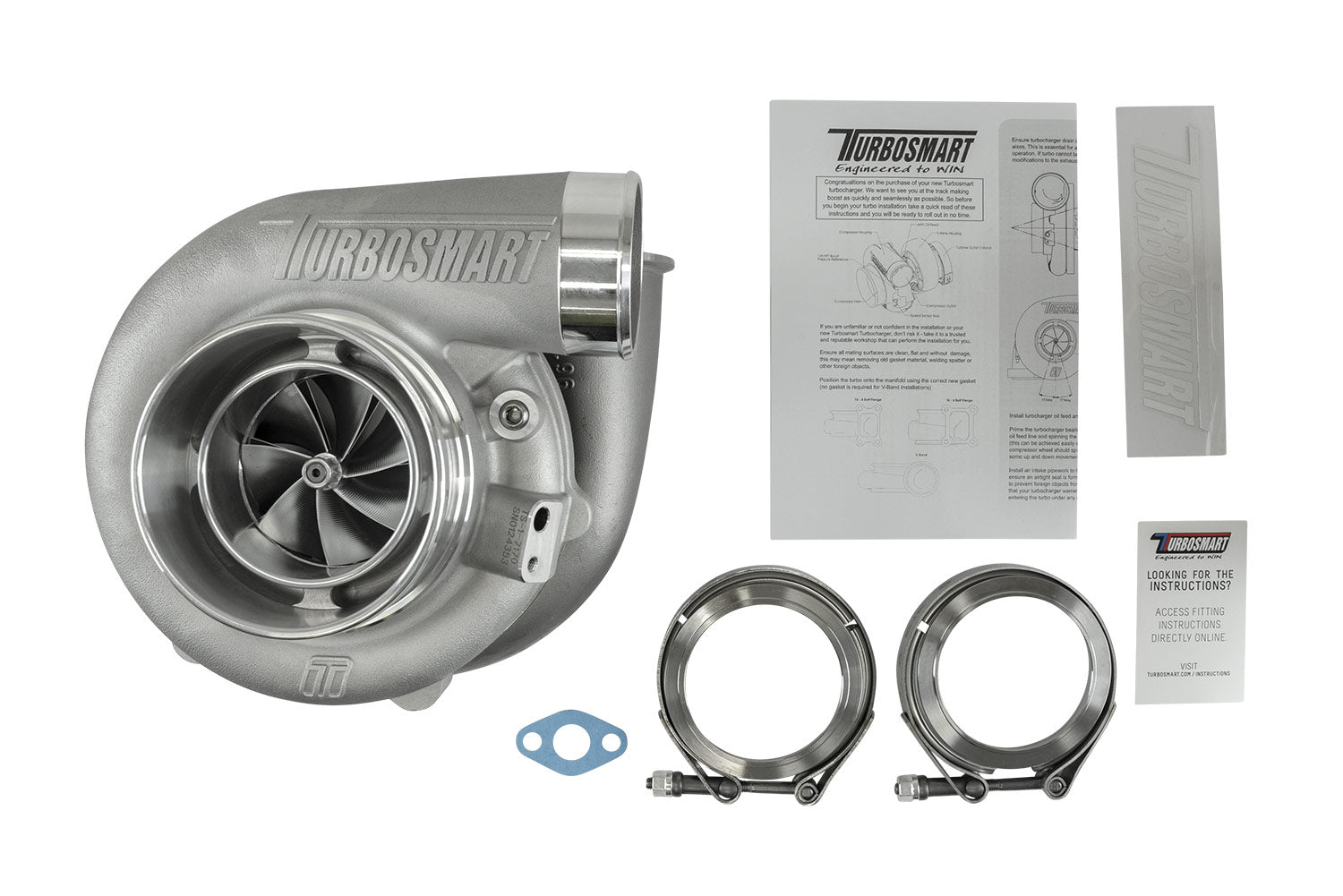

What’s Included

• Turbosmart TS-1 7170 Kompact Performance Turbocharger

• Turbine inlet weld flange

• Turbine outlet weld flange

• (2) V-band clamps (inlet and outlet)

• Water feed fitting kit

• Oil drain gasket

Installation Notes

• Universal turbocharger – custom mounting and exhaust fabrication required

• External wastegate required (sold separately)

• Professional installation recommended

Why Choose Turbosmart?

Turbosmart is a globally respected leader in forced-induction and boost-control technology. Every TS-1 turbocharger is engineered with an engine-focused design philosophy to deliver reduced back pressure, fast response, and repeatable performance for demanding street and motorsport builds.
