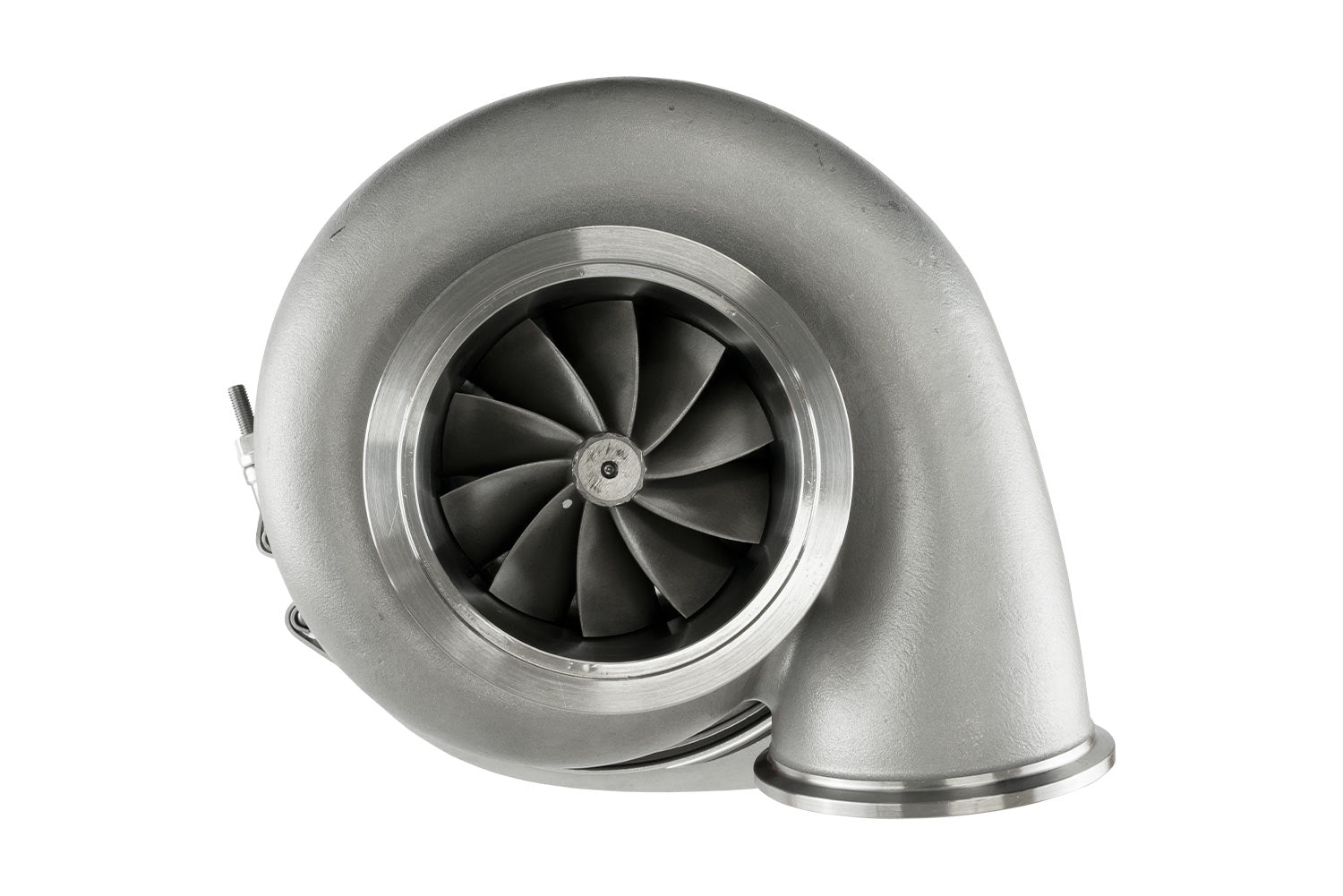

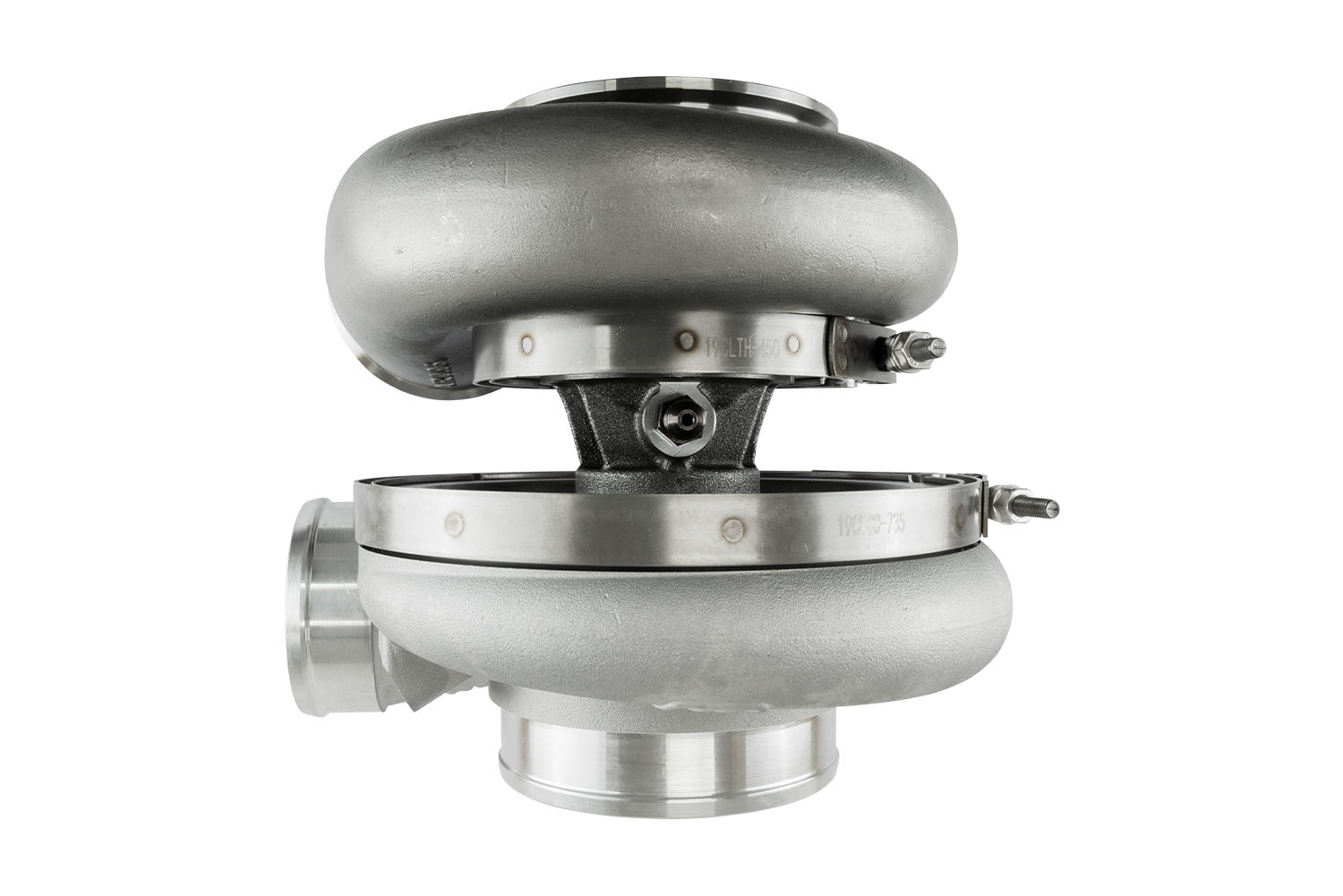

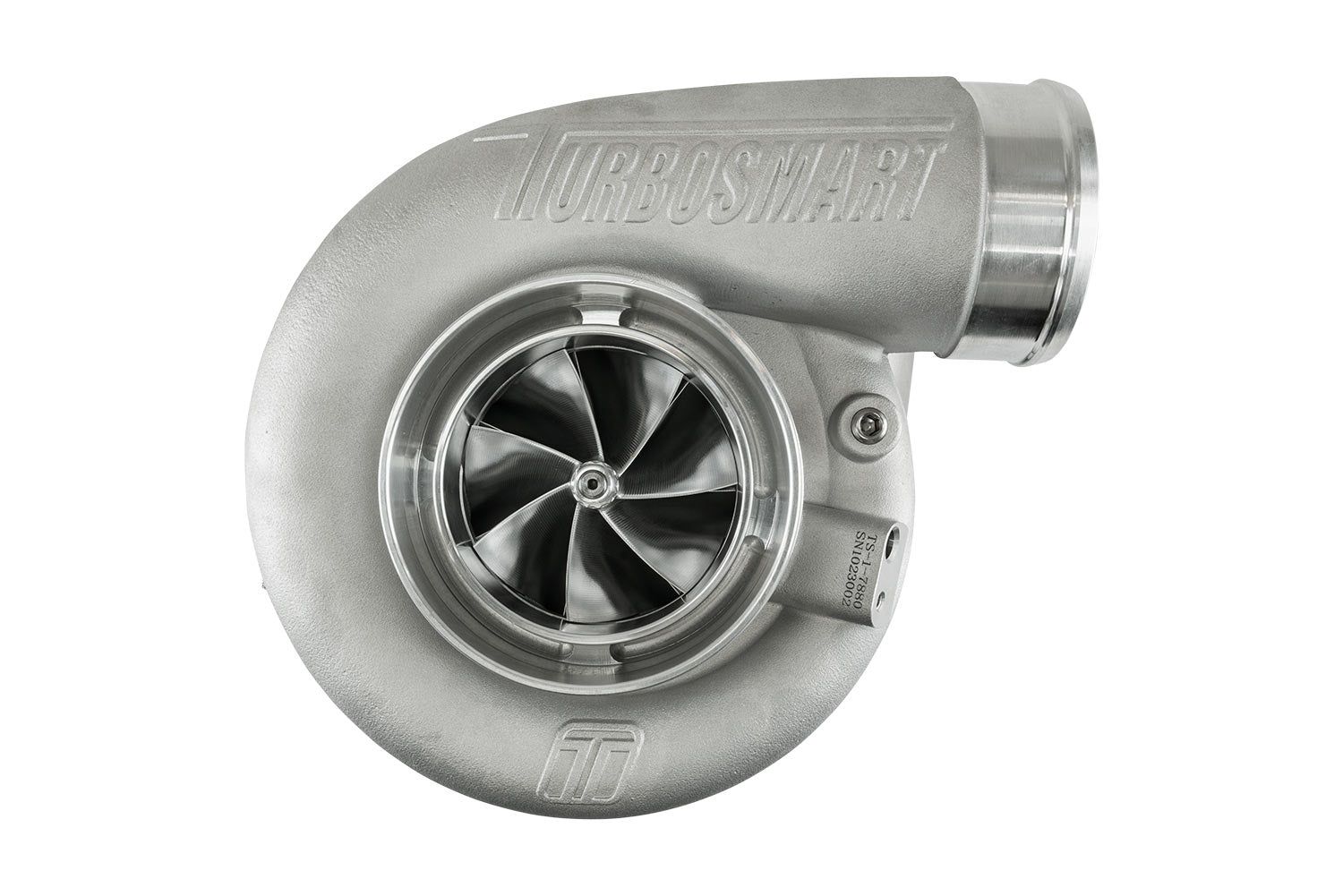

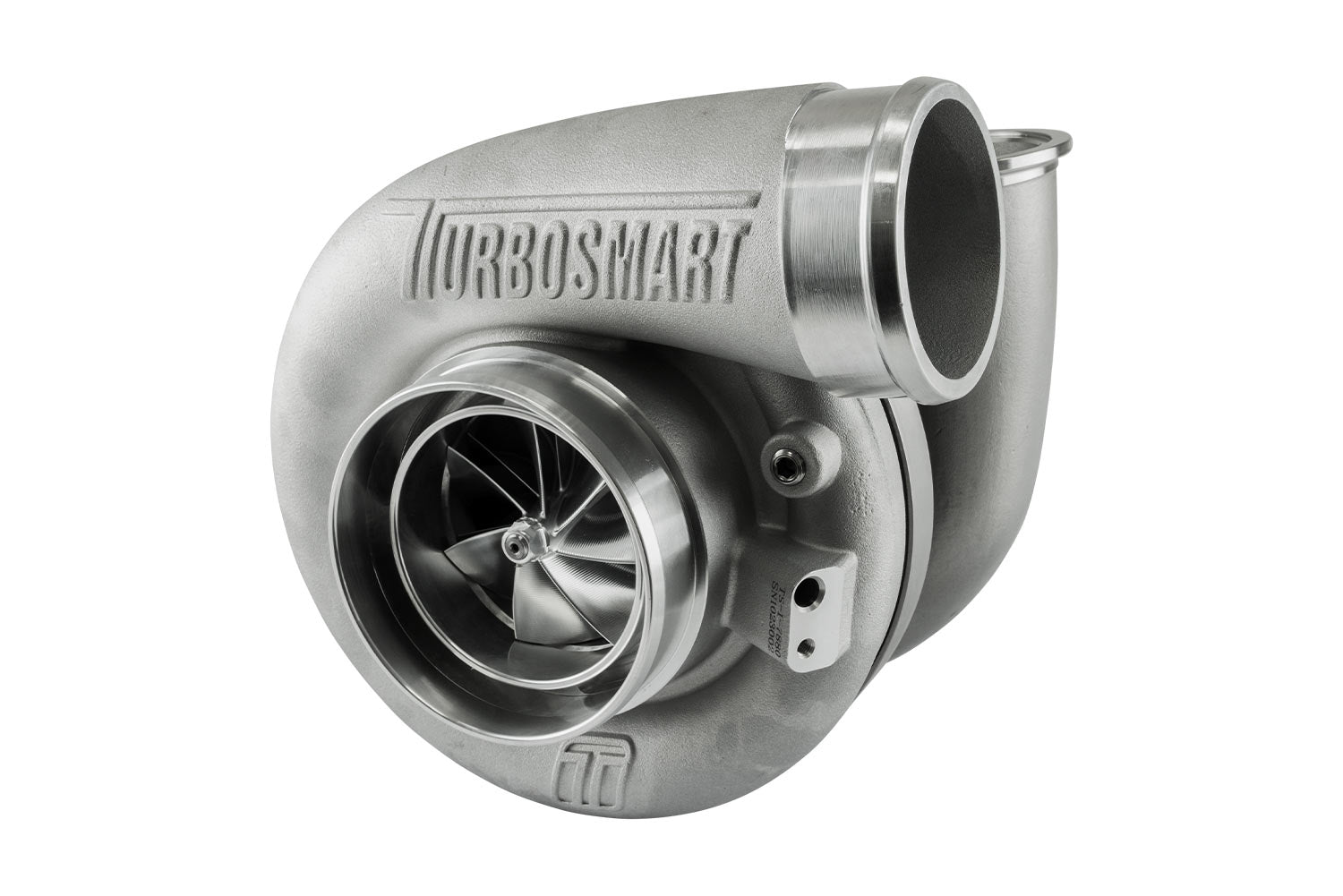

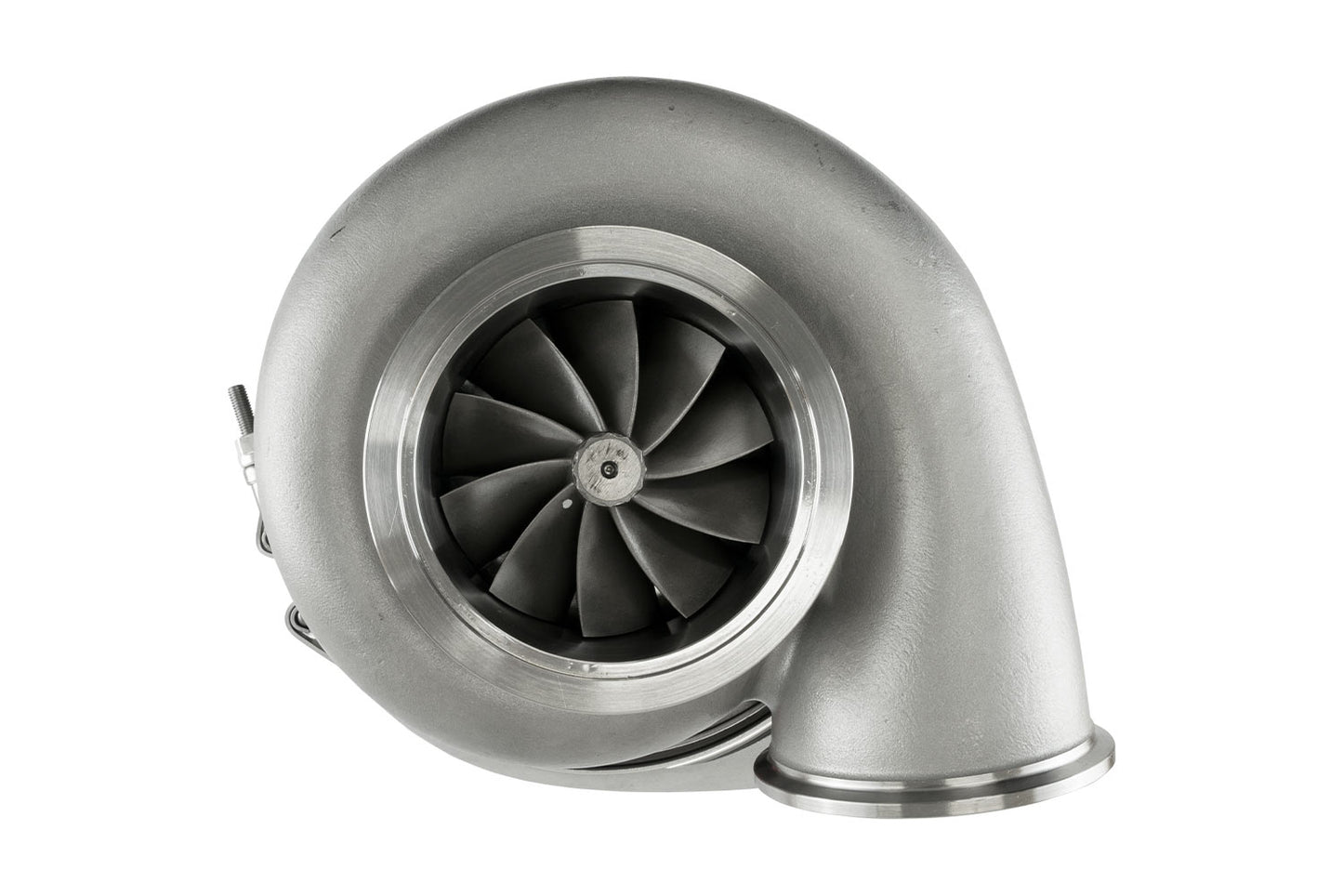

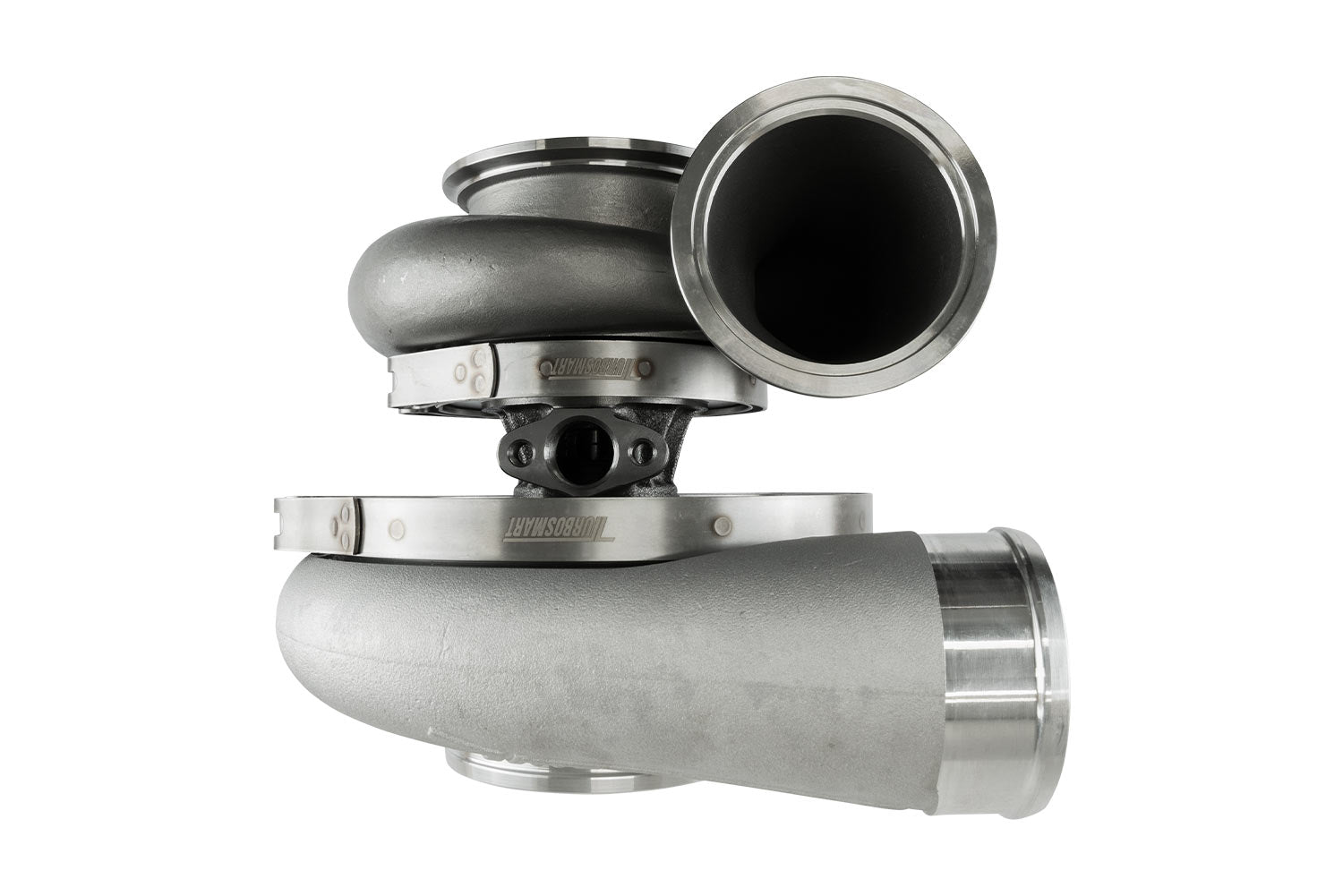

Turbosmart TS-1 Performance Turbocharger 7880 V-Band 0.96 A/R – Externally Wastegated

The Turbosmart TS-1 7880 Performance Turbocharger (V-Band 0.96 A/R) is engineered for extreme horsepower applications where fast response, high flow, and durability are critical. Designed using advanced CFD modeling, modern materials, and precision manufacturing techniques, the TS-1 series delivers a smaller, lighter, and faster-responding turbocharger without compromising top-end power.

This externally wastegated V-band inlet configuration provides improved exhaust flow, reduced back pressure, and easier packaging compared to traditional flanged housings—making it ideal for high-end street, drag, roll racing, and motorsport builds. Turbosmart’s proprietary dual ceramic bearing and ultra-low rotating mass shaft assembly are paired with aggressive compressor aerodynamics to deliver exceptional transient response at lower shaft speeds while maintaining strong performance under high load and flow conditions.

Every TS-1 turbocharger is supplied with essential installation hardware, including weld flanges, V-band clamps, and oil fittings, ensuring a premium, installation-ready solution backed by Turbosmart’s proven engineering and global motorsport pedigree.

Key Features & Benefits

• Exceptional transient response with ultra-low rotating mass

• Aggressive 7+7 splitter compressor wheel design

• 2618 aluminum compressor wheel for high strength and efficiency

• Lightweight 310S stainless steel investment-cast turbine housing

• Lightweight aluminum compressor cover

• CFD-optimized housings for ideal A/R and airflow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced for smooth, reliable operation

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Technical Specifications

• Turbo Series: TS-1

• Cooling: Oil-cooled

• Wastegate Type: Externally wastegated

• Compressor Inlet: 4.00 in (101.6mm)

• Compressor Inducer: 78mm

• Turbine Inlet: 3.00 in V-Band

• Turbine Exducer: 80mm

• Turbine A/R: 0.96

• Turbine Outlet: 3.50 in V-Band

• Horsepower Rating: 1140–1350 HP

• Weight: 9.63 kg / 21.23 lbs

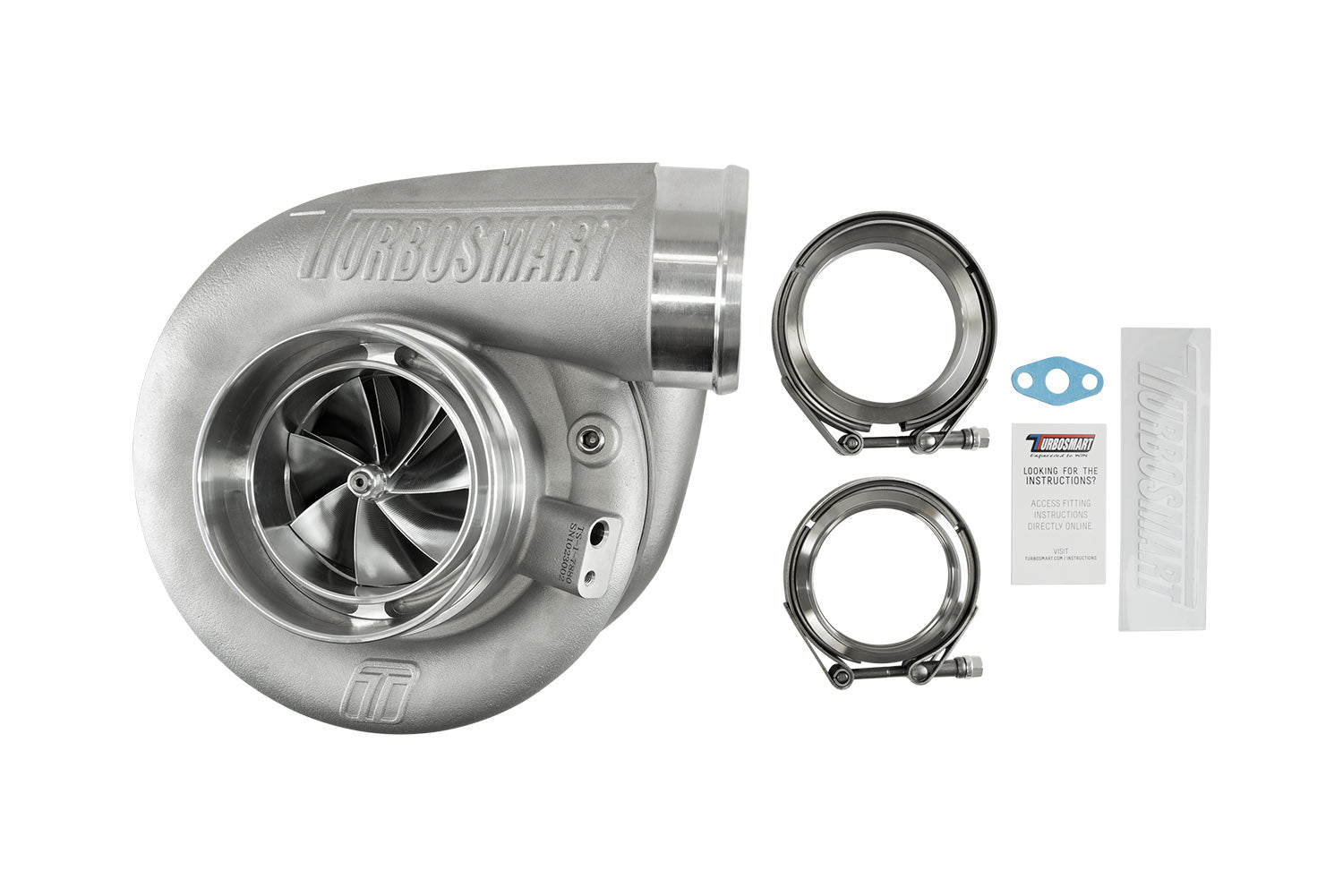

What’s Included

• Turbosmart TS-1 7880 Performance Turbocharger

• Turbine inlet weld flange

• Turbine outlet weld flange

• (2) V-band clamps (inlet and outlet)

• Oil drain gasket

Installation Notes

• Universal turbocharger – custom mounting and exhaust fabrication required

• External wastegate required (sold separately)

• Professional installation recommended

Why Choose Turbosmart?

Turbosmart is a globally trusted leader in forced-induction and boost-control technology. With a relentless focus on airflow efficiency, reduced back pressure, and rapid response, Turbosmart turbochargers are built to deliver consistent, repeatable performance in the most demanding street and motorsport environments.
