Turbosmart TS-1 8280 Performance Turbocharger T4 1.24 A/R Externally Wastegated

The Turbosmart TS-1 8280 Performance Turbocharger is engineered for extreme horsepower applications where maximum airflow, reduced back pressure, and sustained high-load performance are critical. Utilizing advanced CFD-driven design, modern materials, and precision manufacturing techniques, the TS-1 series delivers a turbocharger that is smaller, lighter, and faster-responding than traditional large-frame alternatives—while maintaining exceptional durability.

This externally wastegated T4 1.24 A/R configuration is ideal for high-displacement engines, aggressive boost levels, and motorsport-focused builds that demand strong top-end power. Turbosmart’s proprietary dual ceramic bearing system and ultra-low rotating mass shaft assembly are paired with aggressive compressor aerodynamics to deliver impressive transient response for its size while maintaining strong efficiency at high shaft speeds and flow rates.

Every Turbosmart TS-1 turbocharger is supplied with essential installation hardware, including weld flanges, V-band clamps, and oil fittings, providing a premium, installation-ready solution backed by Turbosmart’s global motorsport pedigree.

Key Features & Benefits

• Designed for extreme high-horsepower applications

• Unparalleled transient response for its size

• Aggressive 7+7 splitter compressor wheel design

• 2618 aluminum compressor wheel for strength and efficiency

• Lightweight 310S stainless steel investment-cast turbine housing

• Lightweight aluminum compressor cover

• CFD-optimized housings for ideal A/R and exhaust flow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced for smooth, reliable operation

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Technical Specifications

• Turbo Series: TS-1

• Cooling: Oil-cooled

• Wastegate Type: Externally wastegated

• Compressor Inlet: 4.00 in (101.6mm)

• Compressor Inducer: 82mm

• Turbine Inlet: T4

• Turbine Exducer: 80mm

• Turbine A/R: 1.24

• Turbine Outlet: 3.50 in V-Band

• Horsepower Rating: 1225–1445 HP

• Weight: 9.63 kg / 21.23 lbs

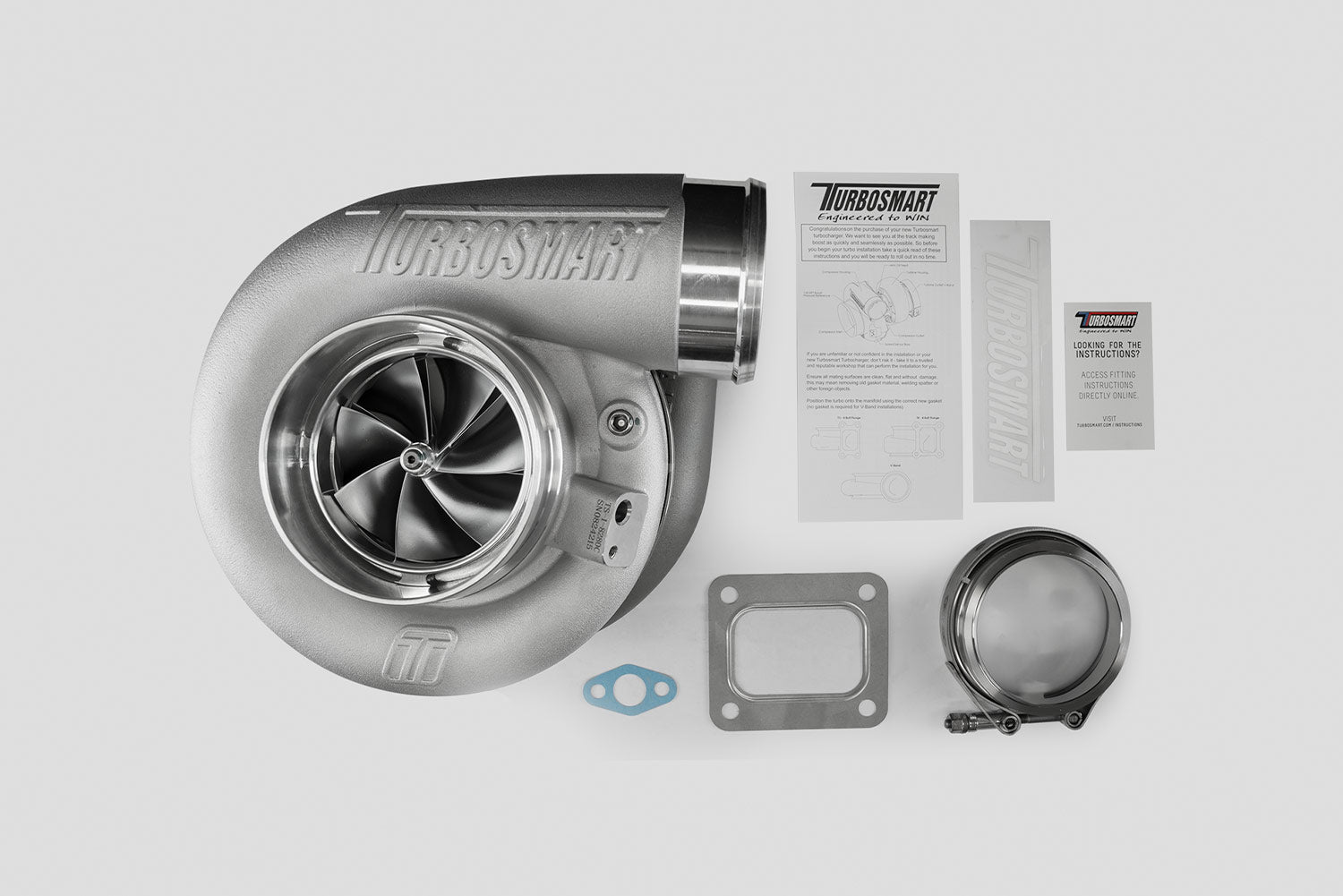

What’s Included

• Turbosmart TS-1 8280 Performance Turbocharger

• Turbine outlet weld flange

• Turbine outlet V-band clamp

• Oil drain gasket

Installation Notes

• Universal turbocharger – custom mounting and exhaust fabrication required

• External wastegate required (sold separately)

• Professional installation recommended

Why Choose Turbosmart?

Turbosmart is a globally trusted leader in forced-induction and boost-control technology. Every TS-1 turbocharger is engineered with an engine-focused design philosophy to deliver reduced back pressure, fast response, and repeatable performance for the most demanding street, race, and motorsport builds.
