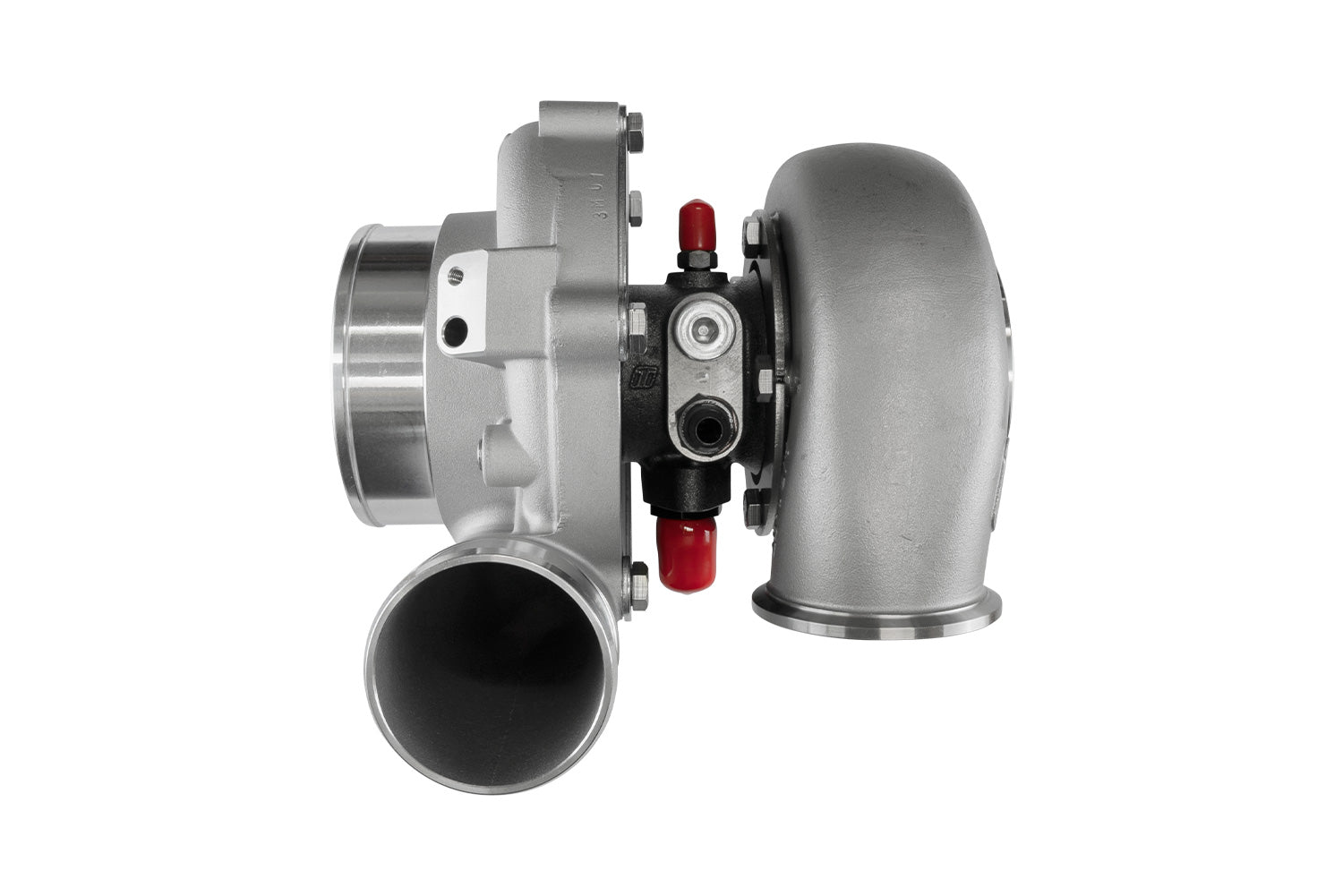

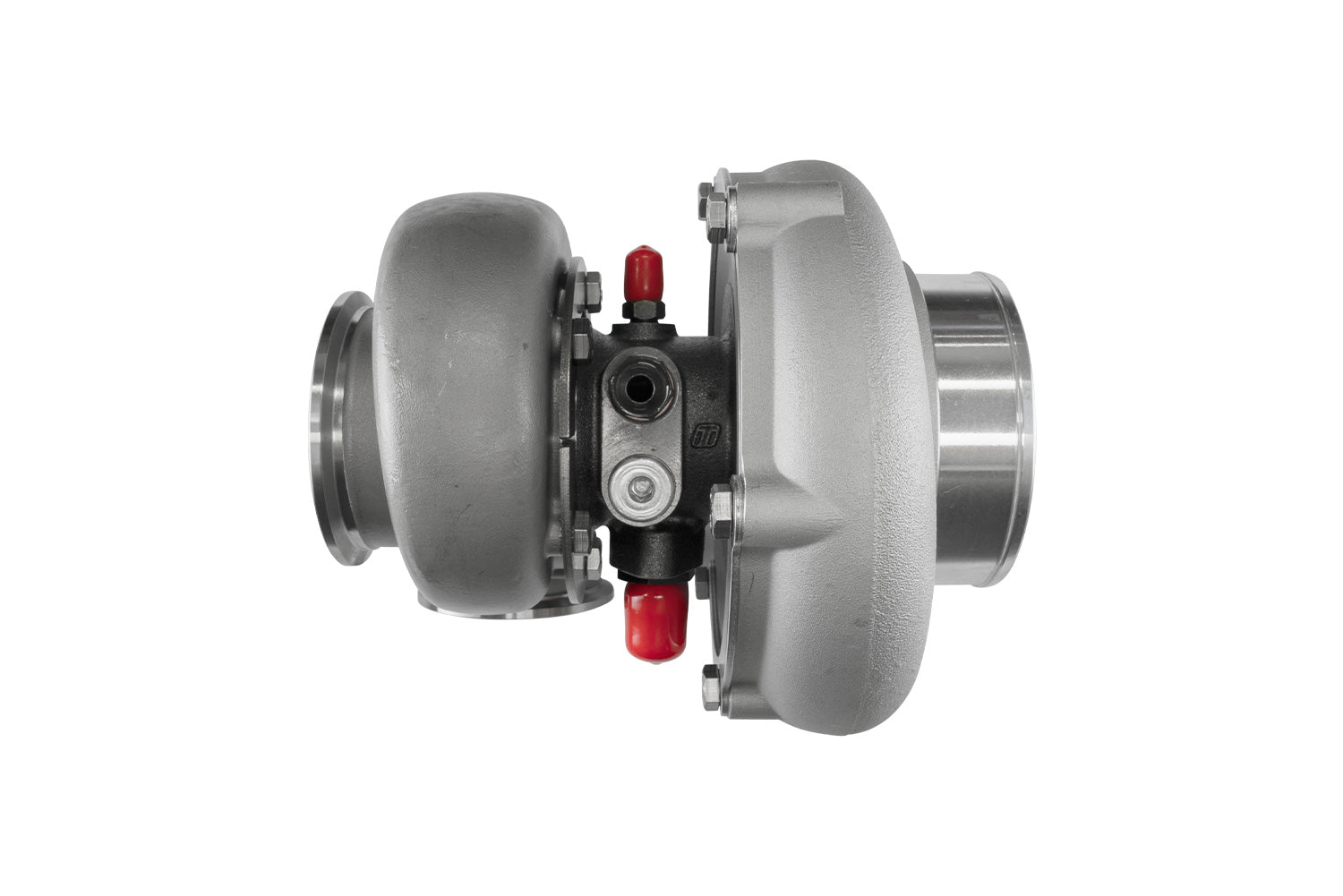

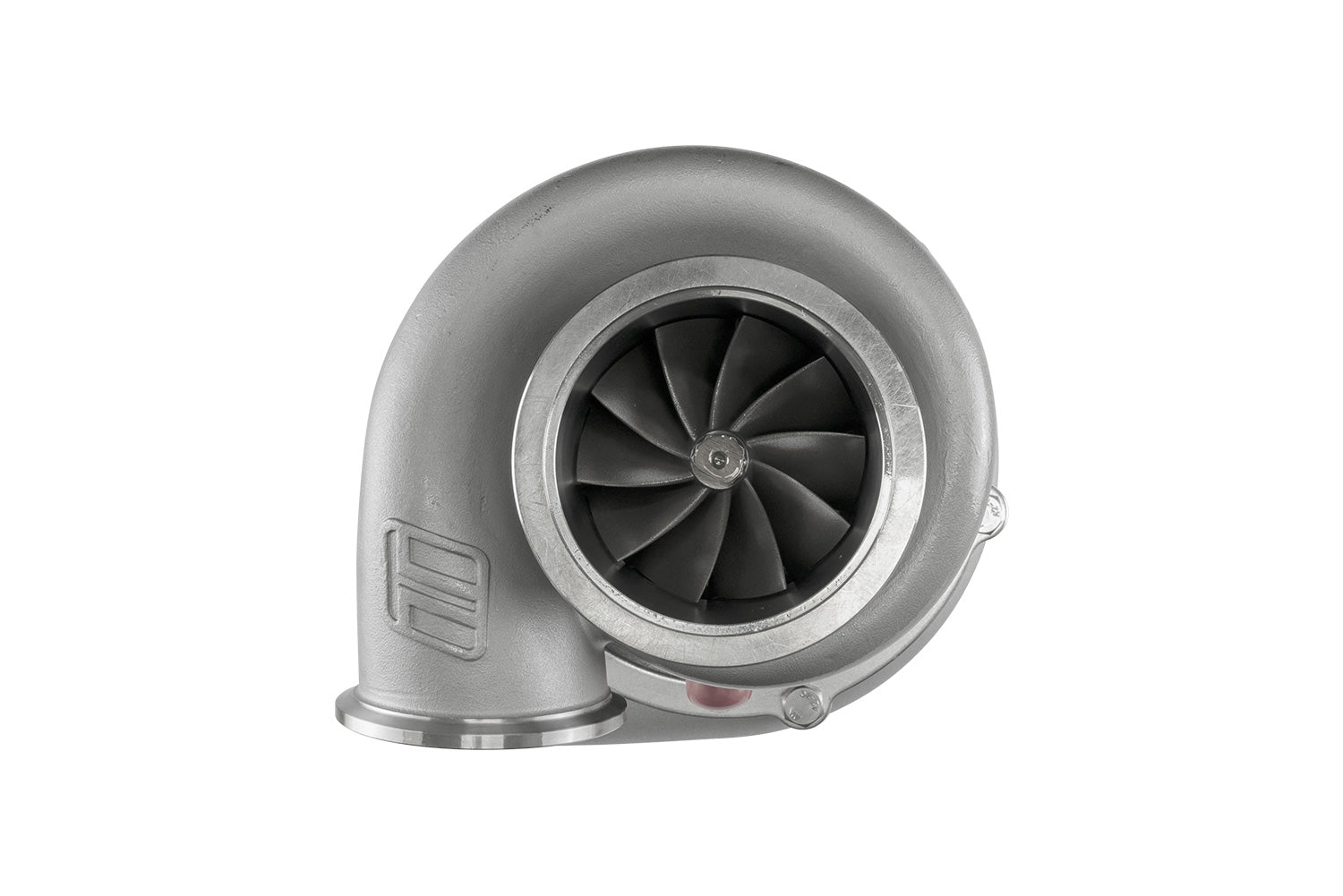

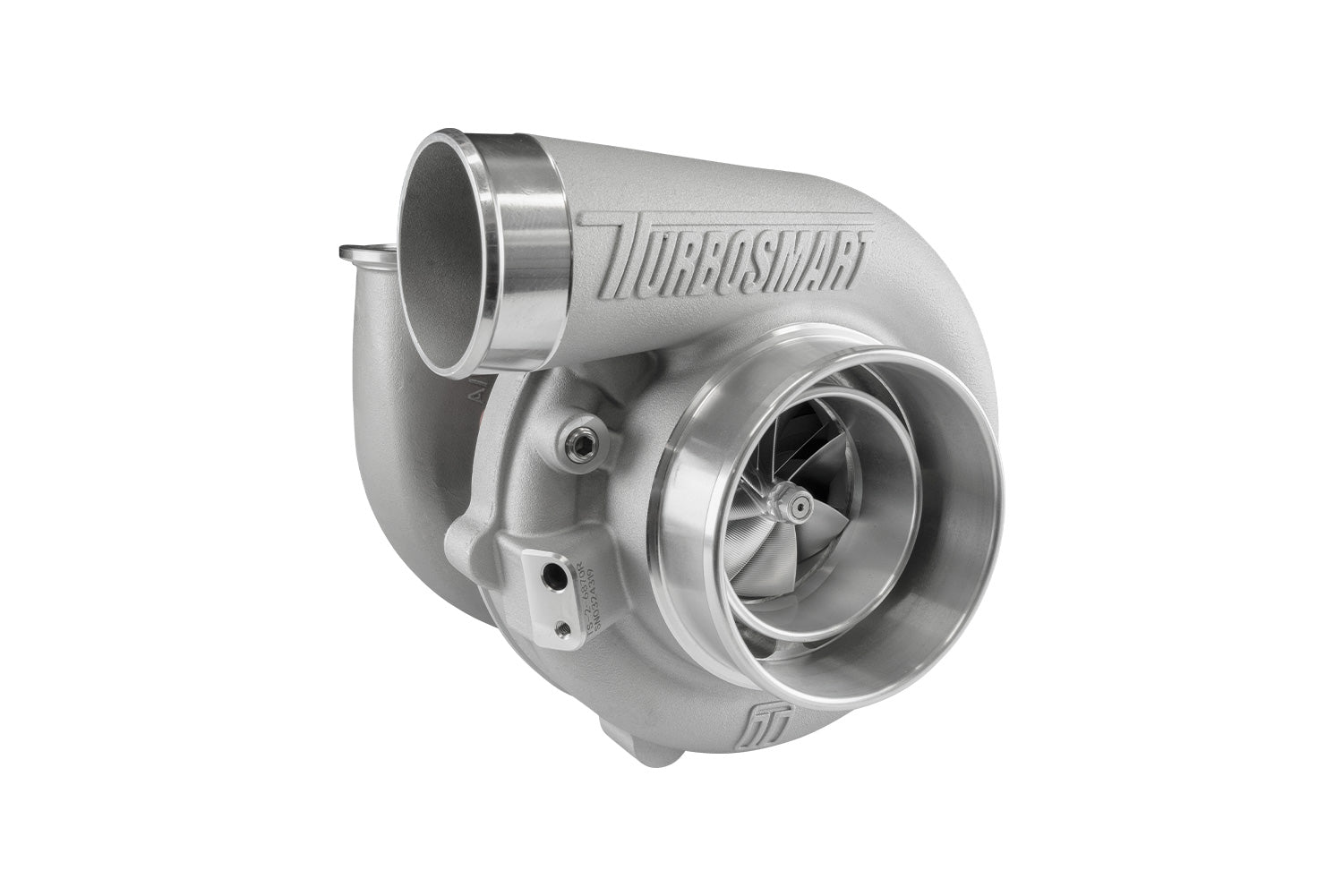

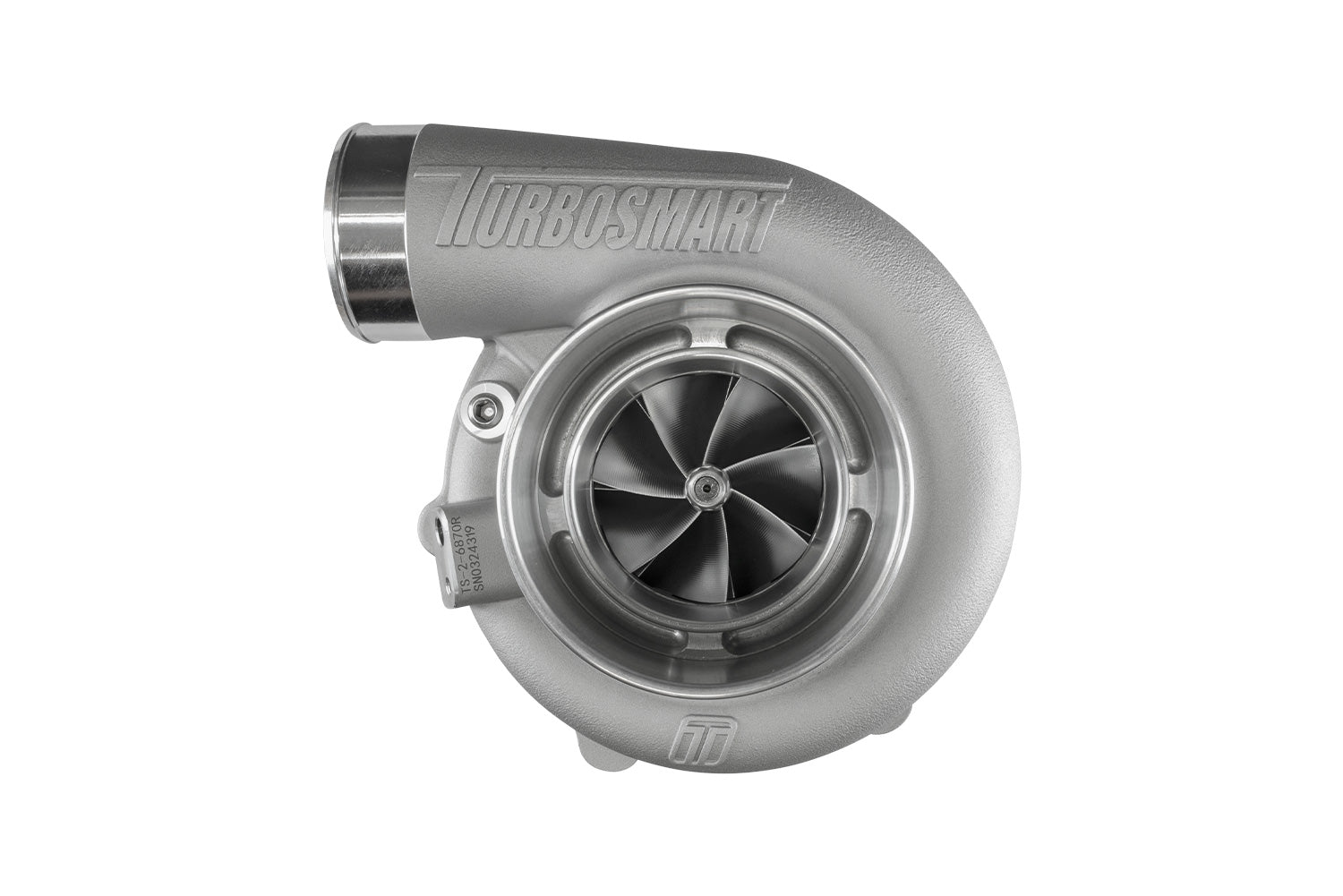

Turbosmart TS-2 6870 Kompact Reverse Rotation Turbocharger V-Band 1.07 A/R Externally Wastegated

The Turbosmart TS-2 6870 Kompact Reverse Rotation Turbocharger is engineered for high-performance street and motorsport builds requiring compact packaging, efficient exhaust flow, and reliable high-horsepower capability. Built using modern materials, CFD-driven aerodynamics, and precision manufacturing, the TS-2 series delivers exceptional transient response while maintaining durability under sustained high load.

This externally wastegated V-band reverse-rotation 1.07 A/R configuration is ideal for custom layouts where traditional turbo orientation is not feasible. Featuring both oil and water cooling, the TS-2 series provides enhanced thermal control for demanding applications. Turbosmart’s proprietary dual ceramic bearing system and ultra-low rotating mass shaft assembly work together with aggressive compressor aerodynamics to deliver fast spool, strong midrange response, and consistent power at higher shaft speeds.

Each TS-2 turbocharger is supplied with comprehensive installation hardware—including weld flanges, V-band clamps, oil fittings, and water line fittings—making it a premium, installation-ready solution backed by Turbosmart’s global motorsport reputation.

Key Features & Benefits

• Reverse-rotation design for custom turbo layouts

• Kompact housing for improved packaging and reduced weight

• Exceptional transient response and fast spool characteristics

• Aggressive 7+7 splitter compressor wheel design

• 2618 aluminum compressor wheel for strength and efficiency

• Lightweight 310S stainless steel investment-cast turbine housing

• Lightweight aluminum compressor cover

• CFD-optimized housings for ideal A/R and airflow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced for smooth, reliable operation

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Technical Specifications

• Turbo Series: TS-2

• Cooling: Oil & Water-cooled

• Wastegate Type: Externally wastegated

• Rotation: Reverse rotation

• Compressor Inlet: 4.00 in (101.6mm)

• Compressor Inducer: 68mm

• Turbine Inlet: 2.25 in V-Band

• Turbine Exducer: 70mm

• Turbine A/R: 1.07

• Turbine Outlet: 3.00 in V-Band

• Horsepower Rating: 850–990 HP

• Weight: 6.06 kg / 13.3 lbs

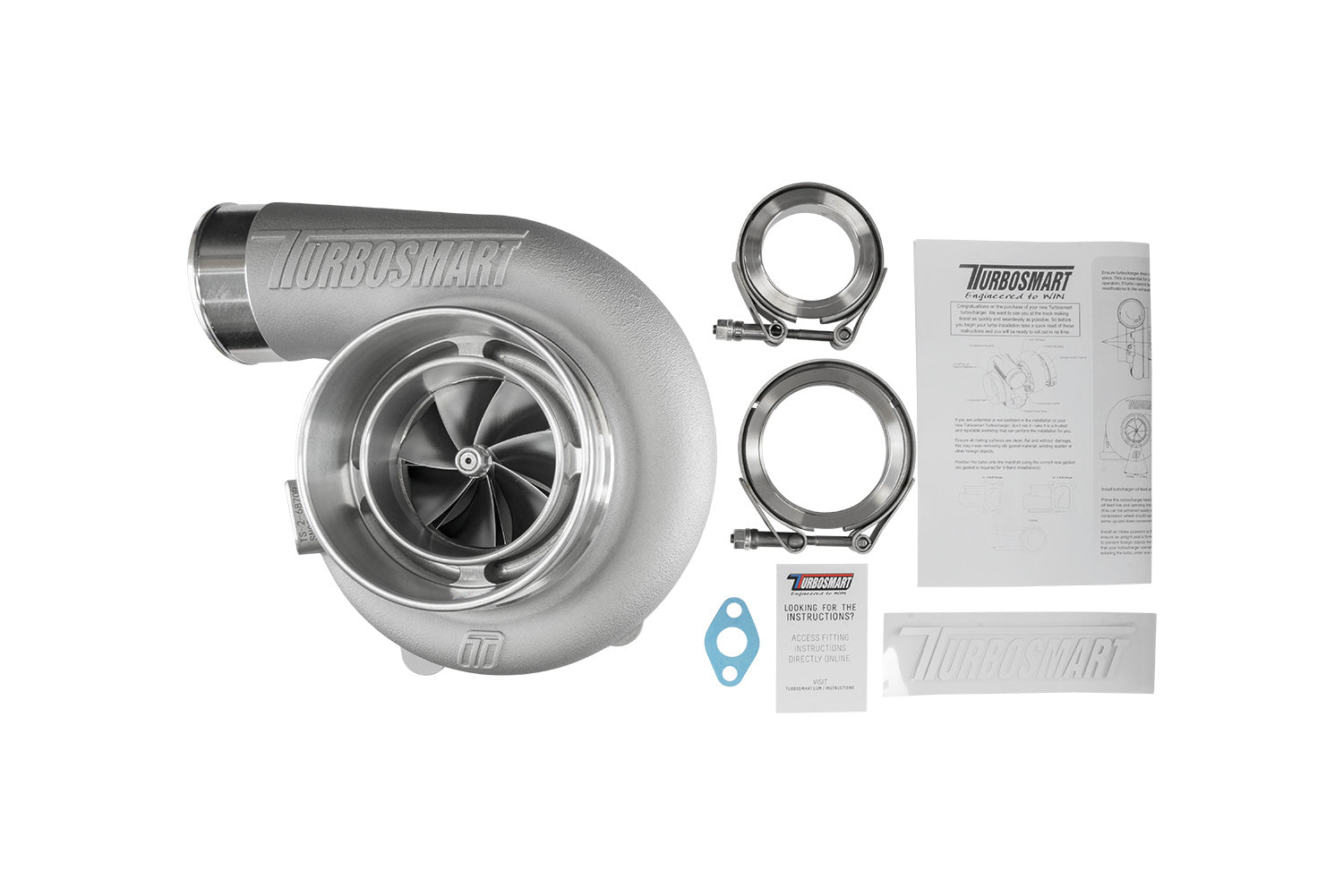

What’s Included

• Turbosmart TS-2 6870 Kompact Reverse Rotation Turbocharger

• (2) Weld flanges (turbine inlet & outlet)

• (2) V-band clamps (turbine inlet & outlet)

• Oil drain gasket

• Water line fitting kit

Installation Notes

• Universal turbocharger – custom mounting and exhaust fabrication required

• Reverse-rotation design must be confirmed before installation

• External wastegate required (sold separately)

• Professional installation recommended

Why Choose Turbosmart?

Turbosmart is a globally respected leader in forced-induction and boost-control technology. Designed with an engine end-to-end philosophy, TS-2 turbochargers deliver reduced back pressure, fast response, and repeatable performance for serious street and motorsport applications.
