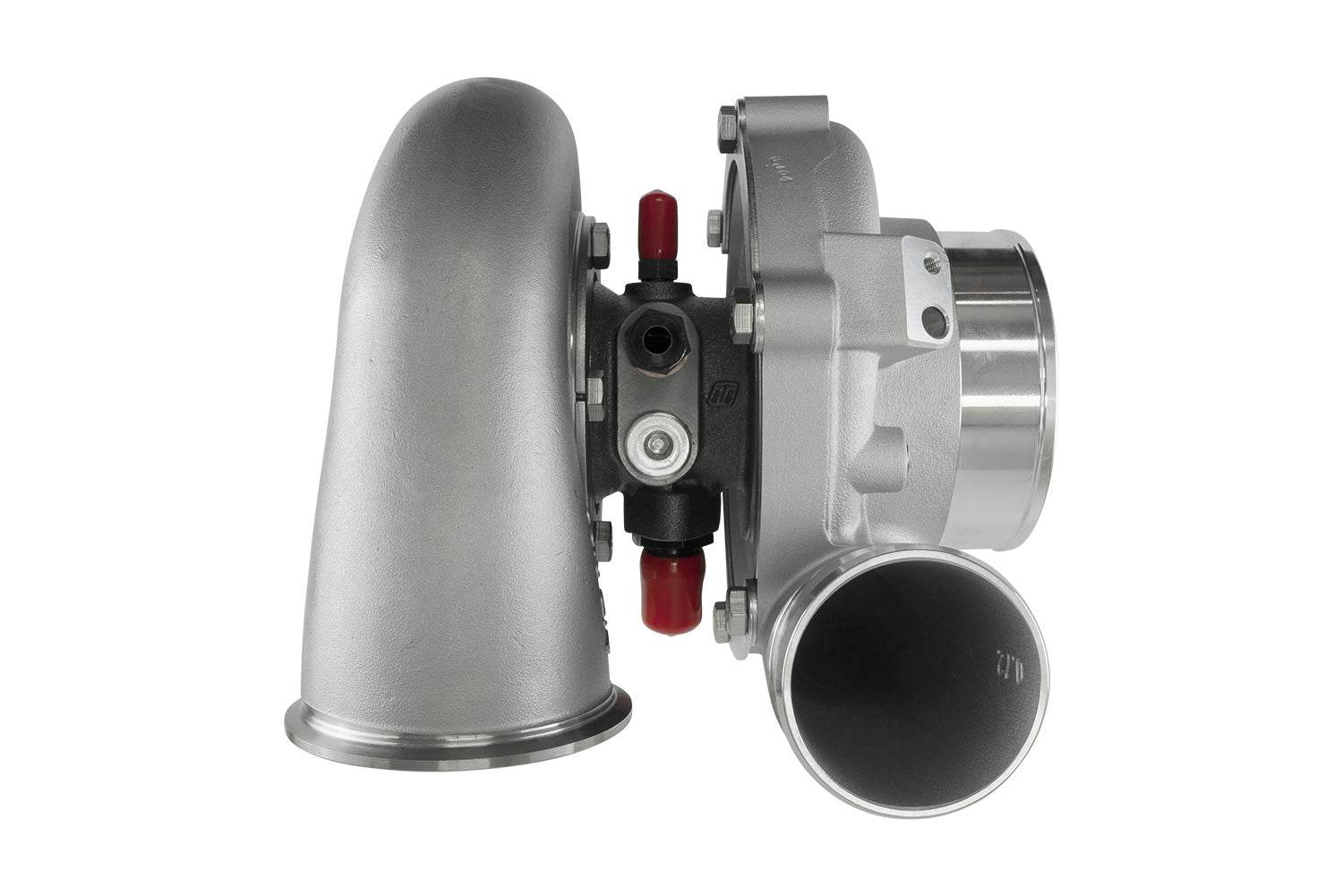

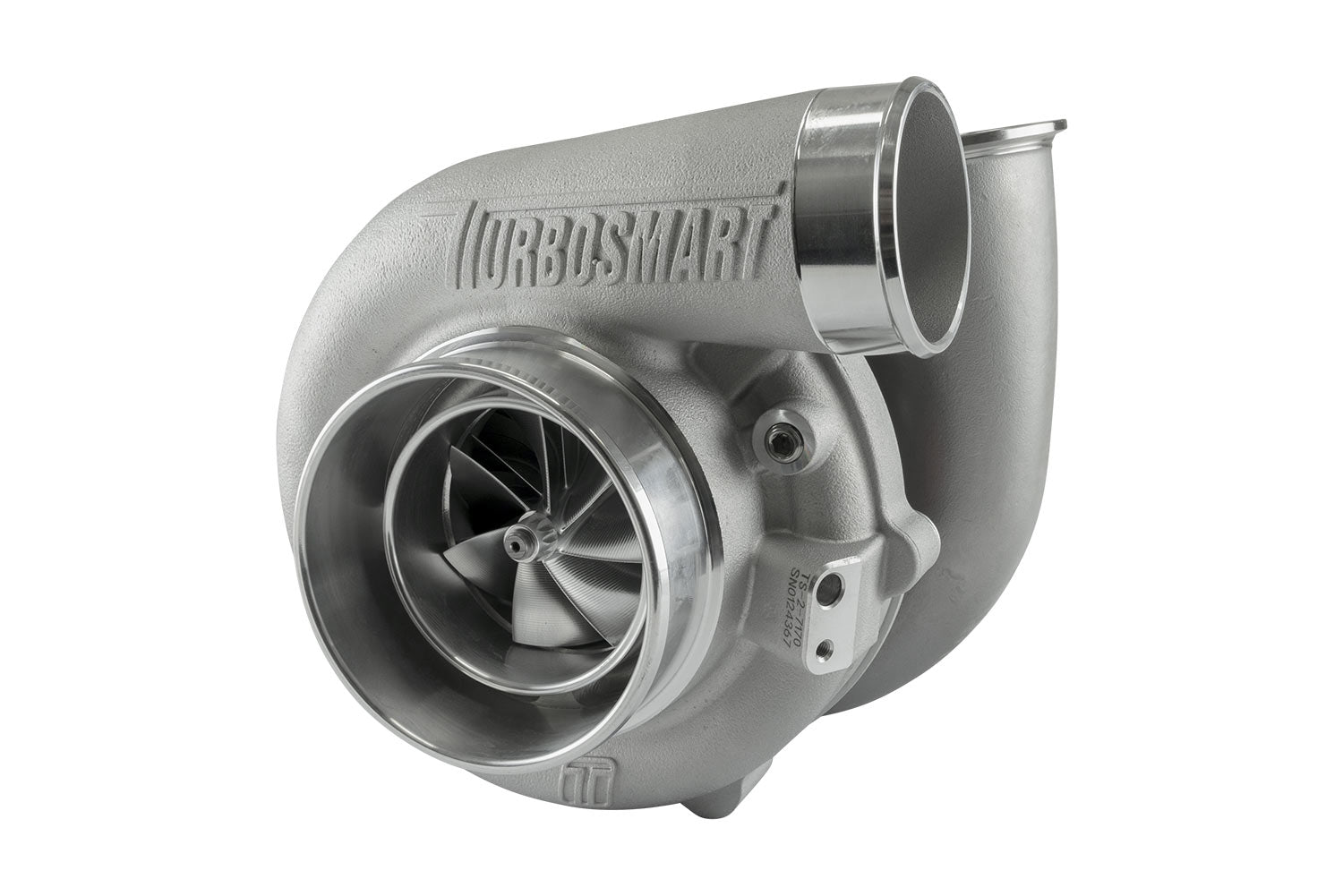

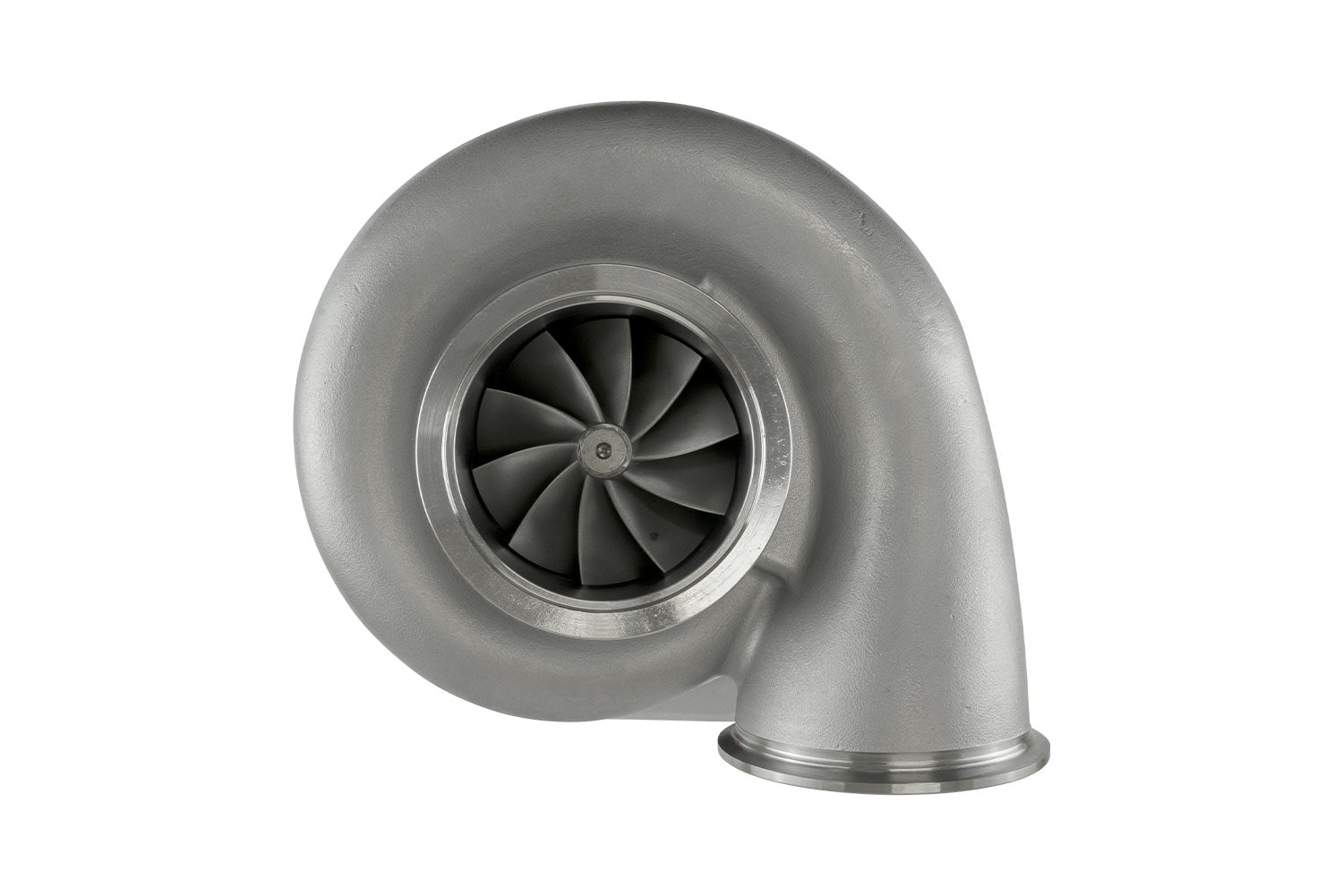

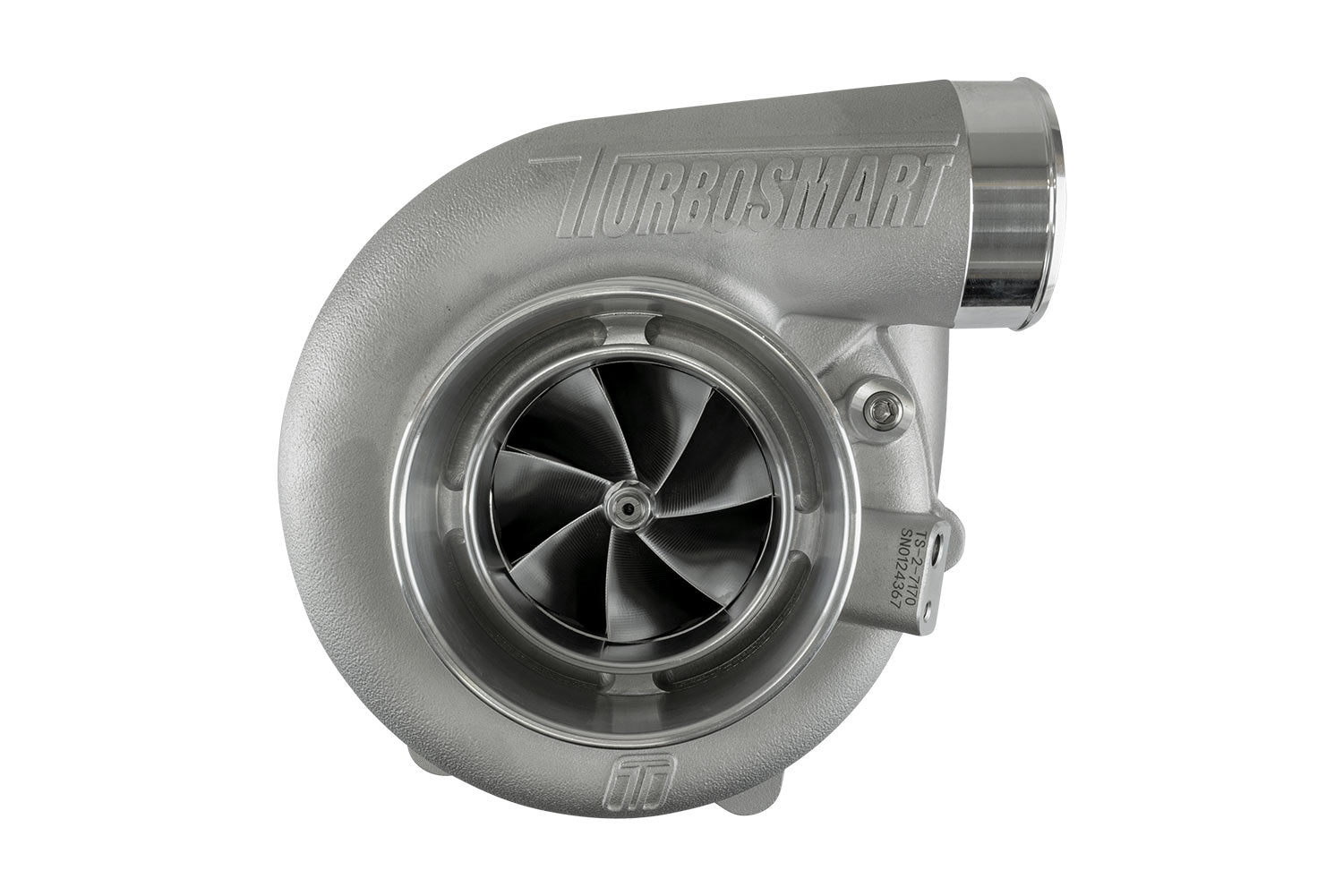

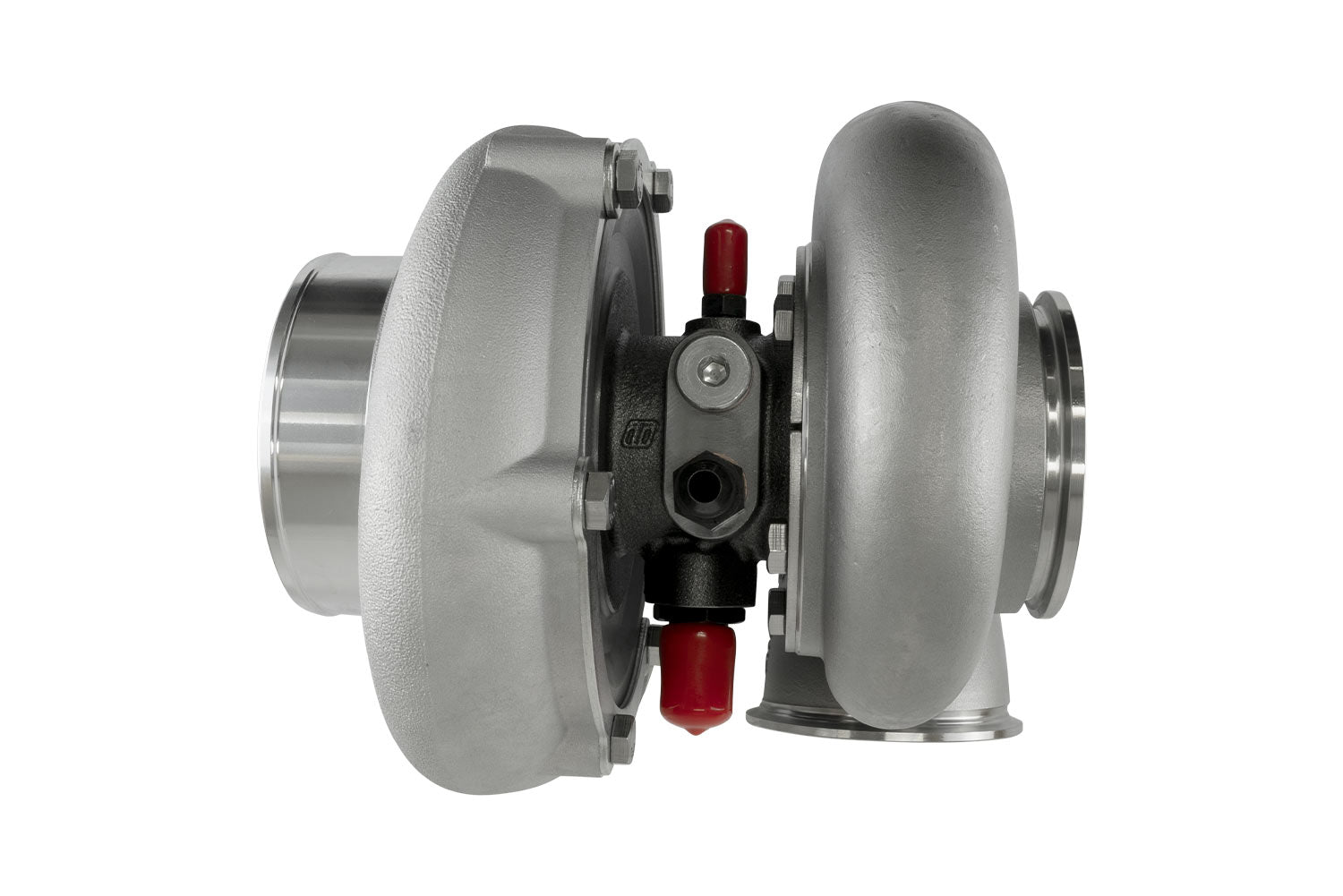

Turbosmart TS-2 7170 Kompact Performance Turbocharger V-Band 1.07 A/R Externally Wastegated

The Turbosmart TS-2 7170 Kompact Performance Turbocharger is designed for high-performance street and motorsport builds that demand fast response, compact packaging, and reliable horsepower capability. Developed using advanced CFD-driven aerodynamics and modern manufacturing techniques, the TS-2 series delivers a turbocharger that is smaller, lighter, and faster-responding while maintaining durability under sustained high load.

This externally wastegated V-band 1.07 A/R configuration provides excellent exhaust flow and installation flexibility, making it ideal for tight engine bays and high-boost applications. Featuring oil and water cooling, the TS-2 series offers improved thermal control compared to oil-only designs. Turbosmart’s proprietary dual ceramic bearing system and ultra-low rotating mass shaft assembly work together with aggressive compressor aerodynamics to deliver rapid spool, strong midrange torque, and consistent top-end power.

Each TS-2 turbocharger includes comprehensive installation hardware, including weld flanges, V-band clamps, and oil and water fittings—providing a premium, installation-ready solution backed by Turbosmart’s global motorsport reputation.

Key Features & Benefits

• Kompact design for improved packaging and reduced weight

• Exceptional transient response and fast spool characteristics

• Oil & water-cooled center housing for improved thermal control

• Aggressive 7+7 splitter compressor wheel design

• 2618 aluminum compressor wheel for strength and efficiency

• Lightweight 310S stainless steel investment-cast turbine housing

• Lightweight aluminum compressor cover

• CFD-optimized housings for ideal A/R and airflow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced for smooth, reliable operation

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Technical Specifications

• Turbo Series: TS-2

• Cooling: Oil & Water-cooled

• Wastegate Type: Externally wastegated

• Compressor Inlet: 4.00 in (101.6mm)

• Compressor Inducer: 71mm

• Turbine Inlet: 2.25 in V-Band

• Turbine Exducer: 70mm

• Turbine A/R: 1.07

• Turbine Outlet: 3.00 in V-Band

• Horsepower Rating: 875–1010 HP

• Weight: 6.06 kg / 13.3 lbs

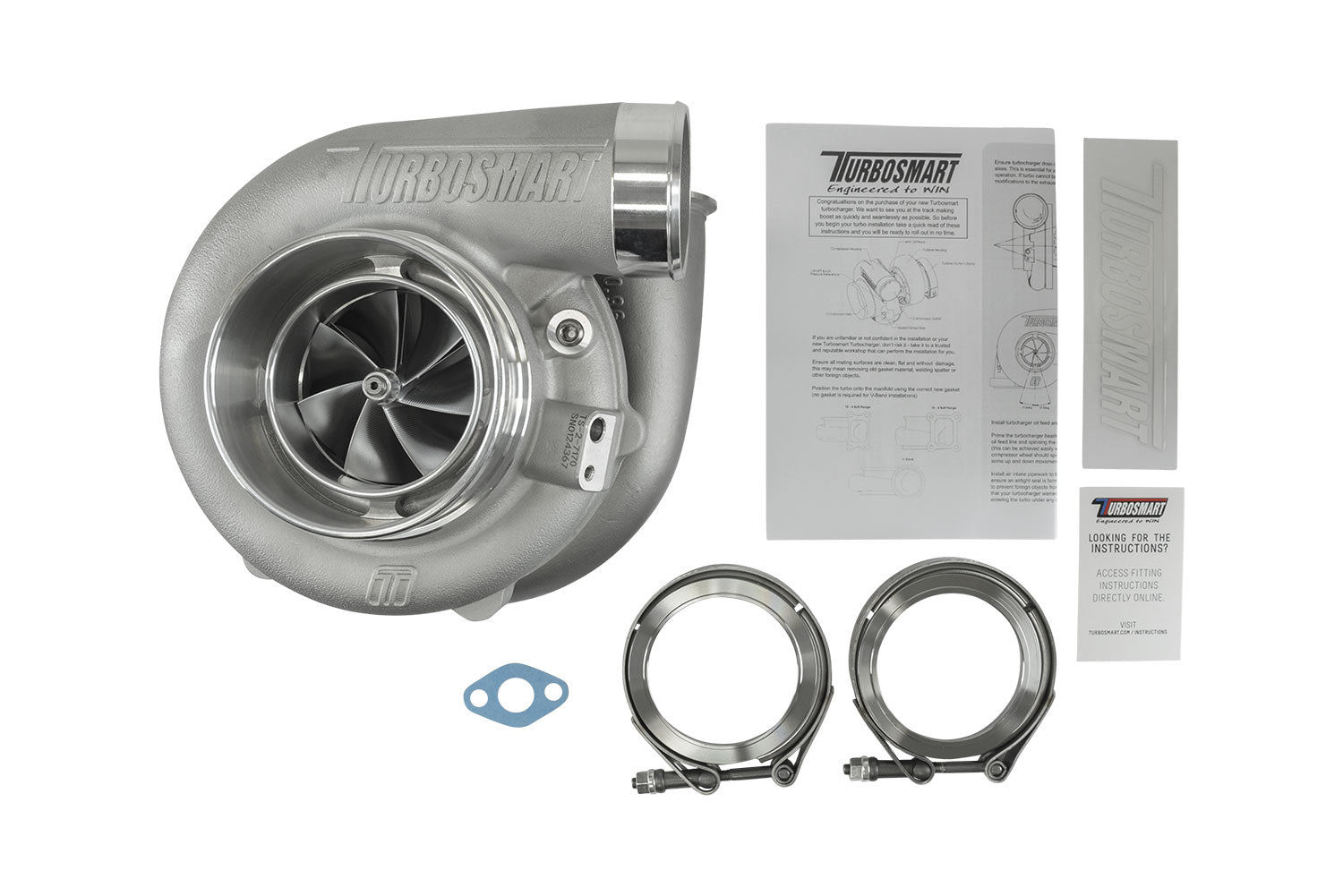

What’s Included

• Turbosmart TS-2 7170 Kompact Performance Turbocharger

• (2) Weld flanges (turbine inlet & outlet)

• (2) V-band clamps (turbine inlet & outlet)

• Oil drain gasket

• Water line fitting kit

Installation Notes

• Universal turbocharger – custom mounting and exhaust fabrication required

• External wastegate required (sold separately)

• Professional installation recommended

Why Choose Turbosmart?

Turbosmart is a globally respected leader in forced-induction and boost-control technology. Designed with an engine end-to-end philosophy, TS-2 turbochargers deliver reduced back pressure, fast response, and repeatable performance for demanding street and motorsport applications.
