  • Turbosmart GenV HyperGate45 14psi External Wastegate, Purple - TS-0553-1013
-23%

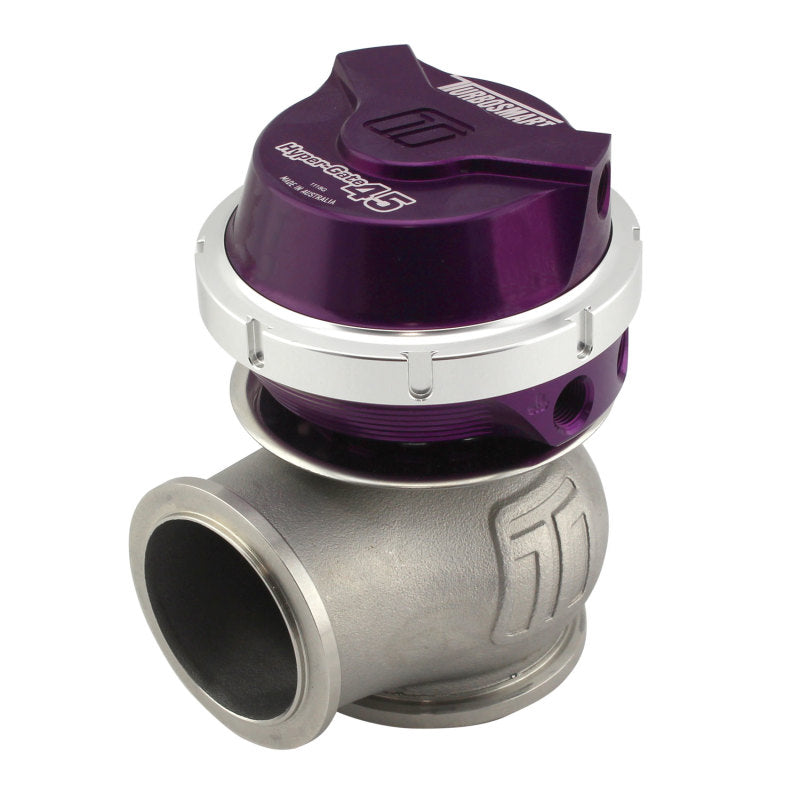

Turbosmart GenV HyperGate45 14psi External Wastegate, Purple - TS-0553-1013
Click to zoom in
Load image into Gallery viewer, Turbosmart GenV HyperGate45 14psi External Wastegate, Purple - TS-0553-1013

Turbosmart GenV HyperGate45 14psi External Wastegate, Purple - TS-0553-1013

2 sold in last 8 hours
Turbosmart
TURTS-0553-1013
In stock
Wastegates
$580.31 $444.95
TS-0553-1013 The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended...

Turbosmart GenV HyperGate45 14psi External Wastegate, Purple - TS-0553-1013
Description
TS-0553-1013

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD is optimised and validated in-house for maximum flow and thermal management; the GenV Range has more features, options, and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red, Purple and Sleeper colours
Wastegate Position Sensor Optional Upgrade
Compressed Gas / Co2 Version
Motorsport / Extreme Temp Version
Electronically Actuated / eWG Version
High Pressure (Up to 50psi Base) Version

Features
Class Leading Thermal Performance
Class Leading CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Actuator Cooling
Optional Position Sensor Available Separately
Rotatable / Clock-able Actuator Housing
Nitronic 60 Valve Guide & High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps

Install

Installation

Data Sheet

SUPPLIED WITH
GenV Wastegate unit
All Springs Included
3.5.7.14psi (1 Inst. As per Description)
Locking Collar Tool
GenV SS316 Valve seat
Strap Type V-Bands
Inlet & Outlet Weld Flanges
Hose Tail & Blank Fitting Kit
Turbosmart Decal
