Turbosmart GenV 45mm External Wastegate - TS-0553-1502

Click to zoom in

Load image into Gallery viewer, Turbosmart GenV 45mm External Wastegate - TS-0553-1502

Turbosmart GenV 45mm External Wastegate - TS-0553-1502

Name: Turbosmart GenV 45mm External Wastegate - TS-0553-1502
Brand: Turbosmart
SKU: TURTS-0553-1502
Price: 974.95 USD
Availability: InStock

2 sold in last 8 hours

Brand: Turbosmart

SKU: TURTS-0553-1502

availability: In stock

Product Code: Wastegates

$1,269.94 $974.95

Turbosmart GenV Electronic HyperGate45 External Wastegate - TS-0553-1502 FeaturesClass Leading, CFD & Bench Validated Flow PerformanceNitronic 60 Valve Guide & High Temp 347 SS BodyLiquid Cooled, Electronic ActuatorStrap Type V-band...

Quantity

Quantity must be 1 or more

Description

Description

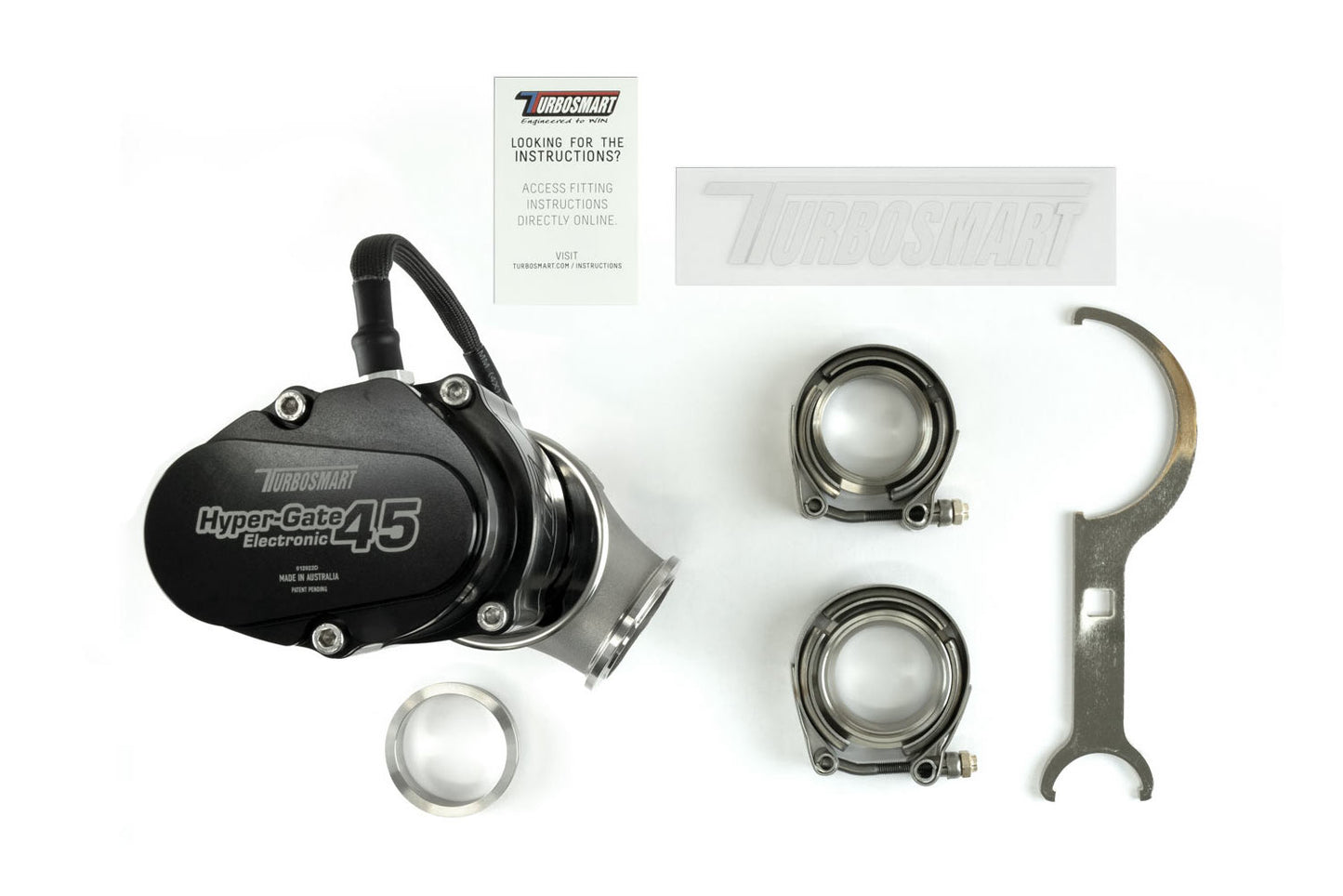

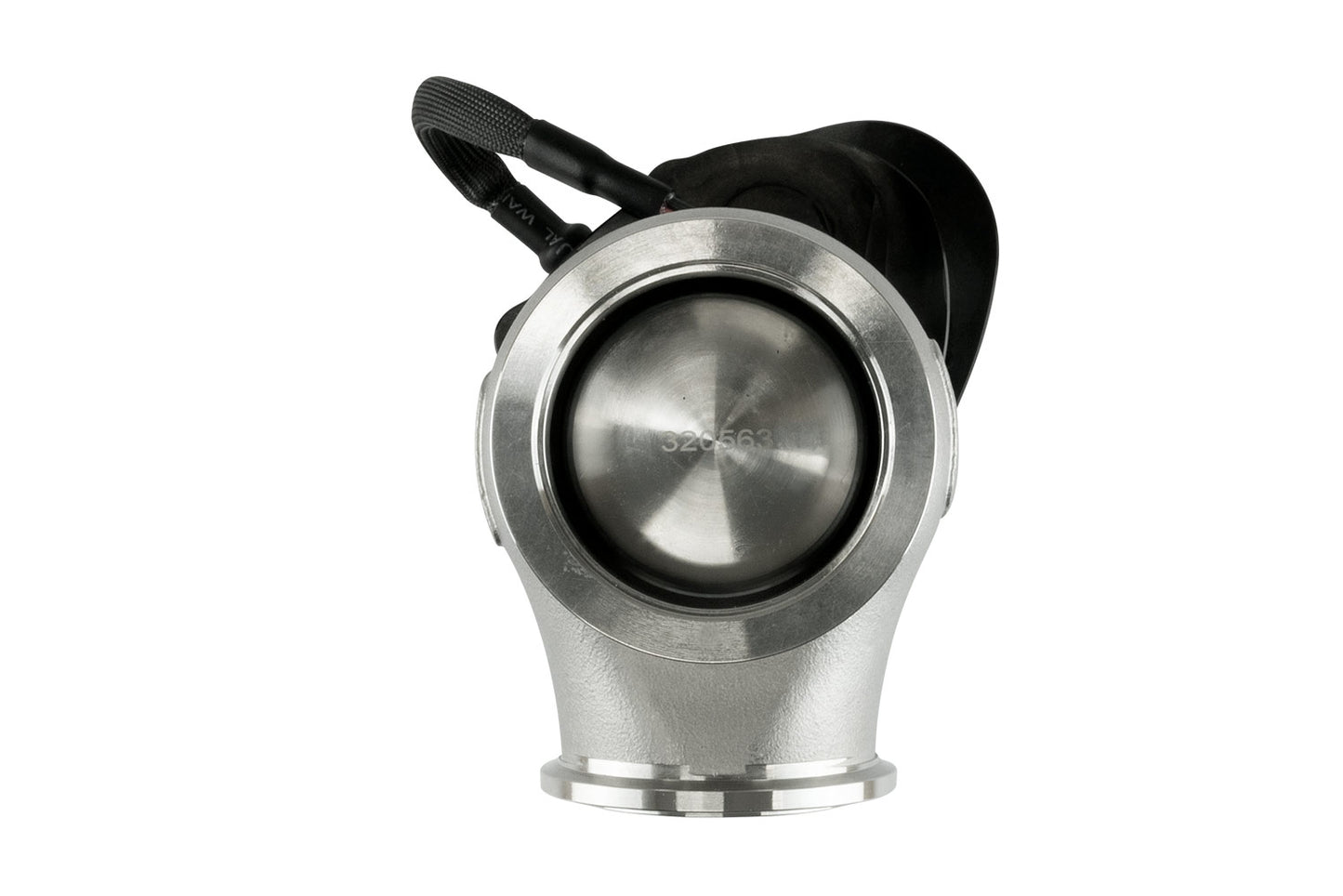

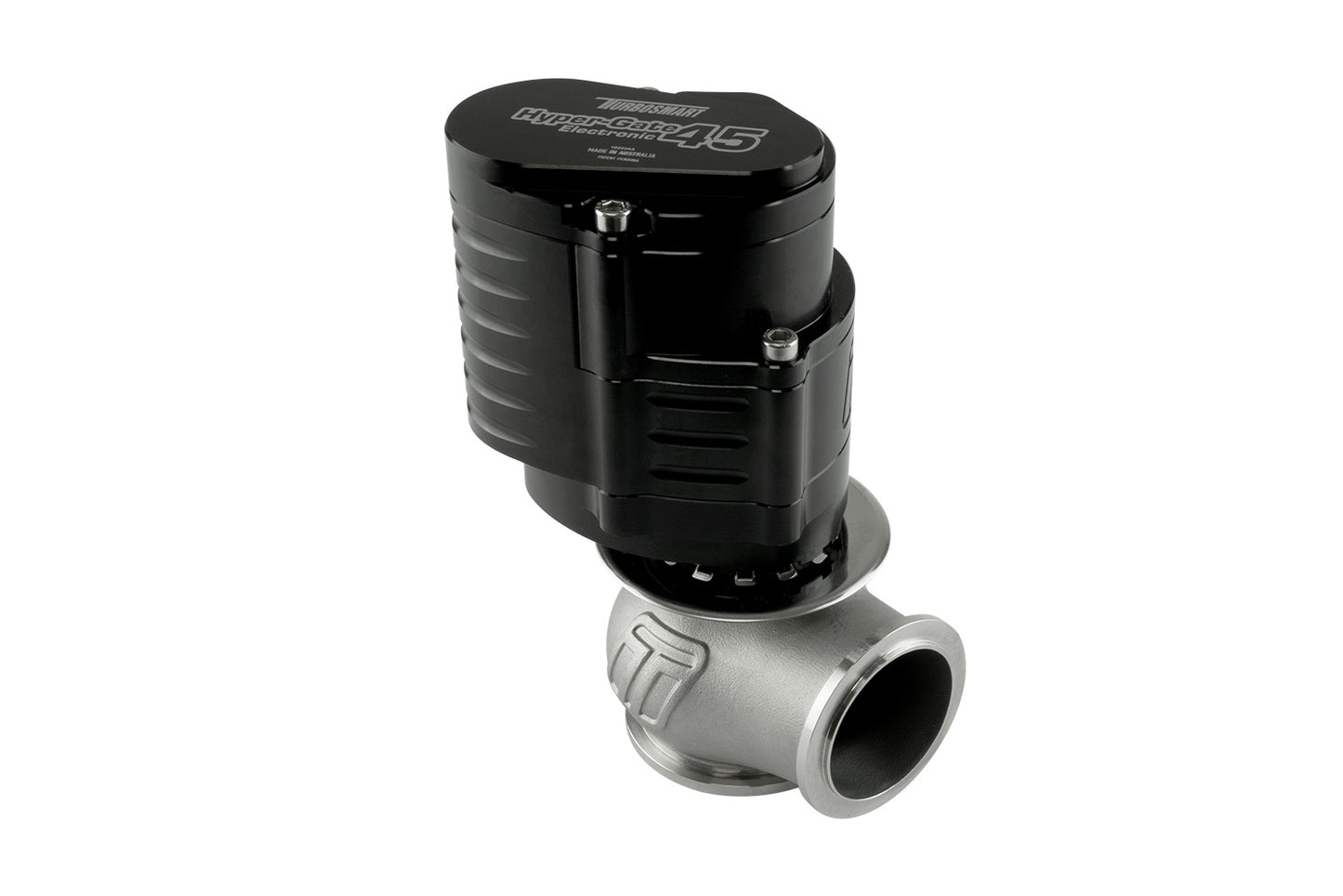

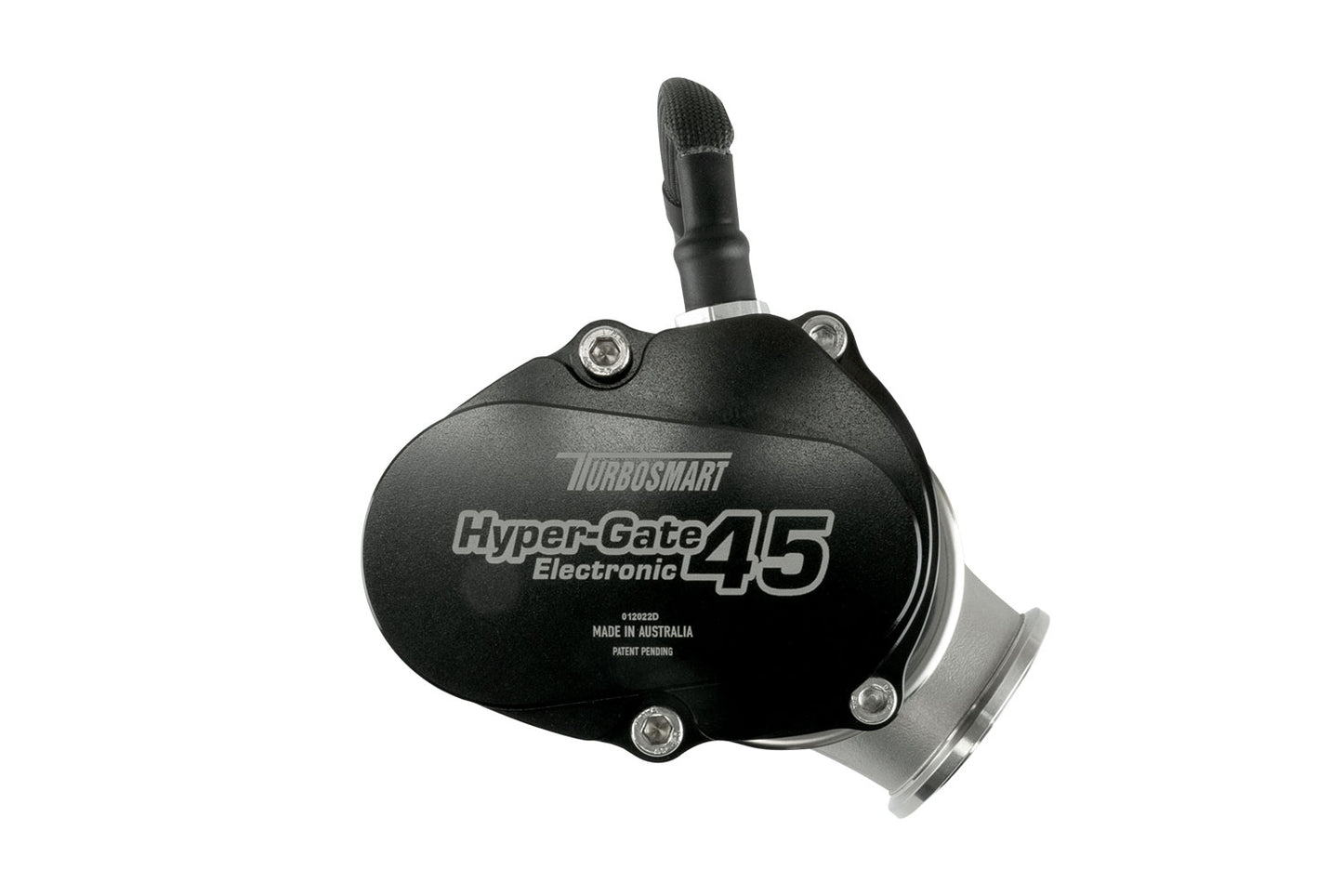

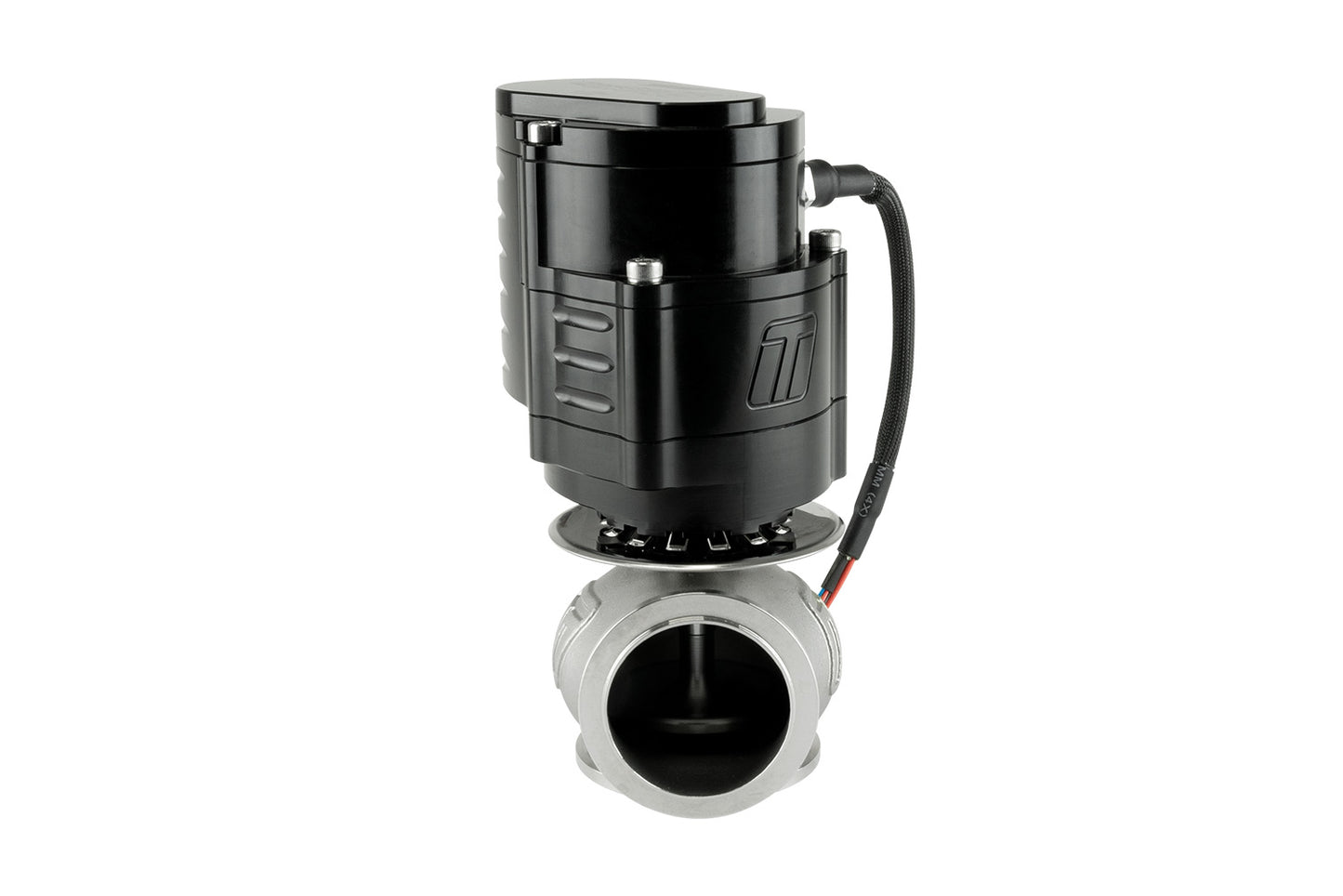

Turbosmart GenV Electronic HyperGate45 External Wastegate - TS-0553-1502

Features
Class Leading, CFD & Bench Validated Flow Performance
Nitronic 60 Valve Guide & High Temp 347 SS Body
Liquid Cooled, Electronic Actuator
Strap Type V-band clamps
User Adjustable Actuator Position
Onboard Analog 0-5V Wastegate Position Sensor
Onboard Analog 0-5V Actuator Temperature Sensor
Onboard Digital (PWM) Wastegate Position Sensor

Available in
40mm CompGate40 eWG – HERE
45mm HyperGate45 eWG –HERE
50mm ProGate50 eWG – HERE
60mm PowerGate60 eWG –HERE
StraightGate50 eWG – HERE

Turbosmart’s Patent Pending, eWG45 is a fully electronic actuated 45mm wastegate – Built on the successful, class-leading GenV HyperGate45 architecture, now with the kind of control never seen before. The eWG45 HyperGate45 is a 45mm Electronic External Wastegate that uses full electronic control without the limitations associated with traditional pneumatic control.

Starting with a Turbosmart’s GenV wastegate body, you can be confident the mounting orientation will match your existing manifold and outlet hardware. The GenV Hypergate45 already had class-leading flow capacity and heat handling characteristics. Now featuring the Turbosmart Patent Pending eWG actuator system, you can also be sure of unparalleled control.

There are no springs, hoses, boost reference signals or associated limitations. Gone are ‘Minimum’ boost levels associated with base spring pressure or heat-related issues with hoses. If your manifold priority is good enough, you can set your boost anywhere from zero to ‘All of it’ – All from your laptop or tuning interface. The eGate range requires a Dual Half-Bridge input for control, much like how an electronic throttle body is controlled and the strategy is as good as your imagination and your ECU or controller will allow.

Don’t have an ECU that has a spare Dual Half-Bridge Output? No problem at all, Check out the Turbosmart BlackBox Electronic Wastegate Controller with up to 2 independent channels via simple PWM inputs, or more advanced CAN-based inputs – All onboard and in the one unit!
