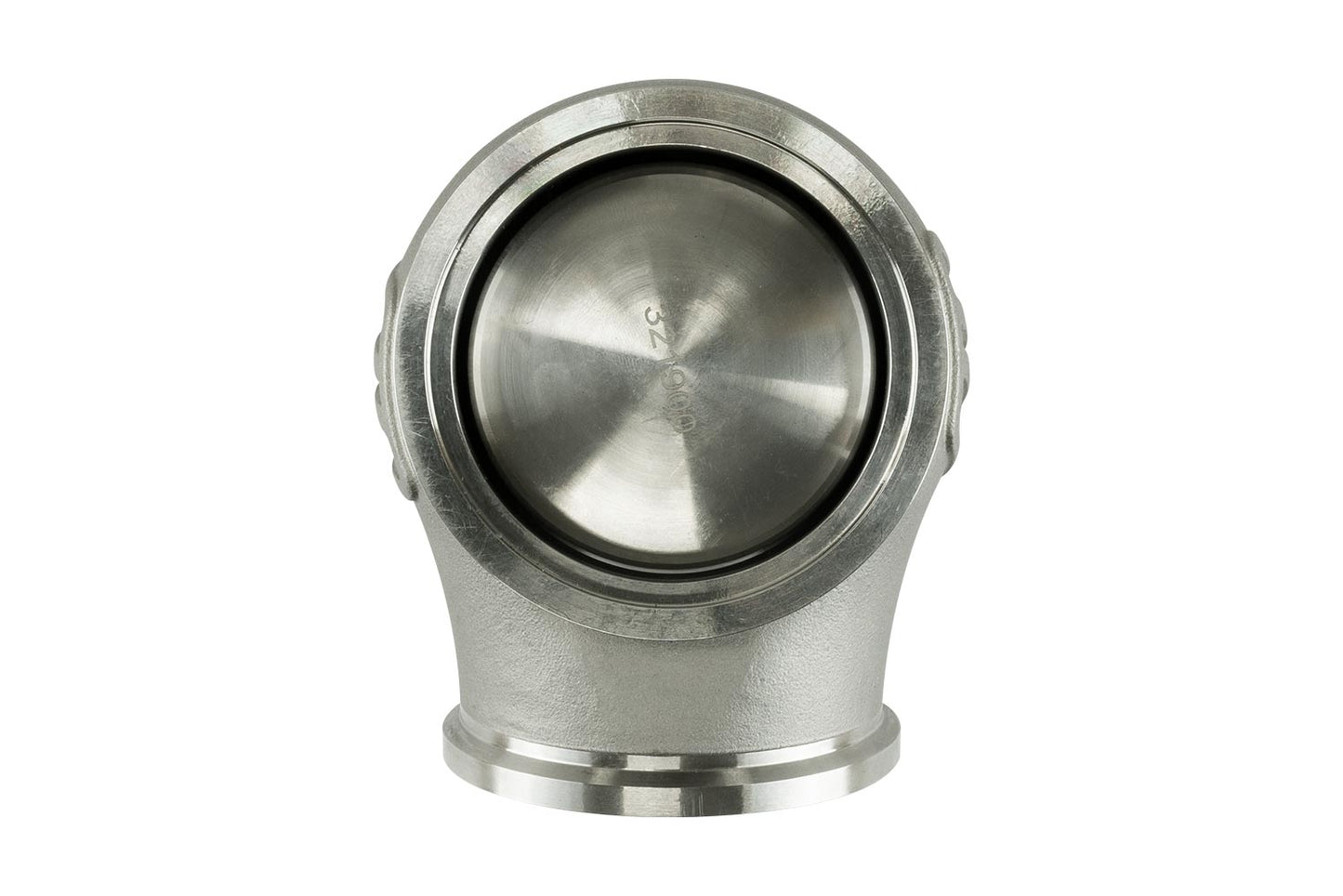

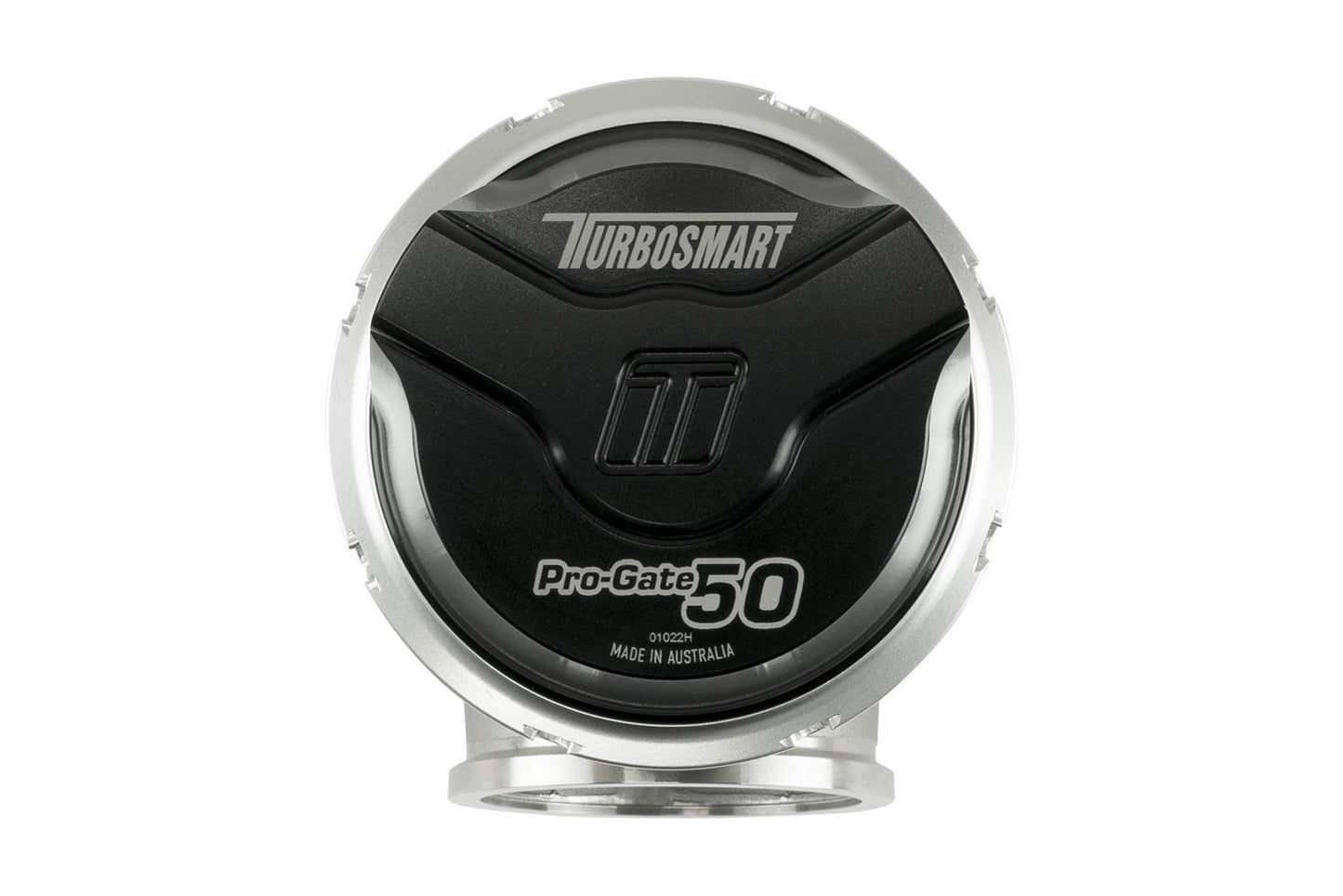

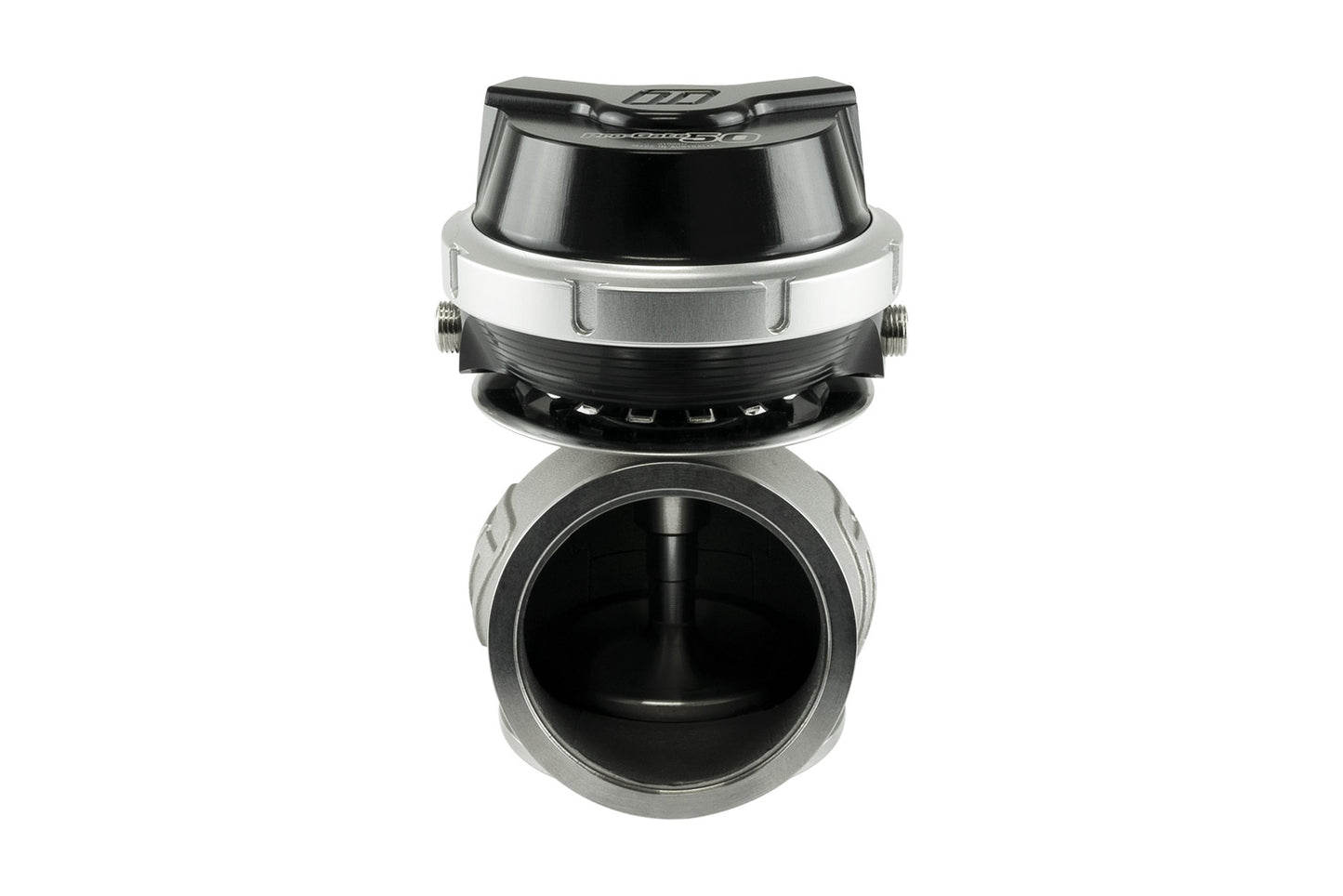

Turbosmart GenV ProGate50 7psi External Wastegate (Black) - TS-0554-1002

Turbosmart GenV ProGate50 7psi External Wastegate (Black) - TS-0554-1002

The GenV WG50 ProGate50 External Wastegate is a Motorsport-proven, cost-effective 50mm external wastegate – The Highest Flowing 50mm External Wastegate in the World! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red, Purple and Sleeper Colours
Wastegate Position Sensor Optional Upgrade
Compressed Gas (ex: Co2) Version
eWG (Electronically Actuated) Version

Features
Class Leading Thermal Performance
Class Leading CFD Driven & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Actuator Cooling
Optional Position Sensor Available Seperately
Rotatable / Clockable Actuator Housing
50mm V-Band Fitment
Nitronic 60 Valve Guide & High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps

Install

Installation

Date Sheet

Fitment

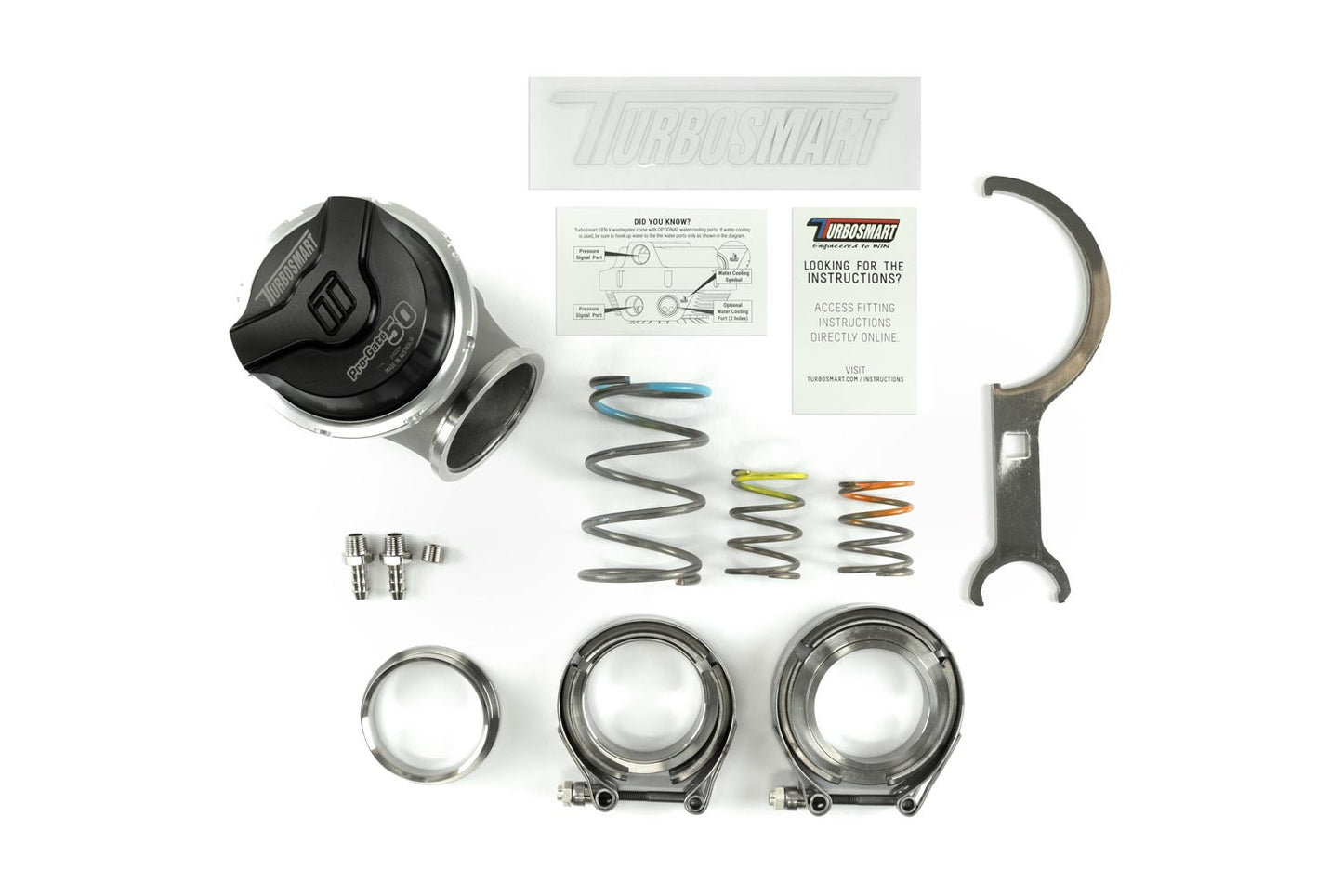

SUPPLIED WITH

• GenV Wastegate unit

• All Springs Included

• 3,5,7.14psi (1 Inst. As per Description)

• Locking Collar Tool

• GenV SS316 Valve seat

• Strap Type V-Bands

• Inlet and Outlet Weld Flanges

• Hose Tail and Blank Fitting Kit

• Turbosmart Decal
