UMI Performance 1970-1981 GM F-Body Sway Bar, Rear, Adjustable, Rod-End Mounts- 2635-R

UMI Performance 1970-1981 GM F-Body Sway Bar, Rear, Adjustable, Rod-End Mounts- 2635-R

$459.99 USD
$459.99 USD
Shipping calculated at checkout.
UMI Performance
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

UMI2635-R
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

2635-R
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

Out of stock
Sway Bars
UMI's 3-way adjustable rear sway bar controls body roll and improves cornering performance of the 2nd Gen F-body platform. Race quality rod ends improve handling response. Sway bar rate is...
Read more
Same Day Shipping Icon | Elite Race Fab

Free* Shipping on Orders Over $159

 Free Shipping | Elite Race Fab

Easy 30 Days- No Hassle Returns

 5 Star Reviews | Elite Race Fab

37,000+ 5 Star Reviews

 MFG Fitment Guarantee | Elite Race Fab

MFG Fitment Guarantee
Found a better price elsewhere?
secure-payments
View full details

Description

UMI's 3-way adjustable rear sway bar controls body roll and improves cornering performance of the 2nd Gen F-body platform. Race quality rod ends improve handling response. Sway bar rate is easily tuned to achieve desired handling balance. UMI 2636 mounting plates are available for cars not originally equipped with a sway bar or if repair is required. 100% Made In USA.

Fitment Note: 1970-1973: Rear sway bars were not standard equipment, therefore frame rails do not have threaded bosses for sway bar mounting. UMI PN 2636 must be installed. Factory Z28 and Trans Am had mounting brackets welded on the chassis to allow use of some sway bars. Removal of these brackets is required and UMI PN 2636 must be installed in order to use 2634 or 2635 rear sway bars.

1974-1981: Frame rails have mounting bosses for sway bar brackets. If undamaged, these are used with UMI 2634 and 2635 rear sway bar. 2636 can be used as a repair plate if the factory threads or mounting area is damaged.

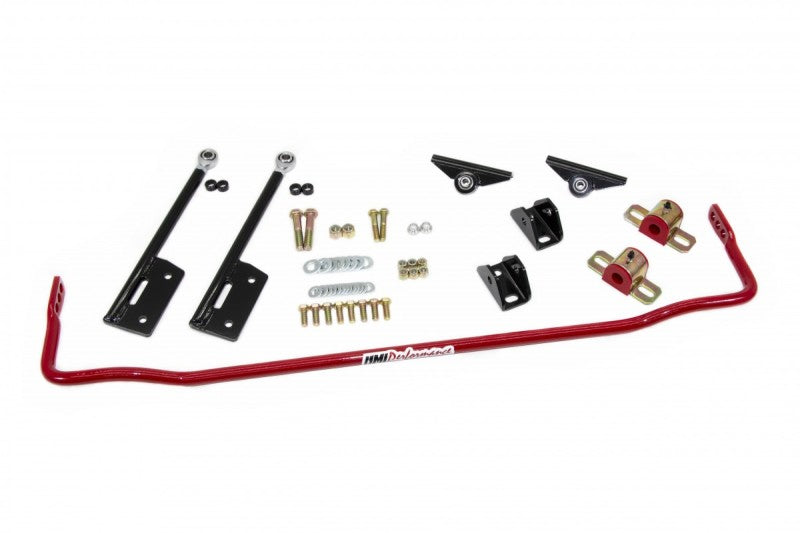

PRODUCT FEATURES

  • ¾ inch solid material
  • 3 hole adjustable with 165, 222, 315 [lbs/in] torsional stiffness
  • Race quality rod end links
  • Chassis brackets included
  • Works with factory leaf spring pad
  • Compatible with UMI2628 leaf spring traction bars
  • Used on UMI's 1971 Road Race Camaro





Fitment 1970-1981 GM F-Body
Platform 1970-1981 GM F-Body
Manufacturer UMI Performance
UOM

Each
Hardware

Included
Finish

Powder Coat
Material

Chromoly

,

Mild Steel
Modifications

None
Direct Bolt-On

Yes
Adjustable

Yes
Bushing Type

Rod End







This '2635 - 1970-1981 GM F-Body Sway Bar, Rear, Adjustable, Rod-End Mounts' fits the following platforms:

Fitment Note: 1970-1973: Rear sway bars were not standard equipment, therefore frame rails do not have threaded bosses for sway bar mounting. UMI PN 2636 must be installed. Factory Z28 and Trans Am had mounting brackets welded on the chassis to allow use of some sway bars. Removal of these brackets is required and UMI PN 2636 must be installed in order to use 2634 or 2635 rear sway bars.

1974-1981: Frame rails have mounting bosses for sway bar brackets. If undamaged, these are used with UMI 2634 and 2635 rear sway bar. 2636 can be used as a repair plate if the factory threads or mounting area is damaged.

1970-1981 GM F-Body

  • 1970-1981 Chevrolet Camaro
  • 1970-1981 Pontiac Firebird

This 2635 - 1970-1981 GM F-Body Sway Bar, Rear, Adjustable, Rod-End Mounts fits the following vehicles:

Chevrolet

Camaro

  • 1970 Chevrolet Camaro
  • 1971 Chevrolet Camaro
  • 1972 Chevrolet Camaro
  • 1973 Chevrolet Camaro
  • 1974 Chevrolet Camaro
  • 1975 Chevrolet Camaro
  • 1976 Chevrolet Camaro
  • 1977 Chevrolet Camaro
  • 1978 Chevrolet Camaro
  • 1979 Chevrolet Camaro
  • 1980 Chevrolet Camaro
  • 1981 Chevrolet Camaro

Pontiac

Firebird

  • 1970 Pontiac Firebird
  • 1971 Pontiac Firebird
  • 1972 Pontiac Firebird
  • 1973 Pontiac Firebird
  • 1974 Pontiac Firebird
  • 1975 Pontiac Firebird
  • 1976 Pontiac Firebird
  • 1977 Pontiac Firebird
  • 1978 Pontiac Firebird
  • 1979 Pontiac Firebird
  • 1980 Pontiac Firebird
  • 1981 Pontiac Firebird
