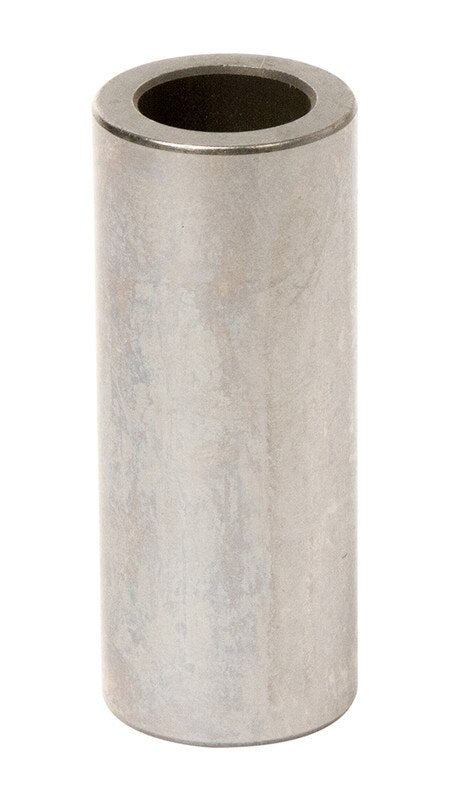

Vertex Wrist Pin for 2008-2011 Arctic Cat/Yamaha 700 H1 EFI & More - 715462

The Vertex Wrist Pin 715462 is designed for the Arctic Cat, Yamaha models listed below. It provides an application-specific solution for piston and connecting-rod service while keeping the required vehicle fitment connected to one manufacturer part number.

This Vertex wrist pin is an application-specific replacement for the connection between the piston and connecting rod. Vertex pins use hardened, wear-resistant surface treatments designed to reduce galling and maintain dimensional stability.

Features

• Application-specific piston wrist pin
• Hardened, wear-resistant surface treatment
• Designed to support the piston-to-connecting-rod joint
• Verify piston, connecting rod, and bearing compatibility before installation

Specifications

• Brand: Vertex
• Product Type: Wrist Pin
• Manufacturer Part Number: 715462

Vehicle Fitment

Compatible Make(s): Arctic Cat, Yamaha

• 700 H1 EFI (2008-2011)
• 700 Prowler HDX (2017)
• 700 Prowler XT (2008)
• 700 TRV (2009-2015)
• Prowler 700 XT (2009-2016)
• YFM 700 D Grizzly 4x4 (2014-2015)
• YFM 700 DH Grizzly 4x4 Hunter (2014)
• YFM 700 FG Grizzly 4x4 (2014-2019)
• YFM 700 GP Grizzly EPS 4x4 (2019-2023)
• YFM 700 GPH Grizzly EPS 4x4 Hunter (2019-2023)
• YFM 700 GPL Grizzly EPS 4x4 SE (2019)
• YFM 700 GPS Grizzly EPS 4x4 SE (2020-2023)
• YFM 700 GPS Grizzly EPS 4x4 XT-R (2020-2021)
• YFM 700 GPZ Grizzly EPS 4x4 XT-R (2022-2023)
• YFM 700 KD Kodiak 4x4 (2019-2023)
• YFM 700 KDH Kodiak 4x4 Hunter (2019)
• YFM 700 KP Kodiak EPS 4x4 (2019-2023)
• YFM 700 KPH Kodiak EPS 4x4 Hunter (2019-2023)
• YFM 700 KPS Kodiak EPS 4x4 SE (2019-2023)
• YFM 700 PE Grizzly EPS 4x4 (2014)
• YFM 700 PF Grizzly EPS 4x4 (2015)
• YFM 700 PH Grizzly EPS 4x4 Hunter (2014-2015)
• YFM 700 PS Grizzly EPS 4x4 SE (2014-2015)
• YFM 700 R Raptor (2015-2023)
• YFM 700 R Raptor SE (2015-2023)
• YXC 700 P Viking VI EPS (2015-2023)
• YXC 700 PR Viking VI EPS Ranch Edition (2016-2023)
• YXM 700 D Viking (2019-2020)
• YXM 700 DH Viking Hunter (2014-2016)
• YXM 700 P Viking EPS (2015-2023)
• YXM 700 PH Viking EPS Hunter (2014-2021)
• YXM 700 PR Viking EPS Ranch Edition (2018-2023)
• YXM 700 PS Viking EPS SE (2014-2017)
• YFM 700 R Raptor (2015-2017)
• YXM 700 D Viking (2014-2018)

Fitment Note: Confirm the exact year, model, engine, trim, and required component configuration before ordering. Professional installation and measurement of all engine clearances are recommended where applicable.
