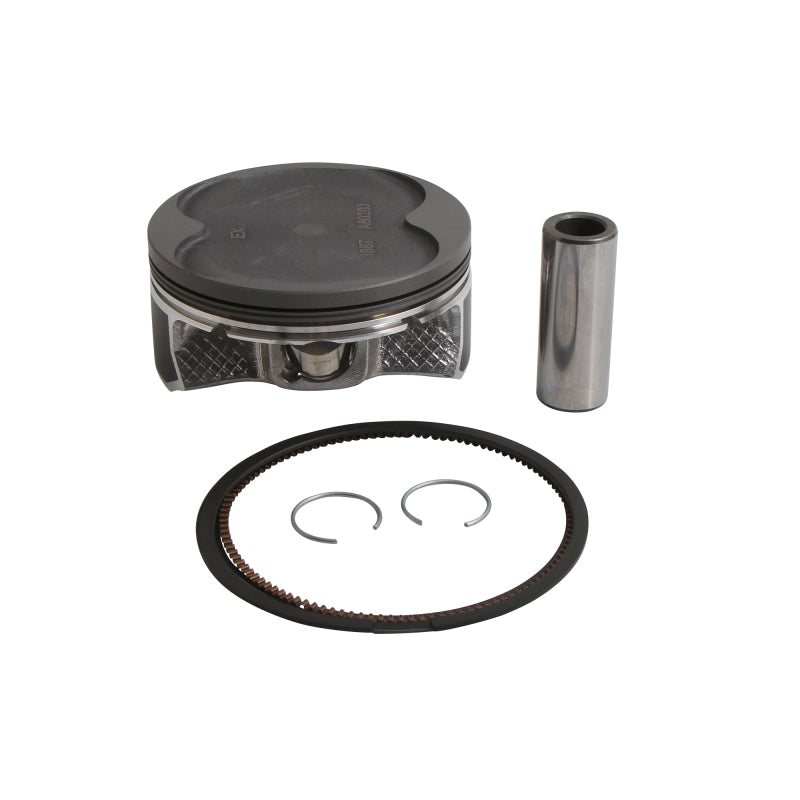

The Vertex Cast Replica Piston Kit 24396B is designed for the Polaris models listed below. It provides an application-specific solution for top-end engine service while keeping the required vehicle fitment connected to one manufacturer part number.
This cast Replica-series piston is designed as an OE-style replacement with the original-style piston form and stock compression characteristics. Vertex piston kits pair the piston with the matching rings, wrist pin, and circlips.
Features
- Cast Replica design follows the original equipment piston form
- Stock-style compression configuration
- Includes piston, rings, wrist pin, and circlips
- Application-specific piston sizing and fitment
Specifications
-
Brand: Vertex
-
Product Type: Cast Replica Piston Kit
-
Manufacturer Part Number: 24396B
Vehicle Fitment
Compatible Make(s): Polaris
- ACE 570 (2015-2019)
- ACE 570 [Euro] (2015-2018)
- ACE 570 HD (2015-2019)
- Ranger 570 [Euro] (2015-2016)
- Ranger 570 [INTL] (2014)
- Ranger 570 4x4 (2014-2021)
- Ranger 570 4x4 [Euro] (2016)
- Ranger 570 4x4 [INTL] (2014-2015, 2017-2018)
- Ranger 570 4x4 Crew (2014-2021)
- Ranger 570 4x4 Crew EPS (2014-2021)
- Ranger 570 4x4 EPS HDPE (2017)
- Ranger 570 4x4 EPS HDPS (2018)
- Ranger 570 4x4 Full Size (2015-2022)
- Ranger 570 4x4 Full Size Crew (2015-2019)
- Ranger 570 Crew SP (2022)
- Ranger 570 Crew SP NorthStar Edition (2022)
- Ranger 570 Crew SP Premium (2022)
- Ranger 570 EPS (2014-2019)
- Ranger 570 SP (2022)
- Ranger 570 SP NorthStar Edition (2022)
- Ranger 570 SP Premium (2022)
- Ranger 570-6 Full Size Crew (2021-2022)
- RZR 570 (2012-2020)
- RZR 570 [Euro] (2015-2018)
- RZR 570 [INTL] (2012-2014)
- RZR 570 EPS (2013, 2015-2020)
- RZR 570 EPS Trail (2015-2016)
- RZR 570 Trail (2021-2022)
- RZR 570 Trail Premium (2021)
- Sportsman 570 (2014-2022)
- Sportsman 570 [Euro] (2017-2018)
- Sportsman 570 [MD] (2015-2016)
- Sportsman 570 6x6 (2017-2022)
- Sportsman 570 6x6 [Euro] (2021)
- Sportsman 570 6x6 Tractor (2017-2018)
- Sportsman 570 EFI EPS Forest Quad (2015)
- Sportsman 570 EFI Touring [INTL] (2014)
- Sportsman 570 EFI X2 EPS (2015-2016)
- Sportsman 570 EPS (2014-2016, 2022)
- Sportsman 570 EPS [Euro] (2017-2018)
- Sportsman 570 EPS UTE (2016)
- Sportsman 570 EPS ZUG (2016-2018)
- Sportsman 570 HD (2014-2018)
- Sportsman 570 Hunt Edition (2021-2022)
- Sportsman 570 Premium (2021-2022)
- Sportsman 570 Ride Command LE (2022)
- Sportsman 570 SP (2015-2020)
- Sportsman 570 SP [MD] (2015-2016)
- Sportsman 570 SP EPS (2015-2017)
- Sportsman 570 Tractor (2016-2018)
- Sportsman 570 Tractor EPS (2016-2018)
- Sportsman 570 Tractor EPS SP (2015-2016, 2018-2019)
- Sportsman 570 Trail (2021-2022)
- Sportsman 570 UTE (2017-2018)
- Sportsman 570 UTE [MD] (2016)
- Sportsman 570 UTE HD (2015-2017)
- Sportsman 570 UTE HD EPS (2014)
- Sportsman 570 UTE Tractor (2016)
- Sportsman 570 Utility (2021)
- Sportsman 570 Utility EPS (2021-2022)
- Sportsman 570 Utility EPS HD (2022)
- Sportsman 570 Utility EPS HD LE (2021)
- Sportsman 570 X2 EPS (2015-2021)
- Sportsman 570 X2 EPS [Euro] (2015, 2018)
- Sportsman 570 X2 EPS [MD] (2017)
- Sportsman 570 X2 EPS Tractor (2017-2019)
- Sportsman 570 Tractor EPS SP (2016, 2018)
Fitment Note: Confirm the exact year, model, engine, trim, and required component configuration before ordering. Professional installation and measurement of all engine clearances are recommended where applicable.
