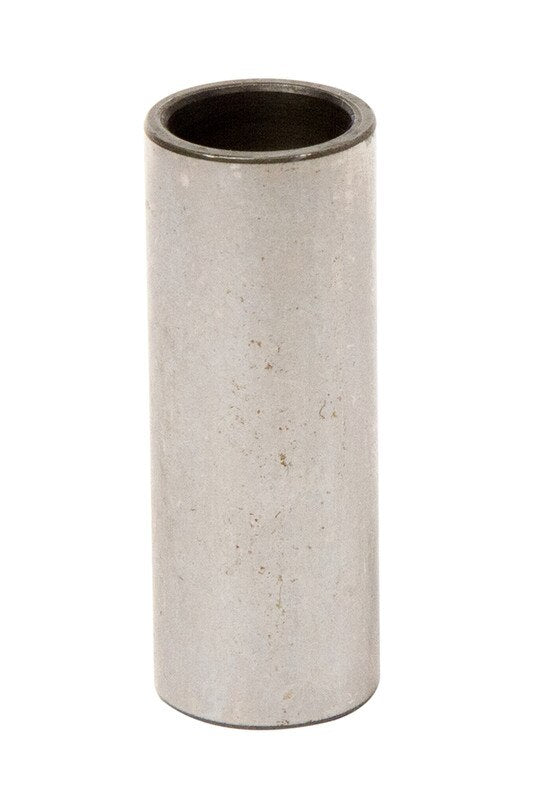

Vertex Wrist Pin for 2010-2011, 2013-2014 Polaris/Yamaha Ranger 800 4x4 & More - 715405

The Vertex Wrist Pin 715405 is designed for the Polaris, Yamaha models listed below. It provides an application-specific solution for piston and connecting-rod service while keeping the required vehicle fitment connected to one manufacturer part number.

This Vertex wrist pin is an application-specific replacement for the connection between the piston and connecting rod. Vertex pins use hardened, wear-resistant surface treatments designed to reduce galling and maintain dimensional stability.

Features

• Application-specific piston wrist pin
• Hardened, wear-resistant surface treatment
• Designed to support the piston-to-connecting-rod joint
• Verify piston, connecting rod, and bearing compatibility before installation

Specifications

• Brand: Vertex
• Product Type: Wrist Pin
• Manufacturer Part Number: 715405

Vehicle Fitment

Compatible Make(s): Polaris, Yamaha

• Ranger 800 4x4 (2010-2011, 2013-2014)
• Ranger 800 4x4 Crew (2010-2014)
• Ranger 800 4x4 EFI [60cc, 760cc ] (2010-2011)
• Ranger 800 4x4 EFI Crew [60cc, 760cc ] (2010-2011)
• Ranger 800 4x4 MidSize (2013-2014)
• Ranger 800 4x4 XP (2012)
• Ranger 800 6x6 (2010-2017)
• RZR 4 800 (2010-2014)
• RZR 4 800 [INTL] (2011)
• RZR 4 800 EPS [INTL] (2012)
• RZR 800 (2008-2010, 2013-2014)
• RZR 800 EPS (2011-2012)
• RZR S 800 (2009-2014)
• RZR S 800 [INTL] (2009-2010, 2012-2014)
• Sportsman 800 4x4 (2005-2007, 2010-2014)
• Sportsman 800 4x4 [INTL] (2007)
• Sportsman 800 4x4 HO (2008-2009)
• Sportsman 800 6x6 (2009-2014)
• Sportsman 800 EFI [Scandinavian] (2008)
• Sportsman 800 X2 (2007-2009)
• Sportsman Forest 800 4x4 (2012-2014)
• Sportsman Forest 800 6x6 (2012-2015)
• Sportsman Touring 800 (2008-2009)
• Sportsman Touring 800 [INTL] (2008-2009)
• WR 400 F (1998-2002)
• YZ 400 F (1998-1999)
• YZ 450 F (2010-2017)
• YZ 450 FX (2016-2017)

Fitment Note: Confirm the exact year, model, engine, trim, and required component configuration before ordering. Professional installation and measurement of all engine clearances are recommended where applicable.
