Vortech V-3 H67B Supercharger Tuner Kit for 2013-2019 FR-S/BRZ/86 - 4TF218-114L

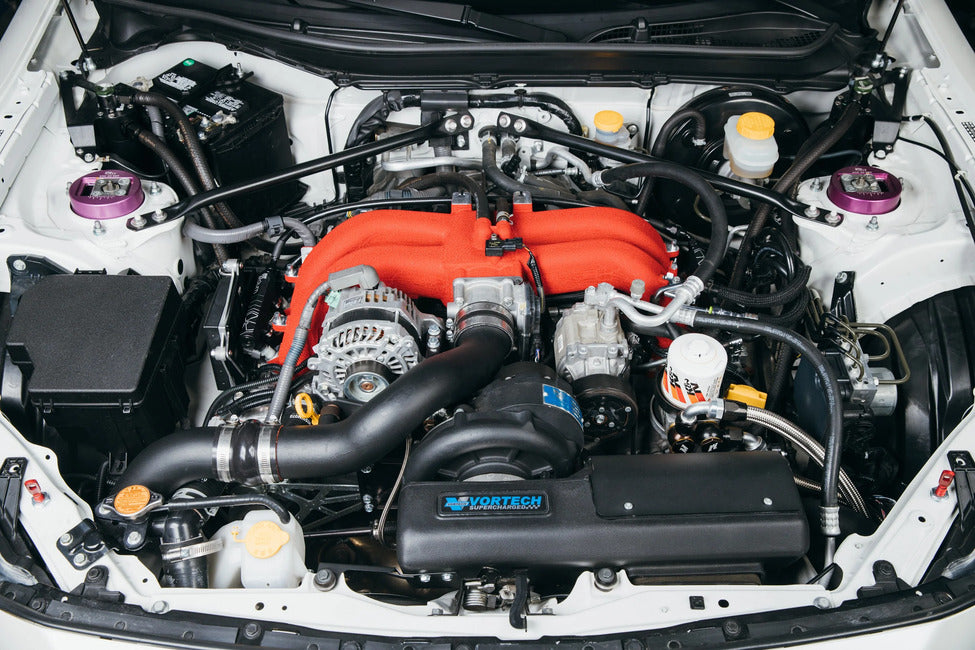

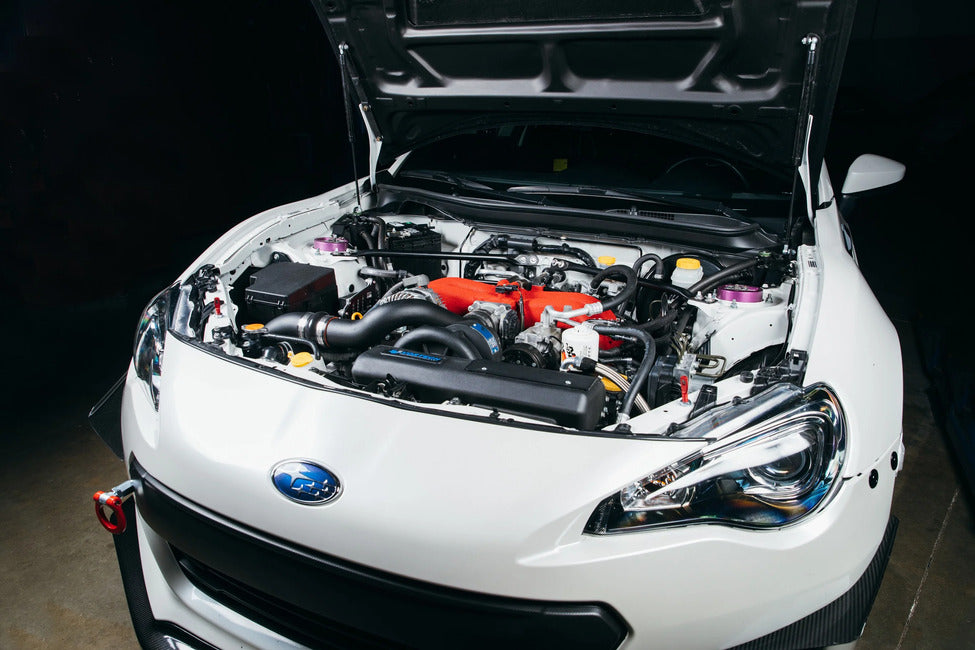

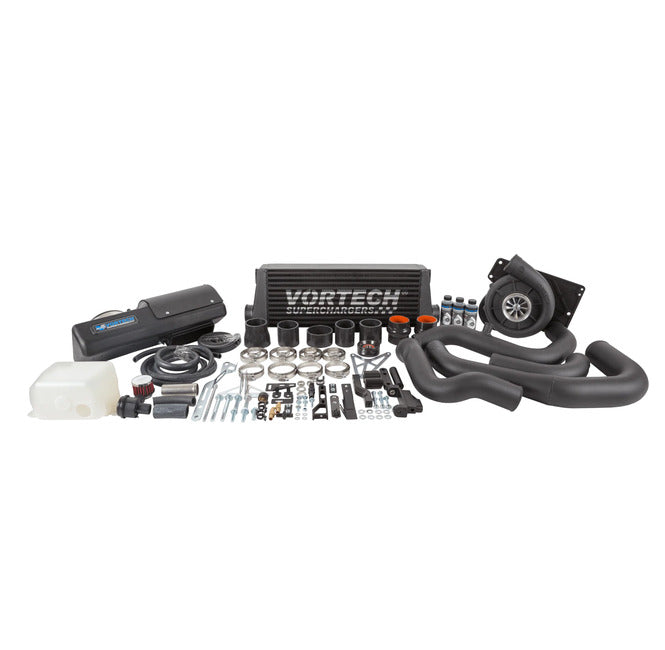

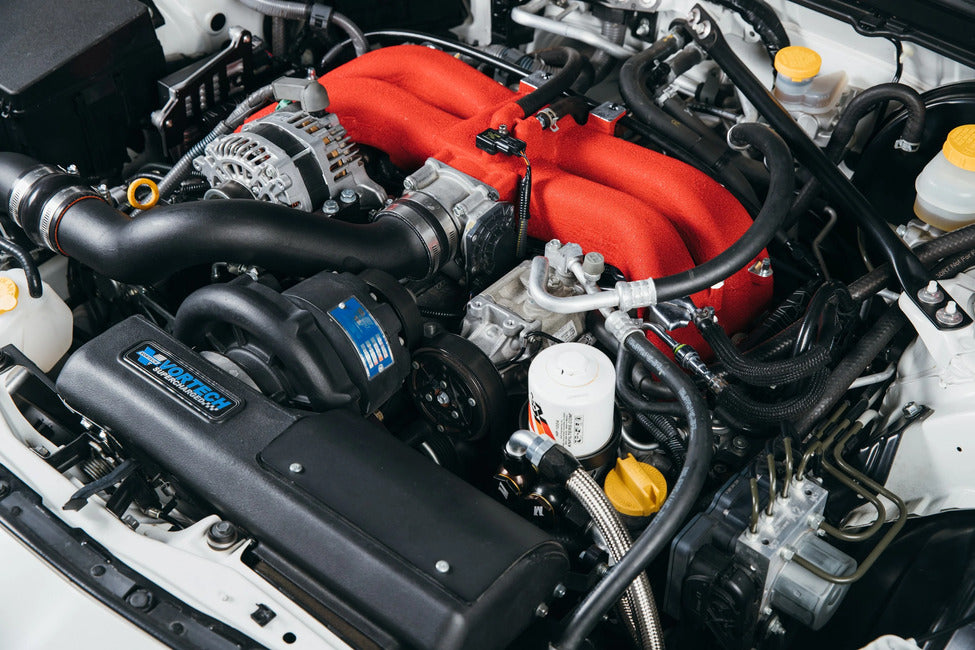

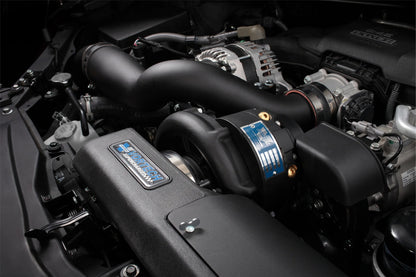

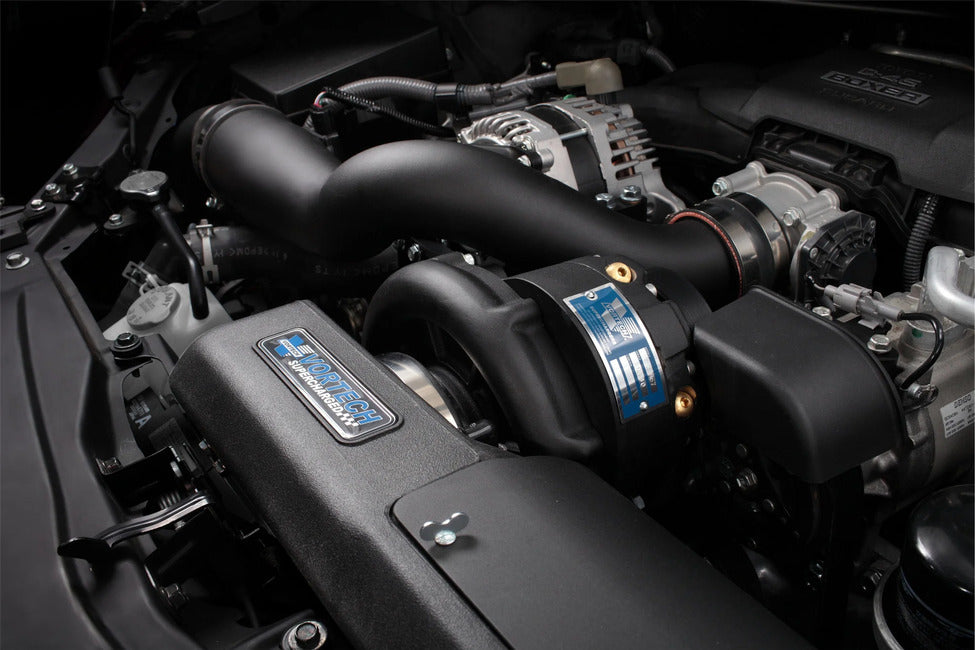

The Vortech 4TF218-114L Supercharger Tuner Kit is a centrifugal forced-induction system designed for the FA20-powered Scion FR-S, Subaru BRZ, and Toyota 86 platform. This black-finish kit uses Vortech's V-3 H67B centrifugal supercharger, a compressor configuration developed specifically around the FA20 Boxer engine, along with an integrated air-to-air charge cooler system. A supplied 3.48-inch drive pulley is rated by Vortech for approximately 9 PSI at the factory redline.

This is a Tuner Kit, meaning it is intended for custom performance builds and does not include fuel system components or an ECU calibration/tune. Proper supporting fuel components and custom calibration must be supplied separately as required for the vehicle and build.

Key Features & Specs:

• Brand: Vortech Superchargers
• Part Type: Supercharger Tuner Kit
• Supercharger Head Unit: V-3 H67B
• Supercharger Type: Centrifugal
• Engine Platform: FA20 Boxer
• Charge Cooler: Air-to-Air
• Drive Pulley: 3.48 in.
• Approximate Boost: 9 PSI at factory redline
• Head Unit Lubrication: Self-contained internal oil reservoir
• Oil Pan Connection Required: No
• Supercharger Drain: Remote fluid drain hose included
• Gear Configuration: Helical
• Impeller: High-efficiency 5-axis machined billet design
• Compressor Housing: High-diffusion housing
• Compressor Development: Tested in Vortech's SAE J1723-compliant supercharger test cell
• Charge-Cooler Ducting: Aluminum tubing
• Charge-Cooler Core: Oversized air-to-air cooler
• Duct Connections: Heat-resistant silicone sleeves
• Clamps: Premium stainless steel
• Mounting Brackets: CNC-machined billet construction
• Bracket Finish: Black anodized
• Air Intake: Stylized airbox and filter housing
• Factory Ram-Air Intake: Retained
• Air Filter Access: Quick-release fasteners
• Air Filter: Reusable high-flow filter included
• Belts & Pulleys: Included
• Finish: Black
• Transmission Compatibility: Manual or automatic
• Fuel Components Included: No
• ECU Calibration Included: No
• Estimated Installation Time: 4-6 hours
• CARB Legal: No
• Manufacturer Part Number: 4TF218-114L
• SKU: VTC-4TF218-114L

Fitment:

• 2013-2016 Scion FR-S
• 2013-2019 Subaru BRZ
• 2017-2019 Toyota 86
• FA20 Boxer engine
• Manual or automatic transmission

The V-3 H67B uses Vortech's self-contained lubrication system, so no oil feed or drain connection between the engine oil pan and supercharger gear case is required. A remote fluid drain hose is attached to the supercharger to simplify supercharger fluid changes without removing the head unit from the vehicle.

Vortech developed the H67B compressor stage specifically for the FA20 Boxer platform. Its centrifugal compressor uses a 5-axis machined billet impeller and high-diffusion housing designed around high adiabatic efficiency. By reducing the amount of heat generated while compressing the intake air, the design is intended to reduce parasitic drive requirements while delivering efficient airflow across the operating range.

The integrated air-to-air charge-cooling system uses an oversized cooler core and aluminum charge tubing to reduce intake-air temperatures after compression while minimizing pressure loss. Heat-resistant silicone couplers and stainless steel clamps connect the discharge plumbing, while CNC-machined billet mounting brackets provide a rigid installation and a clean, factory-style engine-bay appearance.

Vortech also incorporates a dedicated airbox and filter housing designed for additional airflow while retaining the vehicle's factory cold-air ram intake. Quick-release fasteners provide convenient access to the included reusable high-flow air filter for servicing and cleaning.

Important Tuner Kit Information:
Unlike a complete calibrated supercharger system, this tuner configuration does not include fuel components or engine-management calibration. The installer or vehicle tuner is responsible for selecting the appropriate fueling and custom calibration for the specific vehicle, fuel, modifications, and intended power level.

Emissions Notice:
This tuner kit is not CARB legal and is not available or legal for sale or use on pollution-controlled vehicles in California. Vortech states that its tuner kits are legal in California only for qualifying racing vehicles that are never used, registered, or licensed for highway operation. Installation on a vehicle operated on public roads may also violate applicable federal emissions laws.
