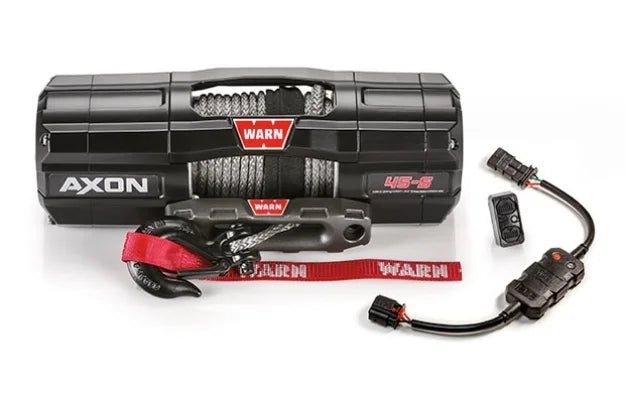

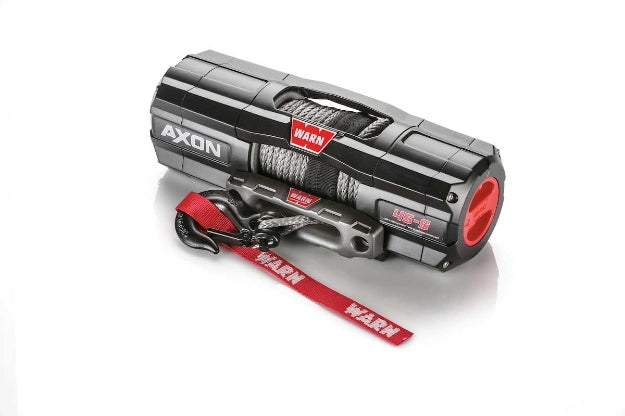

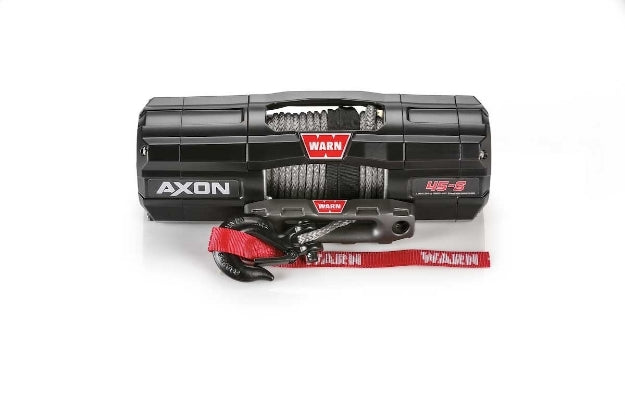

Warn 101140 AXON 45-S Powersports 12V Winch – 4,500 lb Synthetic Rope

The Warn 101140 AXON 45-S Powersports Winch represents the next generation of UTV and side-by-side recovery technology. Designed for demanding trail, work, and plow applications, the AXON 45-S delivers a powerful 4,500-pound rated line pull while introducing innovative features that simplify installation and operation.

This winch comes equipped with 50 feet of 1/4-inch Spydura® synthetic rope, an Epic hawse fairlead, a Rockerbar digital control switch, and WARN’s HUB Wireless Receiver for Bluetooth-enabled control. At the core of the AXON platform is the revolutionary Motactor™, which combines the motor and contactor into a single sealed unit for improved performance, simplified wiring, and enhanced reliability. With all-metal construction, a smooth three-stage planetary geartrain, load-holding brake, and IP68 waterproofing, the Warn 101140 is built to perform in the harshest environments.

Key Features

• 4,500 lb rated line pull for UTVs and side-by-sides

• Includes 50 ft of 1/4″ Spydura® synthetic rope

• Epic hawse fairlead and black hook included

• Motactor™ design combines motor and contactor for easy installation

• HUB Wireless Receiver enables Bluetooth control

• Rockerbar digital control switch included

• Durable all-metal construction with one-piece tie plate

• IP68 waterproof sealing for all-weather performance

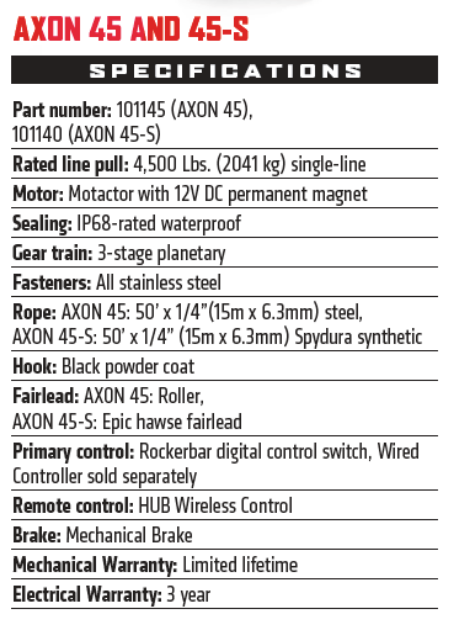

Technical Specs

• Product Line: AXON 45-S

• Type: Electric

• Voltage: 12V

• Recommended Use: Powersports / UTV / Side-by-Side

• Capacity: 4,500 lb

• Drive Style: 3-Stage Planetary

• Brake Type: Load-Holding

• Freespooling: Yes

Line, Fairlead & Performance

• Rope Material: Spydura® Synthetic

• Rope Diameter: 1/4 in

• Rope Length: 50 ft

• Fairlead Style: Epic Hawse

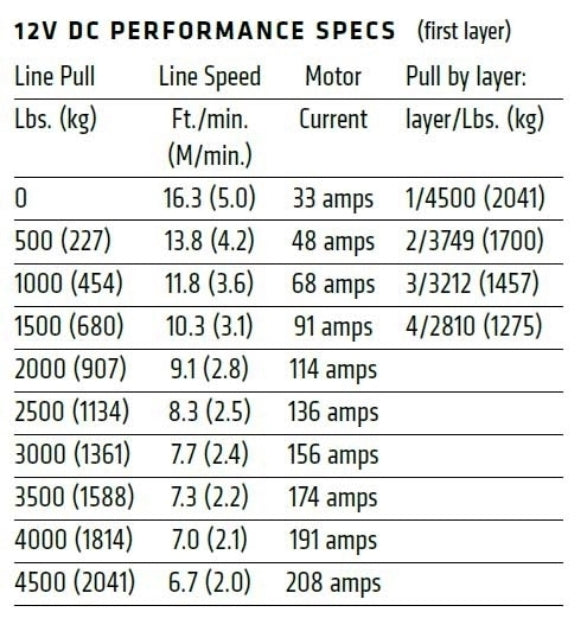

• Line Speed: 16.3 ft/min

Controls & Mounting

• Control Type: Rockerbar Digital Switch

• Wireless Capability: Bluetooth via HUB Receiver

• Remote Included: No (Wireless control supported)

• Waterproof Rating: IP68

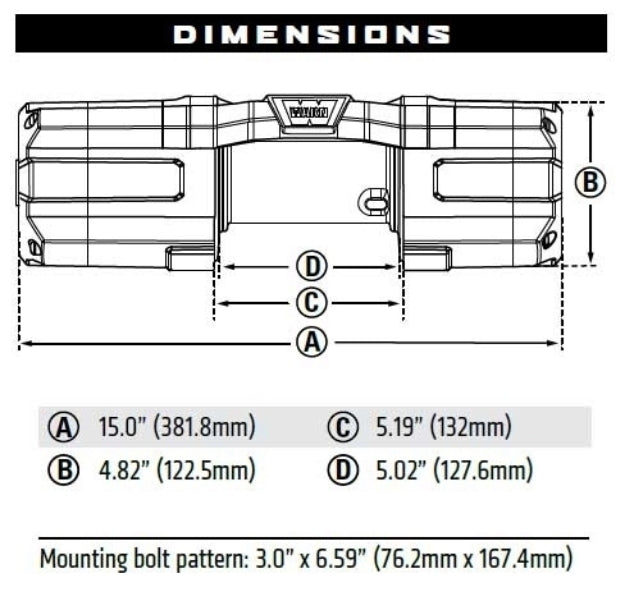

• Bolt Pattern: 3 in x 6.59 in

• Finish: Satin Black Powder Coat

• Hardware: Stainless Steel Fasteners

• Quantity: Complete Kit

Minor Fitment Notes

• Designed for UTVs and side-by-side vehicles

• Not intended for full-size vehicle recovery

• Requires a 12V electrical system

• Professional installation recommended

Warranty

• Mechanical Components: Limited Lifetime Warranty

• Electrical Components: Limited 3-Year Warranty
