Warn 101150 AXON 55-S Powersports 12V Winch – 5,500 lb Synthetic Rope

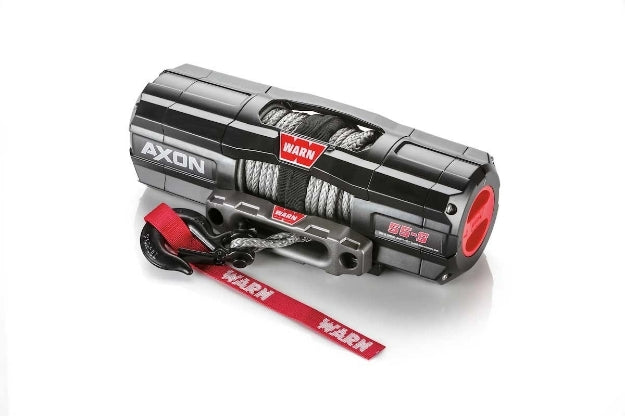

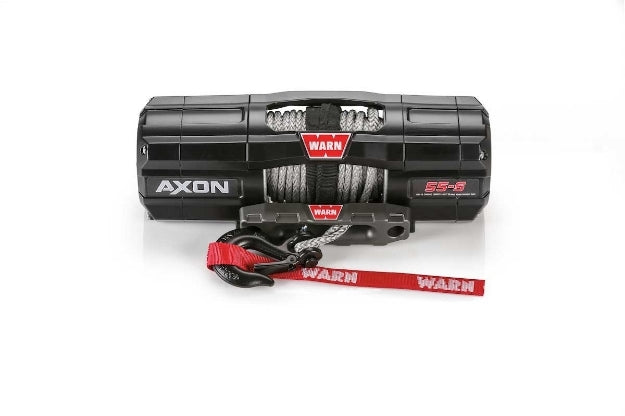

The Warn 101150 AXON 55-S Powersports Winch is engineered for the largest UTVs and the most demanding recovery situations. Delivering a massive 5,500-pound rated line pull, the AXON 55-S is WARN’s most powerful powersports winch, designed for riders who push equipment to the limit on the trail, at work, or in extreme terrain.

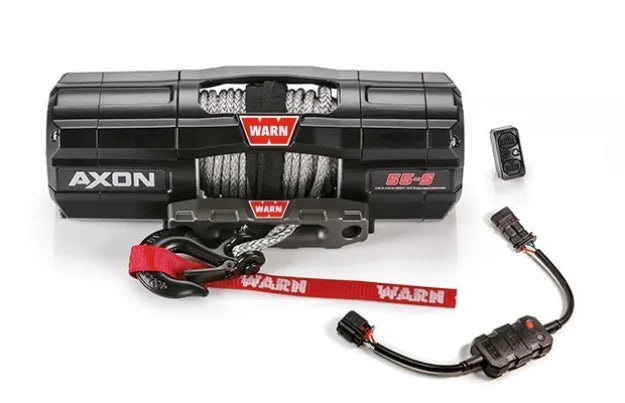

This winch includes 50 feet of 1/4-inch Spydura® synthetic rope, an Epic hawse fairlead, a Rockerbar digital control switch, and WARN’s HUB Wireless Receiver for Bluetooth-enabled operation. At its core is the innovative Motactor™ system, which combines the motor and contactor into a single sealed unit for simplified installation, improved performance, and unmatched reliability. With all-metal construction, a one-piece tie plate for added rigidity, load-holding brake, smooth three-stage planetary geartrain, and IP68 waterproofing, the Warn 101150 is built to dominate the toughest UTV recovery tasks.

Key Features

• 5,500 lb rated line pull for large UTVs and heavy-duty recovery

• Includes 50 ft of 1/4″ Spydura® synthetic rope

• Epic hawse fairlead and black hook included

• Motactor™ system combines motor and contactor for superior performance

• HUB Wireless Receiver enables Bluetooth control

• Rockerbar digital control switch included

• Durable all-metal construction with one-piece tie plate

• IP68 waterproof sealing for extreme environments

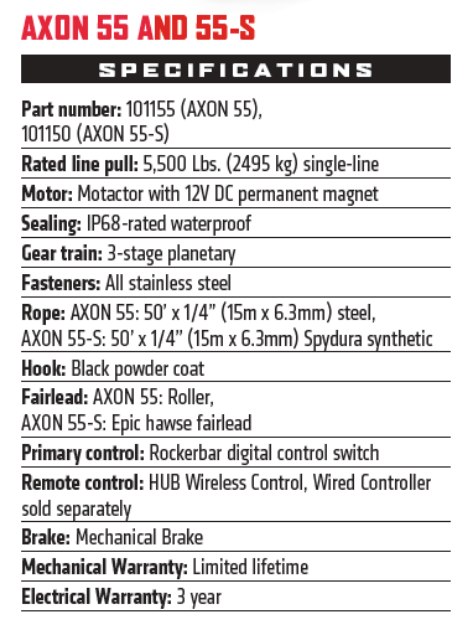

Technical Specs

• Product Line: AXON 55-S

• Type: Electric

• Voltage: 12V

• Recommended Use: Powersports / UTV / Side-by-Side

• Capacity: 5,500 lb

• Drive Style: 3-Stage Planetary

• Brake Type: Load-Holding

• Freespooling: Yes

Line, Fairlead & Performance

• Rope Material: Spydura® Synthetic

• Rope Diameter: 1/4 in

• Rope Length: 50 ft

• Fairlead Style: Epic Hawse

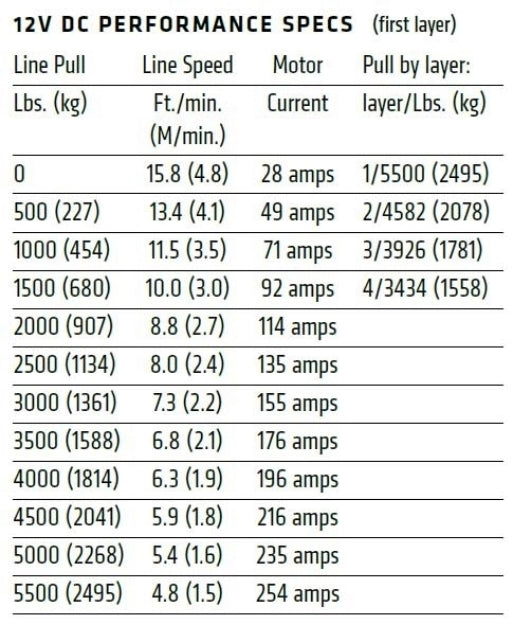

• Line Speed: 15.8 ft/min

Controls & Mounting

• Control Type: Rockerbar Digital Switch

• Wireless Capability: Bluetooth via HUB Receiver

• Remote Included: No (Wireless control supported)

• Waterproof Rating: IP68

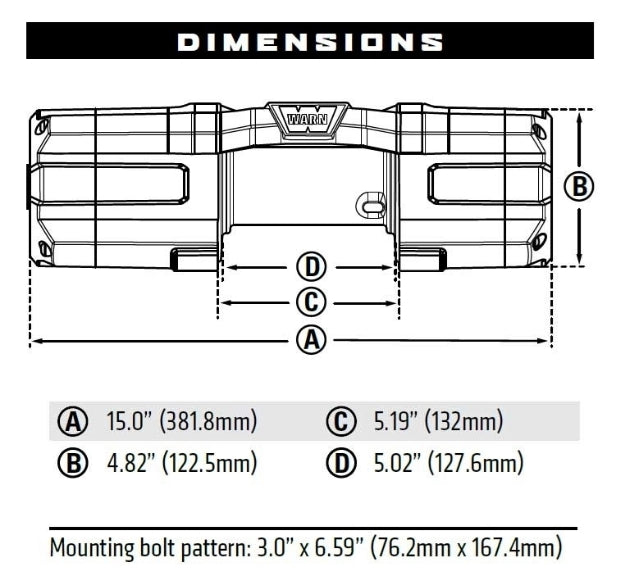

• Bolt Pattern: 3 in x 6.59 in

• Finish: Satin Black Powder Coat

• Hardware: Stainless Steel Fasteners

• Quantity: Complete Kit

Minor Fitment Notes

• Designed specifically for UTVs and side-by-side vehicles

• Ideal for heavy accessories, plows, and recovery use

• Not intended for full-size truck or SUV recovery

• Requires a 12V electrical system

• Professional installation recommended

Warranty

• Mechanical Components: Limited Lifetime Warranty

• Electrical Components: Limited 3-Year Warranty
