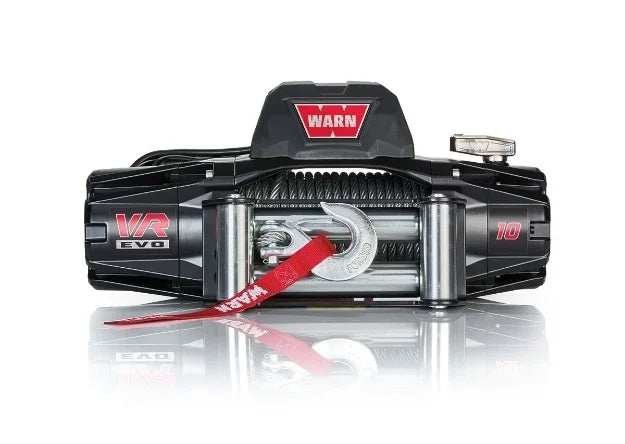

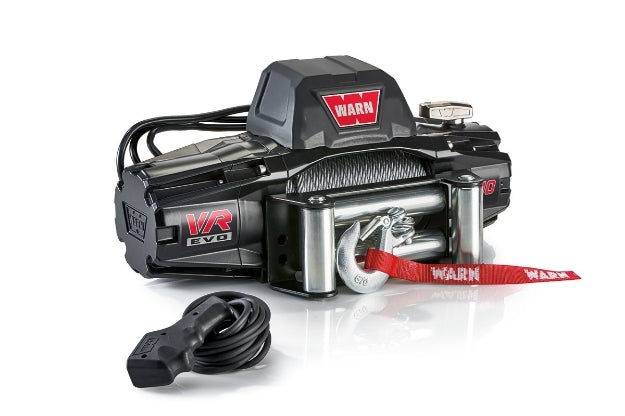

WARN VR EVO 10 Winch 10,000 lb Steel Rope Roller Fairlead – 103252

The WARN VR EVO 10 Winch is engineered for 1/2-ton pickups, Jeeps, and larger SUVs, offering the ideal balance of pulling power, line speed, and efficiency. With a 10,000 lb single-line pulling capacity, the VR EVO 10 is built to handle demanding recovery situations without excessive amp draw.

Featuring IP68-rated waterproof construction, the VR EVO 10 is fully sealed against water, mud, and dust. A premium Albright® contactor housed in a relocatable control pack ensures reliable electrical performance while allowing clean, low-profile mounting options. Tactical styling, fast line speed under load, and a 2-in-1 wired and wireless remote make this one of WARN’s most capable standard-duty winches.

Key Features

• 10,000 lb single-line pulling capacity

• 12V electric operation

• IP68-rated waterproof winch construction

• Series-wound motor with 3-stage planetary gear train

• High-reliability Albright® contactor

• Relocatable control pack for flexible mounting options

• 90 ft steel wire rope

• Roller fairlead included

• 2-in-1 wired and wireless handheld remote

• One-piece cast-aluminum tie-plate for added strength

Technical Specifications

• Voltage: 12V DC

• Gear Ratio: 218:1

• Drive Style: 3-stage planetary

• Brake Type: Spring

• Free Spooling: Yes

• Max Line Pull: 10,000 lbs

• Max Amp Draw: 358 amps @ max load

• Line Speed (Max Load): 5.2 ft/min

• Rope Diameter: 0.354 in (approx. 3/8 in)

• Rope Length: 90 ft

• Rope Material: Steel

• Fairlead Type: Roller

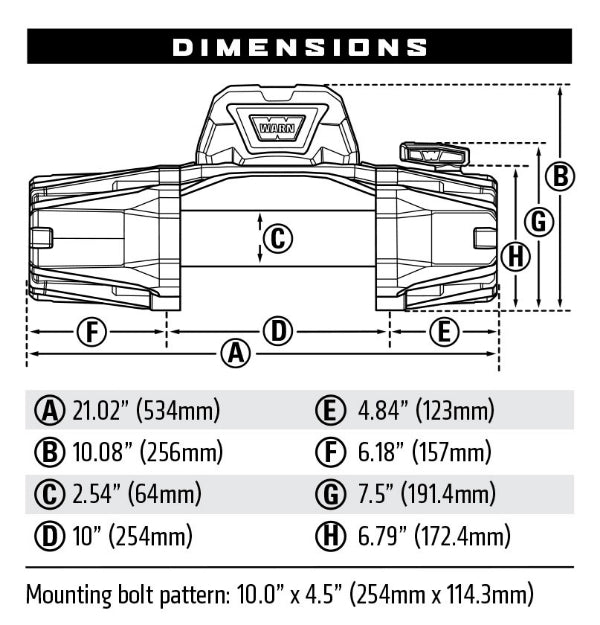

• Mounting Pattern: 4.5 x 10 inches

• Mounting Holes: 4

• Drum Material: Steel

• Color: Black

What’s Included

• WARN VR EVO 10 Winch

• 90 ft Steel Wire Rope

• Roller Fairlead

• Wired & Wireless Handheld Remote

• Relocatable Control Pack

• Mounting Hardware

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
