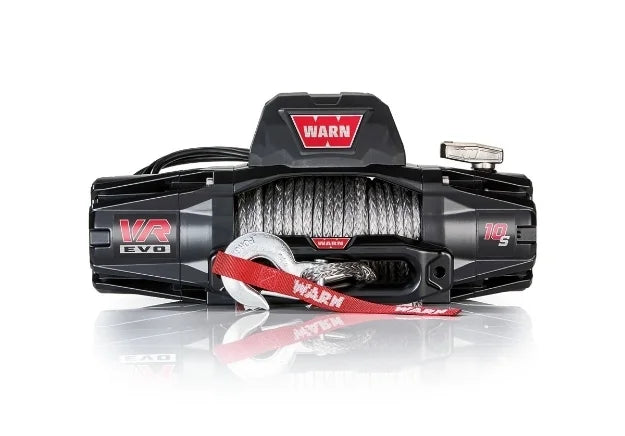

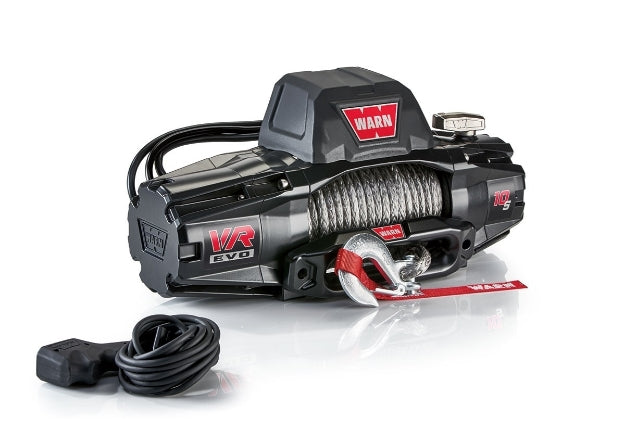

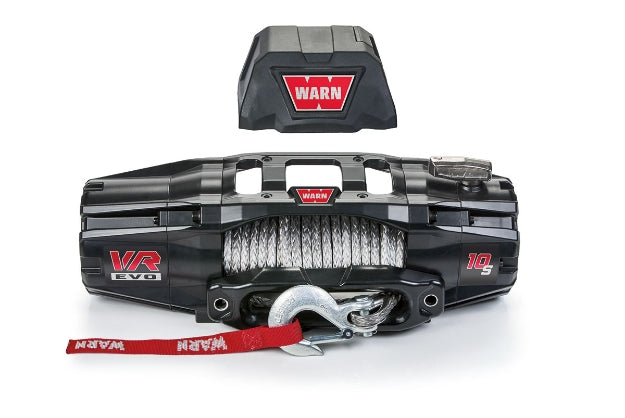

WARN VR EVO 10-S Winch 10,000 lb Synthetic Rope – 103253

The WARN VR EVO 10-S Winch is engineered for 1/2-ton pickups, Jeeps, and larger SUVs, delivering the ideal combination of pulling power, fast line speed, and reduced amp draw. With a 10,000 lb single-line pulling capacity, the VR EVO 10-S is built to handle demanding recovery situations while maintaining efficient electrical performance.

Featuring IP68-rated waterproof construction, this winch is fully sealed against water, mud, and dust. A premium Albright® contactor housed in a relocatable control pack ensures reliable electrical operation and allows for clean, low-profile installations. The included synthetic rope reduces overall weight and improves safety, while the 2-in-1 wired and wireless remote provides flexible control on and off the trail.

Key Features

• 10,000 lb single-line pulling capacity

• 12V electric operation

• IP68-rated waterproof winch construction

• Series-wound motor with 3-stage planetary gear train

• High-reliability Albright® contactor

• Relocatable control pack for flexible mounting options

• 90 ft of 3/8-inch synthetic rope

• Hawse fairlead included

• 2-in-1 wired and wireless handheld remote

• One-piece cast-aluminum tie-plate for added strength

Technical Specifications

• Voltage: 12V DC

• Gear Ratio: 218:1

• Drive Style: 3-stage planetary

• Brake Type: Spring

• Free Spooling: Yes

• Max Line Pull: 10,000 lbs

• Max Amp Draw: 358 amps @ max load

• Line Speed (Max Load): 5.2 ft/min

• No-Load Line Speed: 27.1 ft/min

• Rope Diameter: 3/8 in

• Rope Length: 90 ft

• Rope Material: Synthetic

• Fairlead Type: Hawse

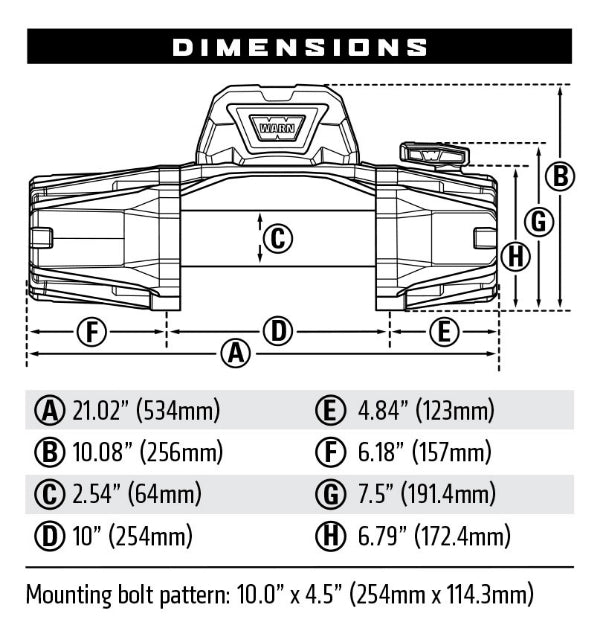

• Mounting Pattern: 4.5 x 10 inches

• Mounting Holes: 4

• Drum Material: Steel

• Color: Black

• Weight: 72.4 lbs

What’s Included

• WARN VR EVO 10-S Winch

• 90 ft Synthetic Rope

• Hawse Fairlead

• Wired & Wireless Handheld Remote

• Relocatable Control Pack

• Mounting Hardware

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
