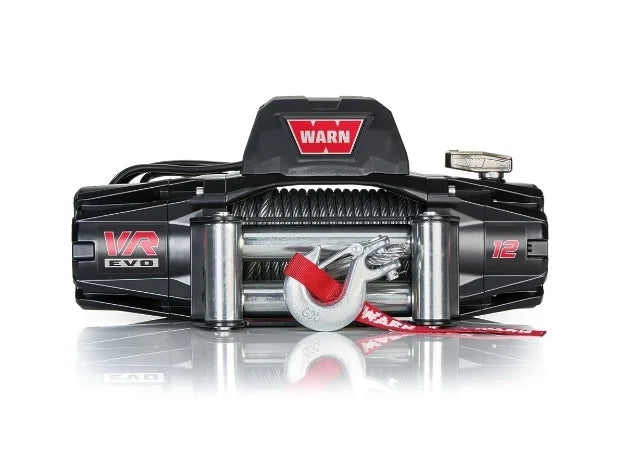

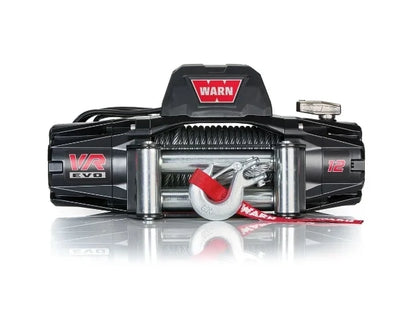

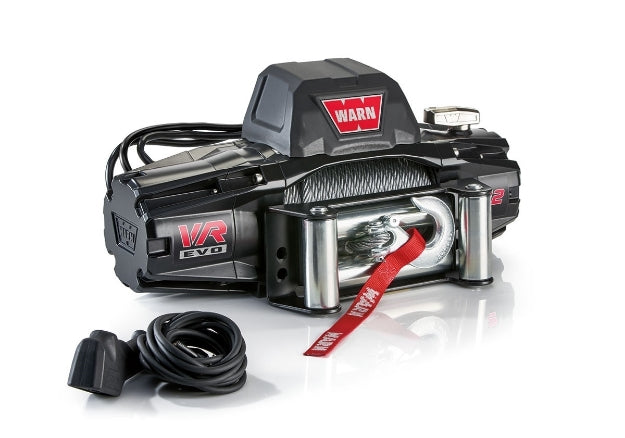

WARN VR EVO 12 Winch 12,000 lb Steel Rope Roller Fairlead – 103254

The WARN VR EVO 12 Winch is designed for 3/4-ton and 1-ton pickups and large-frame off-road rigs that demand serious pulling power and reliability. With a 12,000 lb single-line pulling capacity, the VR EVO 12 is built for long, heavy recovery pulls while maintaining fast line speed and lower amp draw.

Featuring IP68-rated waterproof construction, the VR EVO 12 is fully sealed against water, mud, and debris. A premium Albright® contactor housed in a relocatable control pack ensures dependable electrical performance and allows for clean, low-profile mounting options. Tactical styling, a durable aluminum tie-plate, and a 2-in-1 wired and wireless remote make this one of WARN’s most capable standard-duty winches.

Key Features

• 12,000 lb single-line pulling capacity

• 12V electric operation

• IP68-rated waterproof winch construction

• Series-wound motor with 3-stage planetary gear train

• High-reliability Albright® contactor

• Relocatable control pack for flexible mounting options

• 85 ft of 3/8-inch steel wire rope

• Roller fairlead included

• 2-in-1 wired and wireless handheld remote

• One-piece cast-aluminum tie-plate for added strength

Technical Specifications

• Voltage: 12V DC

• Gear Ratio: 234:1

• Drive Style: 3-stage planetary

• Brake Type: Spring

• Free Spooling: Yes

• Max Line Pull: 12,000 lbs

• Max Amp Draw: 396 amps @ max load

• Line Speed (Max Load): 4.0 ft/min

• No-Load Line Speed: 26.2 ft/min

• Rope Diameter: 3/8 in

• Rope Length: 85 ft

• Rope Material: Steel

• Fairlead Type: Roller

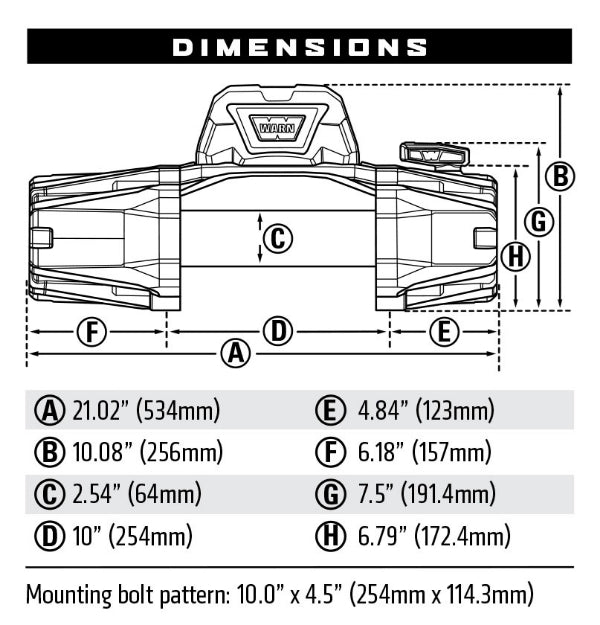

• Mounting Pattern: 4.5 x 10 inches

• Mounting Holes: 4

• Drum Material: Steel

• Color: Black

• Weight: 90.81 lbs

What’s Included

• WARN VR EVO 12 Winch

• 85 ft Steel Wire Rope

• Roller Fairlead

• Wired & Wireless Handheld Remote

• Relocatable Control Pack

• Mounting Hardware

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
