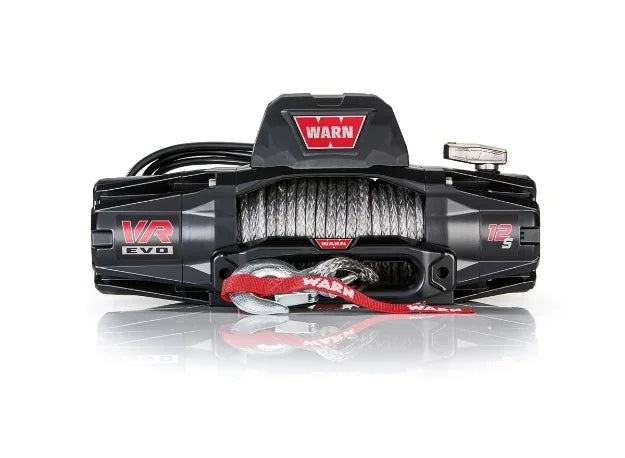

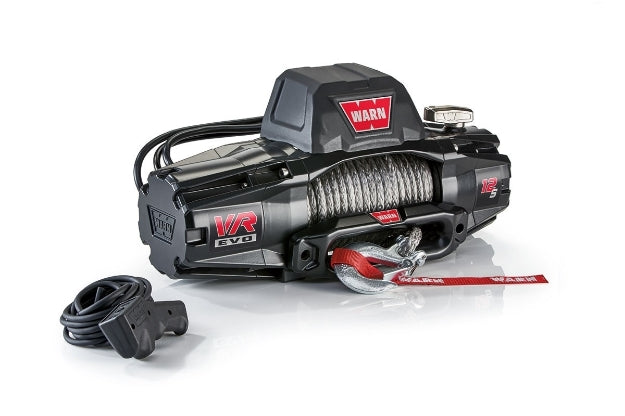

WARN VR EVO 12-S Winch 12,000 lb Synthetic Rope – 103255

The WARN VR EVO 12-S Winch is built for 3/4-ton and 1-ton trucks, large SUVs, and heavy off-road rigs that demand reliable pulling power without the cost of a premium competition winch. Delivering a robust 12,000 lb single-line pulling capacity, the VR EVO 12-S combines fast line speed, efficient power draw, and rugged durability in a clean, tactical package.

Featuring IP68-rated waterproof construction, the VR EVO 12-S is sealed against water, mud, and debris for dependable performance in harsh conditions. A series-wound motor paired with a 3-stage planetary geartrain provides strong, consistent pulls with lower amp draw, while the Albright® contactor ensures long-term electrical reliability. The relocatable control pack allows flexible installation options for low-profile mounting setups.

This model includes 90 feet of 3/8-inch synthetic rope for reduced weight and improved safety, paired with a hawse fairlead. Control is handled through a 2-in-1 wired and wireless remote, giving you flexibility whether you’re close to the rig or operating from a distance.

Key Features

• 12,000 lb single-line pulling capacity

• 12V electric recovery winch

• IP68-rated waterproof construction

• Series-wound motor with efficient power draw

• 3-stage planetary geartrain

• High-reliability Albright contactor

• Relocatable control pack for flexible mounting

• 90 ft of 3/8-inch synthetic rope

• Hawse fairlead included

• Wired + wireless remote control

Technical Specifications

• Voltage: 12V DC

• Drive Style: 3-stage planetary

• Gear Ratio: 234:1

• Brake Type: Spring brake

• Free Spooling: Yes

• Max Line Pull: 12,000 lbs

• Max Line Speed (Rated Load): 4.0 ft/min

• Line Speed (No Load): 26.2 ft/min

• Max Amp Draw: 396 amps @ max load

• Rope Diameter: 3/8 in

• Rope Length: 90 ft

• Rope Material: Synthetic

• Fairlead Type: Hawse

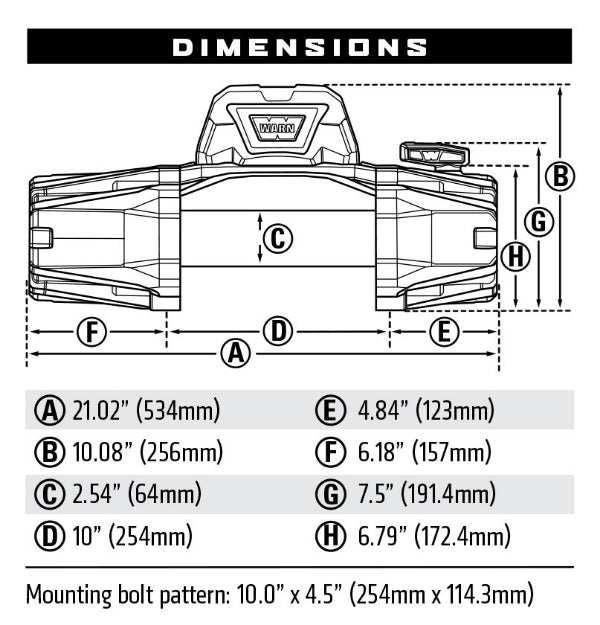

• Mounting Pattern: 4.5 × 10 inches

• Mounting Holes: 4

• Drum Material: Steel

• Color: Black

• Weight: Approx. 72.27 lbs

• Mounting Hardware: Included

What’s Included

• WARN VR EVO 12-S Winch

• 90 ft Synthetic Rope

• Hawse Fairlead

• Wired Handheld Remote (12 ft lead)

• Wireless Remote Capability

• Control Pack

• Mounting Hardware

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
