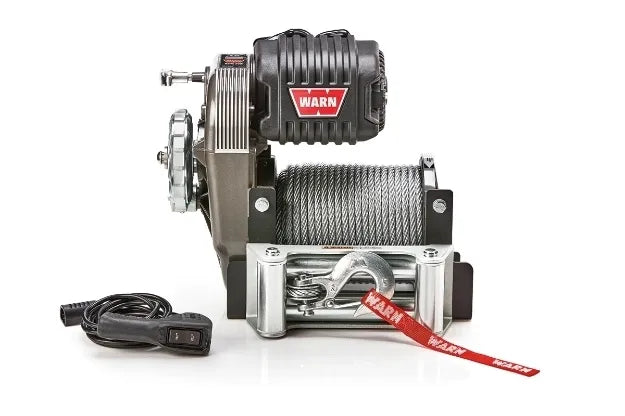

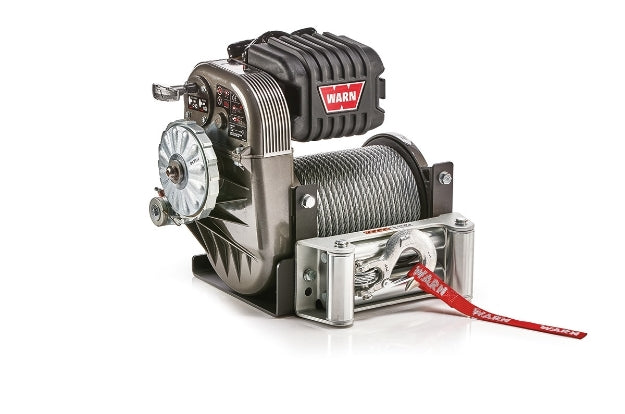

WARN M8274 Winch 10,000 lb Steel Rope Upright – 106170

The WARN M8274 Winch is the evolution of the most iconic winch ever built. Known for its upright design, unmatched speed, and extreme durability, the M8274 now delivers a 10,000 lb single-line pulling capacity, making it ideal for today’s heavier trucks and off-road rigs while preserving the legendary WARN shape enthusiasts trust.

Powered by a high-output 6 HP series-wound motor and a 3-stage spur gear drivetrain, the M8274 delivers the fastest line speed of any WARN winch with exceptional control. An IP68-rated Albright electrical contactor ensures reliability in harsh environments, while modern internal upgrades improve durability during extreme recovery conditions. This version comes equipped with 125 feet of 3/8-inch aircraft-grade steel rope and a roller fairlead for smooth, controlled operation.

Manufactured in Clackamas, Oregon, USA, the M8274 blends classic WARN heritage with modern performance upgrades—continuing its legacy as the benchmark for upright winch design.

Key Features

• 10,000 lb single-line pulling capacity

• Legendary upright WARN M8274 design

• 12V electric operation

• High-output 6 HP series-wound motor

• 3-stage spur gear drivetrain for maximum speed

• IP68-rated Albright contactor

• Ergonomic stainless steel clutch T-handle

• 125 ft of 3/8-inch aircraft-grade steel rope

• Roller fairlead included

• Made in the USA

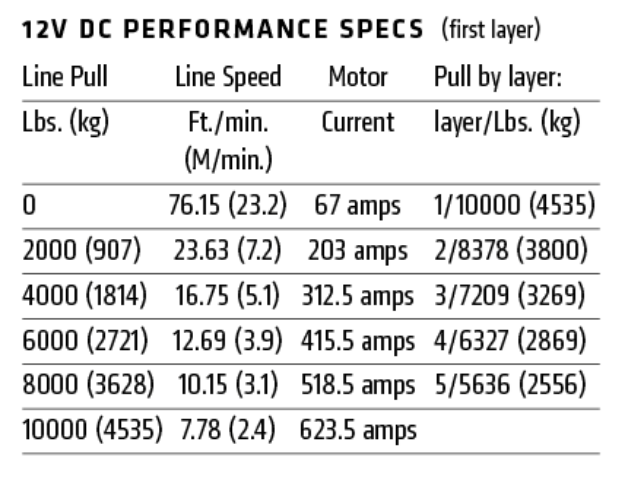

Technical Specifications

• Voltage: 12V DC

• Motor Output: 6.0 HP

• Gear Ratio: 134:1

• Drive Style: 3-stage spur gear

• Brake Type: Automatic disc brake

• Free Spooling: Yes (sliding motor pinion gear)

• Rated Line Pull: 10,000 lbs

• Rope Diameter: 3/8 in

• Rope Length: 125 ft

• Rope Material: Steel

• Fairlead Type: Roller

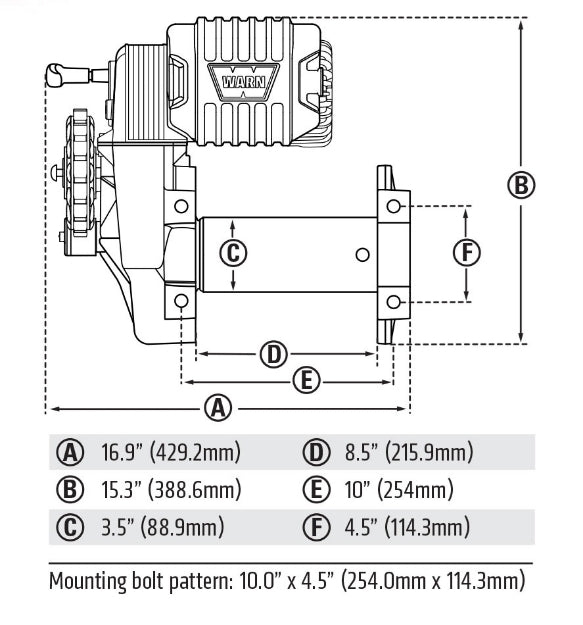

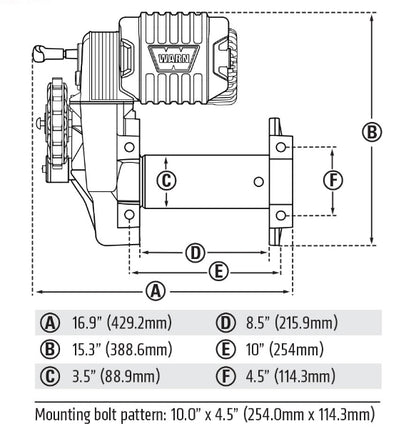

• Mounting Pattern: 4.5 × 10 inches

• Recommended Battery: Minimum 650 CCA

• Battery Leads: 2-gauge, 72 in

• Finish: Powder coat with clear coat

• Weight: Approx. 90 lbs

What’s Included

• WARN M8274 Winch

• 125 ft Steel Wire Rope

• Roller Fairlead

• Wired Handheld Remote (12 ft cord)

• Control Pack

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
