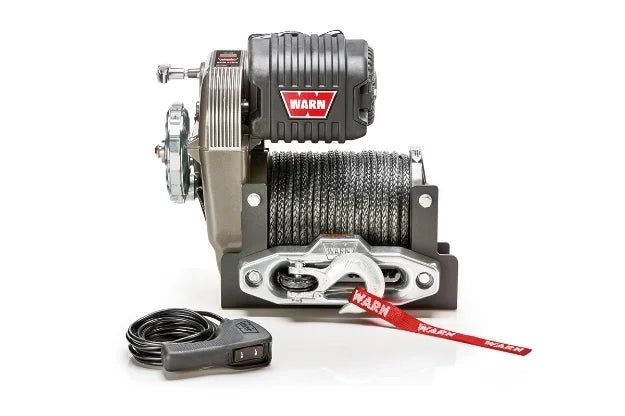

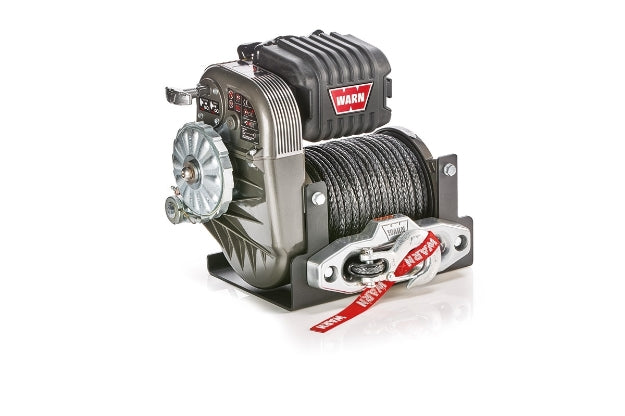

WARN M8274-S Winch 10,000 lb Synthetic Rope Upright – 106175

The WARN M8274-S Winch is the modern evolution of the most iconic winch ever built. Famous for its upright design, unmatched line speed, and extreme durability, the M8274-S now delivers a 10,000 lb single-line pulling capacity, making it ideal for today’s heavier off-road vehicles while preserving the classic WARN look enthusiasts love.

Powered by a high-output 6 HP series-wound motor and a 3-stage spur gear drivetrain, the M8274-S provides industry-leading speed and consistent pulling power. An IP68-rated Albright electrical contactor ensures maximum reliability in wet and harsh conditions. The winch includes 150 feet of 3/8-inch WARN Spydura™ synthetic rope, reducing weight while improving safety, paired with a forged aluminum hawse fairlead.

Manufactured in Clackamas, Oregon, USA, the M8274-S blends proven design with modern upgrades such as an ergonomic stainless steel clutch T-handle, improved internal durability, and a restyled control pack housing—making it one of the most capable and recognizable winches on the trail.

Key Features

• 10,000 lb single-line pulling capacity

• Upright WARN M8274 design with legendary speed

• 12V electric operation

• High-output 6 HP series-wound motor

• 3-stage spur gear drivetrain

• IP68-rated Albright contactor

• Ergonomic stainless steel clutch T-handle

• 150 ft of 3/8-inch WARN Spydura™ synthetic rope

• Forged aluminum hawse fairlead included

• Made in the USA

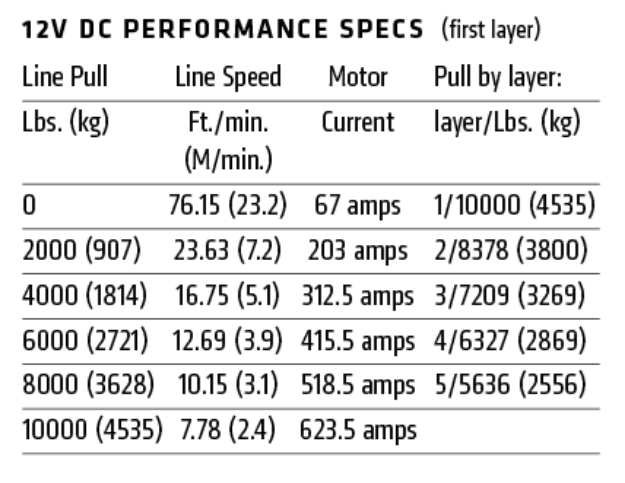

Technical Specifications

• Voltage: 12V DC

• Motor Output: 6.0 HP

• Gear Ratio: 134:1

• Drive Style: 3-stage spur gear

• Brake Type: Automatic disc brake

• Free Spooling: Yes (sliding motor pinion gear)

• Rated Line Pull: 10,000 lbs

• Rope Diameter: 3/8 in

• Rope Length: 150 ft

• Rope Material: Synthetic (Spydura)

• Fairlead Type: Forged aluminum hawse

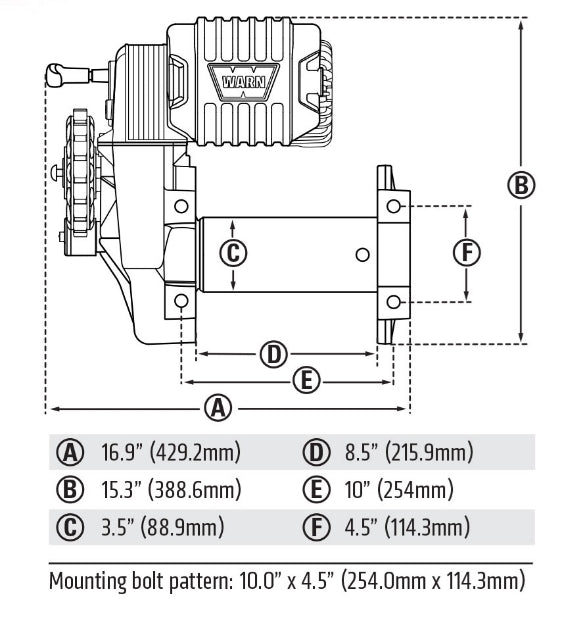

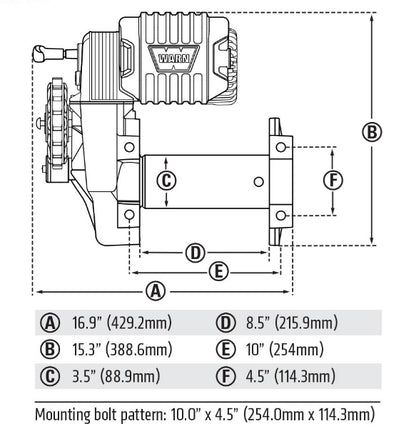

• Mounting Pattern: 4.5 × 10 inches

• Recommended Battery: Minimum 650 CCA

• Battery Leads: 2-gauge, 72 in

• Finish: Powder coat with clear coat

• Weight: Approx. 90 lbs

What’s Included

• WARN M8274-S Winch

• 150 ft Spydura™ Synthetic Rope

• Forged Aluminum Hawse Fairlead

• Wired Handheld Remote (12 ft cord)

• Control Pack

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
