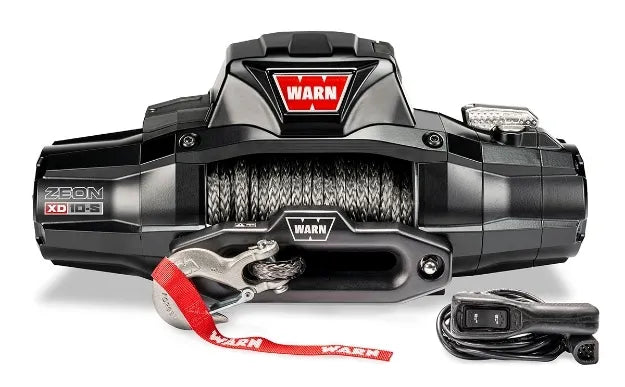

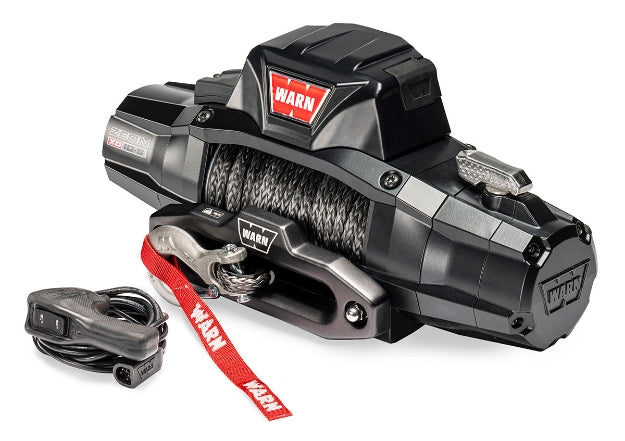

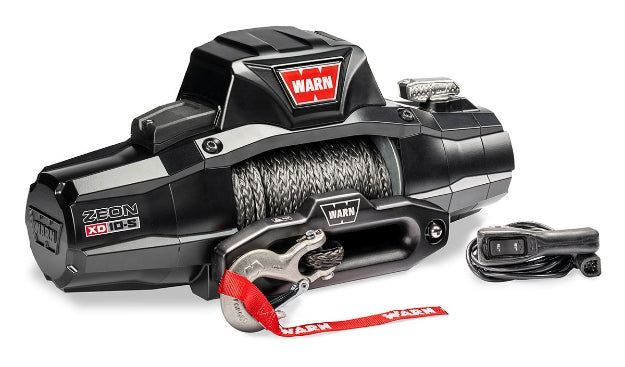

WARN ZEON XD 10-S Winch 10,000 lb Synthetic Rope – 110010

The WARN ZEON XD 10-S Winch is engineered for extreme reliability when recovery absolutely matters. Designed, tested, and assembled in the USA, this premium winch delivers a 10,000 lb single-line pulling capacity combined with class-leading line speed, advanced waterproof protection, and modern wireless control capability.

Redesigned from the ground up, the ZEON XD platform features a high-efficiency series-wound motor and optimized planetary geartrain, delivering blazing fast no-load line speeds of up to 40 ft/min, the fastest in its class. The entire winch is sealed to IP68 submersion and IP69K high-pressure spray standards, making it one of the most weatherproof and corrosion-resistant winches on the market.

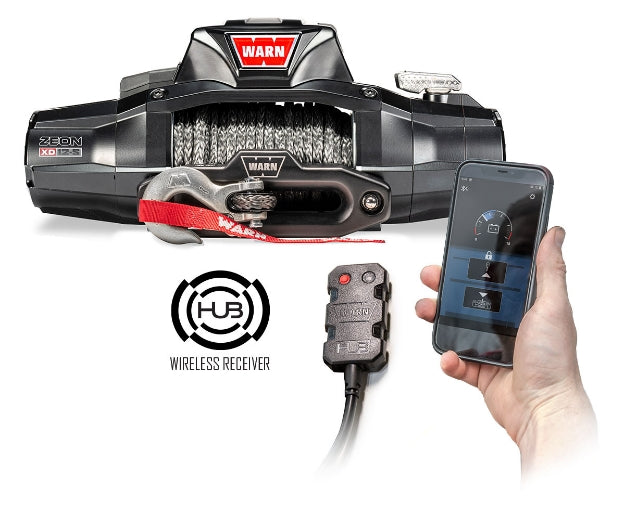

The ZEON XD 10-S includes WARN Spydura™ synthetic rope, offering lightweight strength with heat-resistant inner wraps and an abrasion sleeve, paired with a forged 6061-T6 black anodized aluminum hawse fairlead for maximum durability and clean looks. Control options include a waterproof corded remote and the included HUB wireless receiver, providing 100+ feet of wireless range when paired with the WARN HUB app.

Key Features

• 10,000 lb single-line pulling capacity

• 12V electric premium recovery winch

• Fastest no-load line speed in its class (up to 40 ft/min)

• IP68 submersion & IP69K high-pressure spray rated (entire unit)

• High-performance series-wound motor with optimized geartrain

• Full metal armor for impact protection

• Albright contactor with OEM-grade bus bars

• 100 ft of 3/8-inch WARN Spydura™ synthetic rope

• Forged black anodized aluminum hawse fairlead

• Includes corded remote + HUB wireless receiver

• Assembled in Clackamas, Oregon, USA

Technical Specifications

• Voltage: 12V DC

• Rated Line Pull: 10,000 lbs (single line)

• Gear Ratio: 141:1

• Drive Style: 3-stage planetary

• Brake Type: Automatic six-segment mechanical cone

• Free Spooling: Yes (rotating ring gear clutch)

• No-Load Line Speed: 40 ft/min

• Rated Load Line Speed: 5 ft/min

• No-Load Motor Current: 64 amps

• Rated Load Motor Current: 458 amps

• Rope Diameter: 3/8 in

• Rope Length: 100 ft

• Rope Material: Synthetic (Spydura)

• Fairlead Type: Forged aluminum hawse

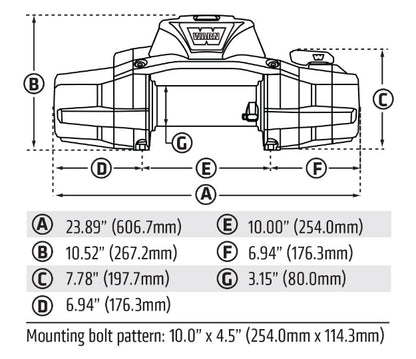

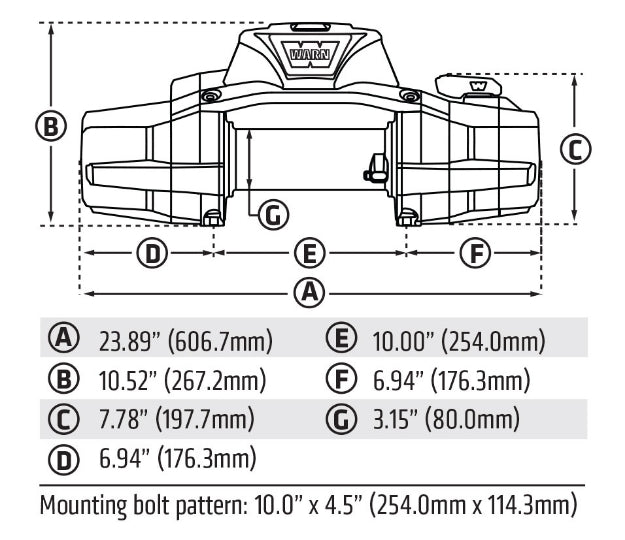

• Mounting Pattern: 4.5 × 10 inches

• Recommended Battery: Minimum 650 CCA

• Battery Leads: 2-gauge, 72 in

• Finish: Satin-black powder coat

• Weight: Approx. 85 lbs (boxed)

What’s Included

• WARN ZEON XD 10-S Winch

• 100 ft Spydura™ Synthetic Rope

• Forged Aluminum Hawse Fairlead

• Corded Handheld Remote (12 ft lead)

• HUB Wireless Receiver

• Control Pack

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
