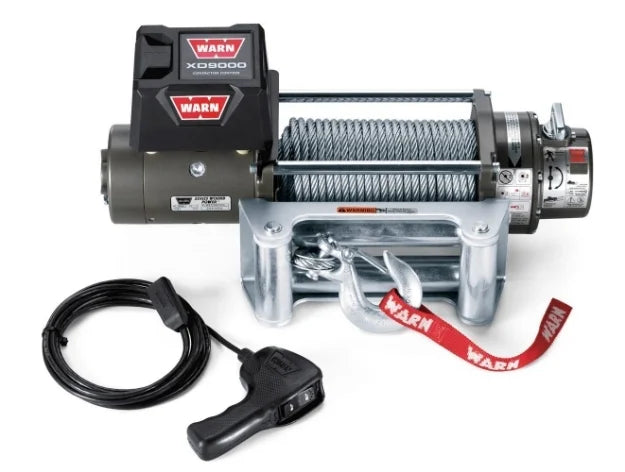

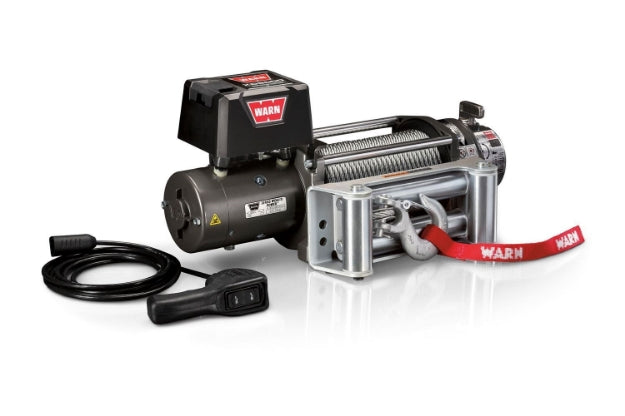

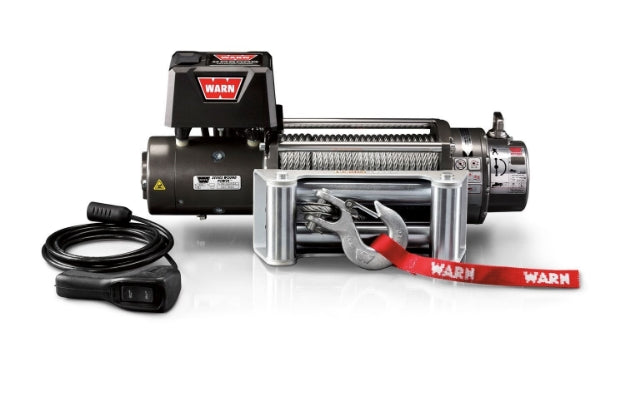

WARN XD9 Winch 9,000 lb Steel Rope Roller Fairlead – 28500

The WARN XD9 Winch is a long-time best seller and one of the most trusted winches in WARN’s lineup. Delivering a 9,000 lb single-line pulling capacity, the XD9 combines classic WARN design, fast line speed, and a compact, low-profile housing that fits a wide range of vehicles and mounting configurations.

Its separate control pack allows flexible installation in tight spaces, while a high-speed series-wound motor and 3-stage planetary geartrain provide smooth, reliable pulling performance. Finished in a durable, chip-resistant powder coat and backed by WARN’s industry-leading warranty, the XD9 remains a proven choice for trucks, Jeeps, and SUVs.

Key Features

• 9,000 lb single-line pulling capacity

• 12V electric operation

• Compact, low-profile winch design

• Separate control box for flexible mounting

• Series-wound motor for fast line speed

• Durable 3-stage planetary geartrain

• Exclusive mechanical cone brake for controlled winching

• 100 ft of 5/16-inch galvanized steel wire rope

• Roller fairlead included

• Chip-resistant powder-coated finish

Technical Specifications

• Voltage: 12V

• Motor Output: 4.6 HP

• Gear Ratio: 156:1

• Drive Style: 3-stage planetary

• Brake Type: Mechanical cone

• Free Spooling: Yes

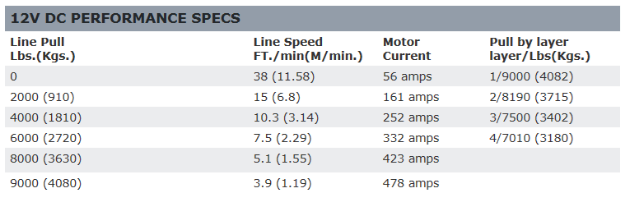

• Max Line Pull: 9,000 lbs

• Max Amp Draw: 478 amps @ max load

• Line Speed (Max Load): 3.9 ft/min

• No-Load Line Speed: 38 ft/min

• Rope Diameter: 5/16 in

• Rope Length: 100 ft

• Rope Material: Steel

• Fairlead Type: Roller

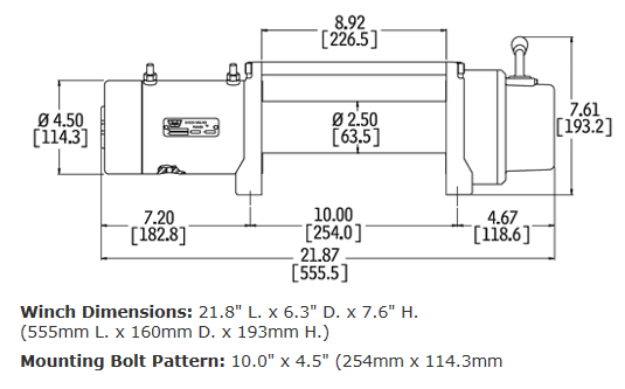

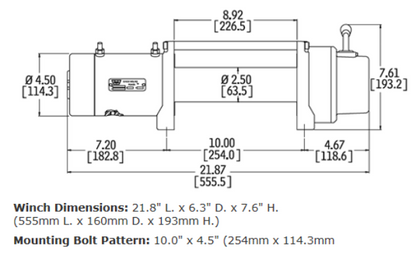

• Mounting Pattern: 4.5 × 10 inches

• Mounting Holes: 4

• Color: Gray

• Weight: 78 lbs

• Mounting Hardware: Not included

What’s Included

• WARN XD9 Winch

• 100 ft Steel Wire Rope

• Roller Fairlead

• Wired Handheld Remote (12 ft cord)

• Control Pack

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
