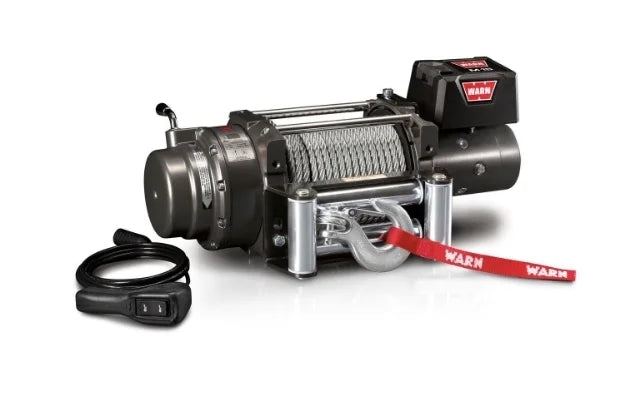

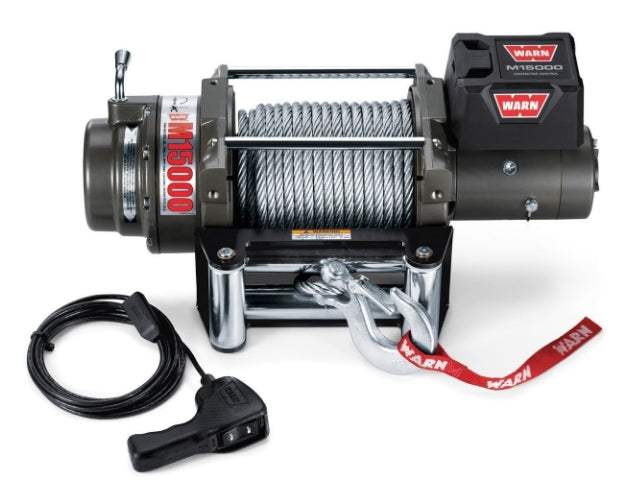

WARN M15 Heavyweight Winch 15,000 lb Steel Rope – 47801

The WARN M15 Heavyweight Winch is built for full-size trucks, recovery vehicles, and extreme-duty applications that demand serious pulling power. With a massive 15,000 lb single-line pulling capacity, the M15 is engineered to withstand the stresses of heavy winching while delivering reliable, controlled performance.

Its large-frame architecture and high-strength carrier plates are designed to handle extreme geartrain loads, while a best-in-class automatic mechanical cone brake securely holds the full rated load. A removable, remote-mount control pack provides flexible installation options for improved clearance and serviceability. Finished in a chip-resistant argent gray powder coat, the M15 delivers long-term durability in harsh environments.

Key Features

• 15,000 lb single-line pulling capacity

• 12V electric heavyweight recovery winch

• Large-frame construction for extreme durability

• High-strength carrier plates

• Series-wound motor for strong, consistent pulls

• 3-stage planetary geartrain

• Automatic mechanical cone brake

• Remote-mount control box for flexible installation

• 90 ft of 7/16-inch steel wire rope

• Roller fairlead included

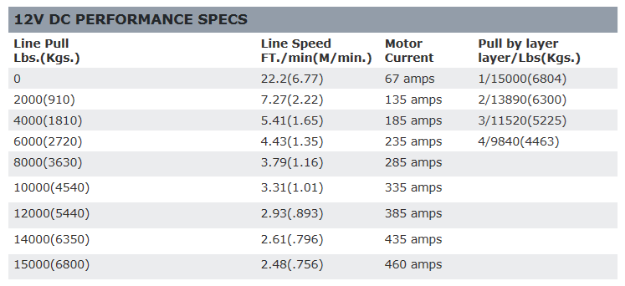

Technical Specifications

• Voltage: 12V DC

• Motor Type: Series Wound (approx. 4.6 HP)

• Gear Ratio: 315:1

• Drive Style: 3-stage planetary

• Brake Type: Automatic mechanical cone

• Free Spooling: Yes (rotating ring gear clutch)

• Rated Line Pull: 15,000 lbs

• Line Speed (No Load): 22.2 ft/min

• Rope Diameter: 7/16 in

• Rope Length: 90 ft

• Rope Material: Steel

• Fairlead Type: Roller

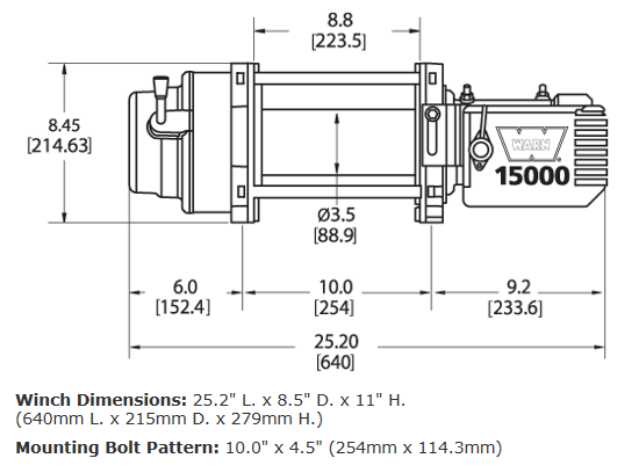

• Mounting Pattern: 4.5 × 10 inches

• Recommended Battery: Minimum 650 CCA

• Battery Leads: 2-gauge, 72 in

• Finish: Argent Gray Powder Coat

• Weight: Approx. 135–136 lbs

What’s Included

• WARN M15 Heavyweight Winch

• 90 ft Steel Wire Rope

• Roller Fairlead

• Wired Handheld Remote (12 ft cord)

• Control Pack

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
