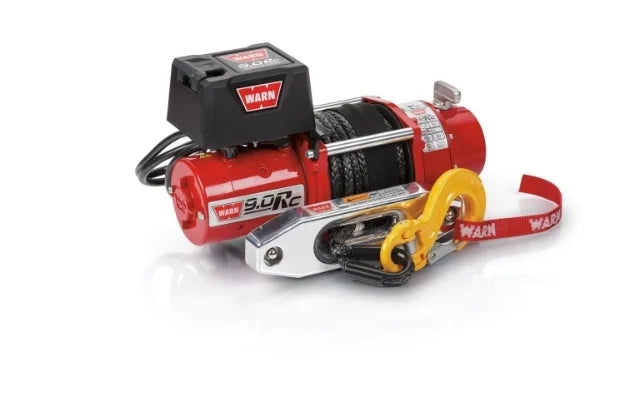

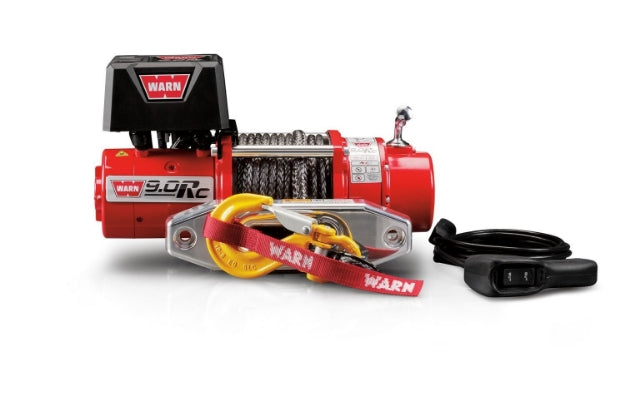

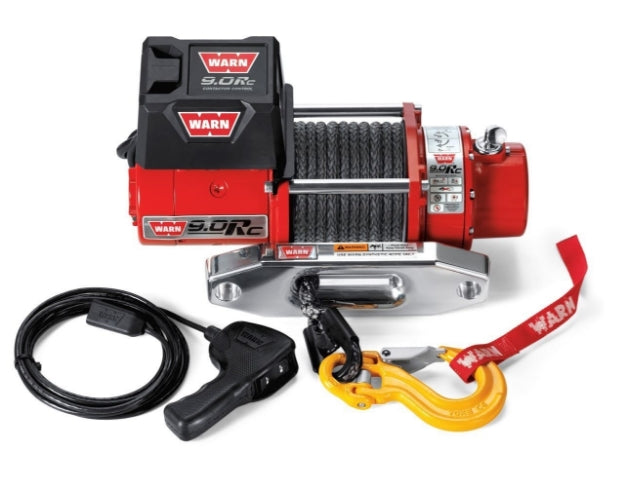

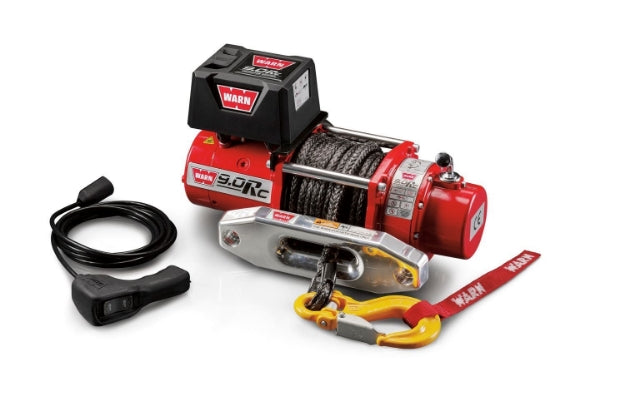

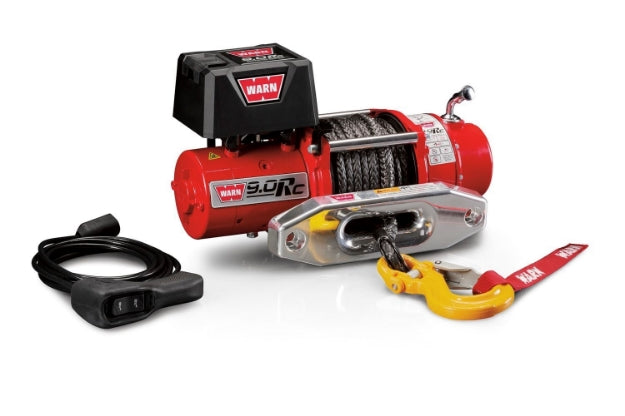

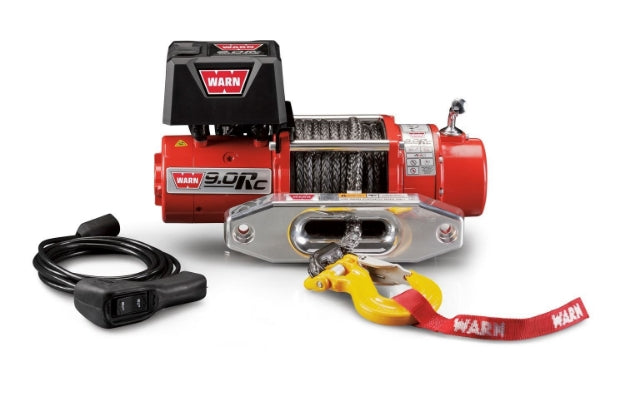

WARN 9.0Rc Winch 9,000 lb Synthetic Rope Hawse – 71550

The WARN 9.0Rc Winch is purpose-built for competitive rock crawling and extreme off-road use, delivering maximum pulling power in a compact, lightweight package. With a 9,000 lb single-line pulling capacity and a low-profile design weighing just 54 lbs, the 9.0Rc is ideal for rigs that demand performance without added bulk.

A powerful 4.8 HP series-wound motor provides fast line speed under load, while the next-generation control pack supports extended duty cycles during intense recovery situations. The winch includes 50 feet of WARN synthetic rope, a 360-degree swivel hook, protective ballistic nylon sleeve, and an aluminum hawse fairlead for smooth and controlled winching. Finished in gloss red powder coat, the 9.0Rc delivers standout looks and proven WARN durability.

Key Features

• 9,000 lb single-line pulling capacity

• Lightweight, low-profile rock crawling winch

• 12V electric operation

• 4.8 HP series-wound motor for fast line speed

• Next-generation control pack for extended duty cycles

• 50 ft of 3/8-inch synthetic rope

• Ballistic nylon rope sleeve for abrasion protection

• 360-degree swivel hook with thimble

• Aluminum hawse fairlead included

• Exclusive multi-segment cam-actuated brake

• Gloss red powder-coated finish

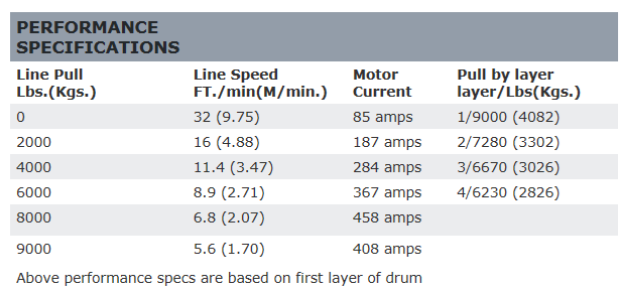

Technical Specifications

• Voltage: 12V

• Motor Output: 4.8 HP

• Gear Ratio: 216:1

• Drive Style: 3-stage planetary

• Brake Type: Mechanical cone

• Free Spooling: Yes

• Max Line Pull: 9,000 lbs

• Max Amp Draw: 408 amps @ max load

• Line Speed (Max Load): 5.6 ft/min

• Rope Diameter: 3/8 in

• Rope Length: 50 ft

• Rope Material: Synthetic

• Fairlead Type: Hawse

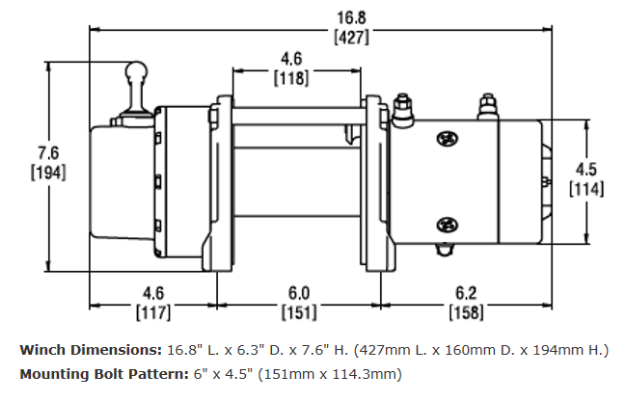

• Mounting Pattern: 4.5 x 6 inches

• Mounting Holes: 4

• Color: Red

• Weight: 54 lbs

• Mounting Hardware: Not included

What’s Included

• WARN 9.0Rc Winch

• 50 ft Synthetic Rope

• Aluminum Hawse Fairlead

• Wired Handheld Remote (12 ft cord)

• Control Pack

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
