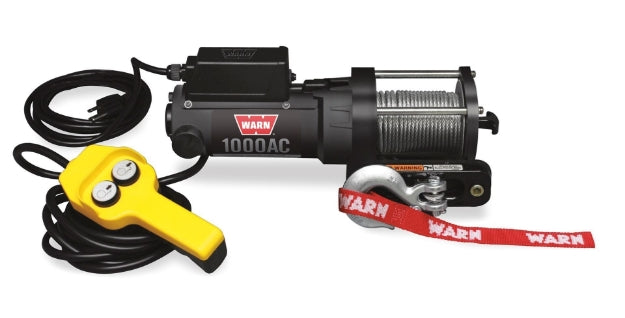

WARN 1000 AC Electric Winch 1,000 lb 120V Utility – 80010

The WARN 1000 AC Electric Winch is a compact, portable 120V utility winch designed for shops, garages, and indoor worksites where AC power is readily available. Delivering a 1,000 lb pulling capacity, this winch provides dependable performance for pulling, dragging, and general utility tasks.

Built with durable planetary gearing and a 0.8-horsepower permanent magnet motor, the 1000 AC offers smooth operation and a long duty cycle. A self-braking transmission provides controlled load handling, while the included pendant-style remote and 43 ft steel wire rope allow safe and flexible operation. Legendary WARN reliability makes this a trusted tool for everyday utility work.

Key Features

• 1,000 lb pulling capacity

• 120V AC electric operation

• Portable utility winch design

• 43 ft of 3/16-inch steel wire rope

• Hawse fairlead included

• Planetary gear drive for smooth performance

• Self-braking transmission for controlled pulling

• Pendant-style wired remote with 10 ft lead

• Circuit breaker protected electrical system

Technical Specifications

• Voltage: 120V AC

• Motor Output: 0.8 HP

• Motor Type: Permanent Magnet

• Gear Ratio: 261:1

• Drive Style: Differential planetary

• Brake Type: Self-braking transmission

• Free Spooling: Yes

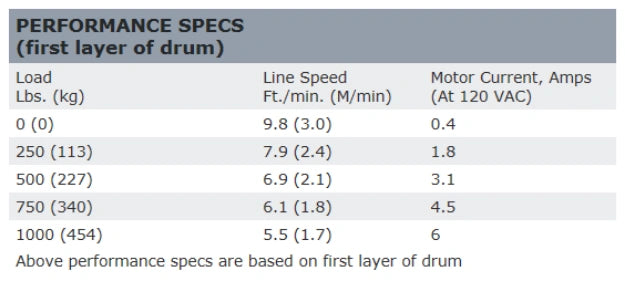

• Max Line Pull: 1,000 lbs

• Max Amp Draw: 6 amps @ max load

• Line Speed (Max Load): 5.5 ft/min

• No-Load Line Speed: 9.8 ft/min

• Rope Diameter: 3/16 in

• Rope Length: 43 ft

• Rope Material: Steel

• Fairlead Type: Hawse

• Mounting Pattern: 2.5 x 3.1 inches

• Mounting Holes: 4

• Color: Gray

• Weight: 26.5 lbs

What’s Included

• WARN 1000 AC Electric Winch

• 43 ft Steel Wire Rope

• Hawse Fairlead

• Pendant Remote (10 ft lead)

• Installation Instructions

Warranty

• Limited 1-Year Warranty
