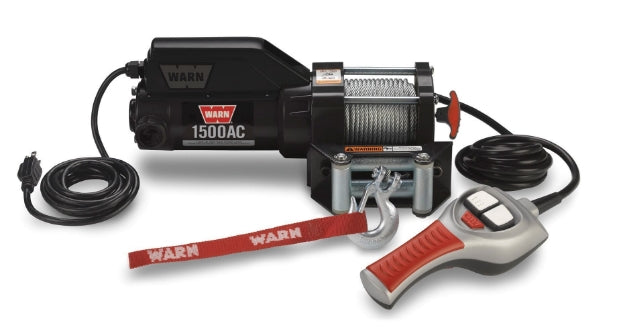

WARN 1500 AC Utility Winch 1,500 lb 120V Electric – 85330

The WARN 1500 AC Utility Winch is a compact, portable 120V electric utility winch designed for pulling, dragging, and general-purpose tasks where AC power is available. Delivering a 1,500 lb pulling capacity, this winch is ideal for utility work, shop use, trailers, and light-duty industrial applications.

Built with industrial-grade planetary gearing and a durable all-metal housing, the 1500 AC provides smooth, reliable operation and long service life. A 0.8-horsepower permanent magnet motor delivers consistent pulling power, while a vented motor end cap and externally serviceable brushes improve cooling and extend motor life. The included 10 ft pendant remote and 10 ft power cord provide flexibility and safe control during operation.

Key Features

• 1,500 lb pulling capacity

• 120V AC electric operation

• Portable utility winch design

• Industrial planetary gearing for smooth operation

• All-metal housing for durability

• 43 ft of 3/16-inch steel wire rope

• Roller fairlead included

• Pendant-style wired remote with 10 ft lead

• Circuit breaker protected electrical system

• Improved motor cooling for extended run time

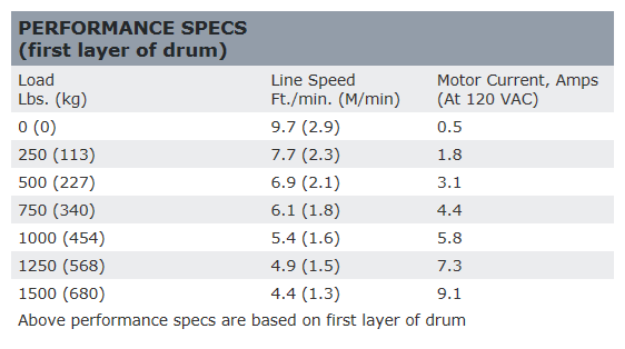

Technical Specifications

• Voltage: 120V AC

• Motor Output: 0.8 HP

• Motor Type: Permanent Magnet

• Gear Ratio: 261:1

• Drive Style: Differential planetary

• Brake Type: Self-braking transmission

• Free Spooling: Yes

• Max Line Pull: 1,500 lbs

• Max Amp Draw: 9.1 amps @ max load

• Line Speed (Max Load): 4.4 ft/min

• Rope Diameter: 3/16 in

• Rope Length: 43 ft

• Rope Material: Steel

• Fairlead Type: Roller

• Mounting Pattern: 2.5 x 3.1 inches

• Mounting Holes: 4

• Color: Black

What’s Included

• WARN 1500 AC Utility Winch

• 43 ft Steel Wire Rope

• Roller Fairlead

• Pendant Remote (10 ft lead)

• Power Cord (10 ft)

• Installation Instructions

Warranty

• WARN Limited Warranty
