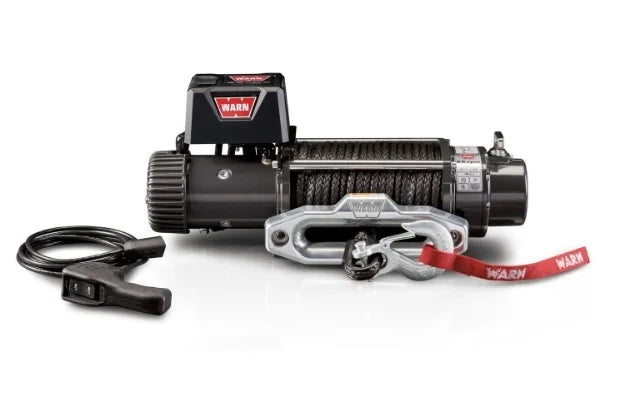

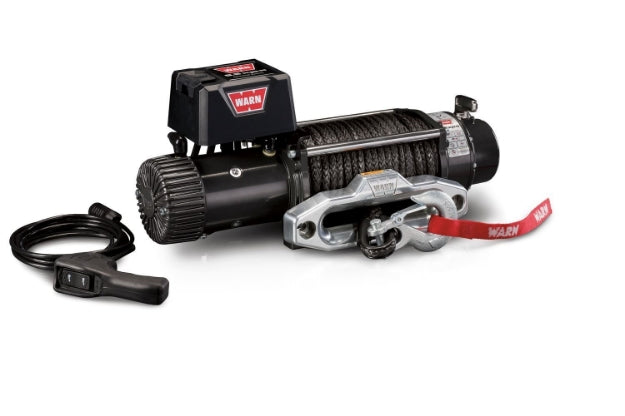

WARN 9.5XP-S Winch 9,500 lb Synthetic Rope Hawse – 87310

The WARN 9.5XP-S Winch is engineered for serious off-roaders and competition-level recovery, delivering extreme performance under the harshest conditions. With a 9,500 lb single-line pulling capacity and the fastest line speed of any WARN winch under load, the 9.5XP-S is built to dominate demanding recovery situations.

This winch features extreme-duty sealing for superior water and debris resistance, along with a high-output series-wound motor designed for sustained, high-load operation. A remote-mount control box allows flexible installation options, while the extended-duty control pack supports long duty cycles. The included WARN Spydura™ synthetic rope reduces weight and improves safety, paired with a matte aluminum hawse fairlead for smooth, controlled pulls.

Key Features

• 9,500 lb single-line pulling capacity

• 12V electric operation

• Extreme-duty sealing for harsh environments

• High-output series-wound motor for maximum performance

• 3-stage planetary gear train for strength and reliability

• Extended-duty control pack for long pulls

• Remote-mount control box for flexible installation

• 100 ft of 3/8-inch WARN Spydura™ synthetic rope

• Matte aluminum hawse fairlead included

• Wired handheld remote with 12 ft cord

• High-gloss, chip-resistant powder-coated finish

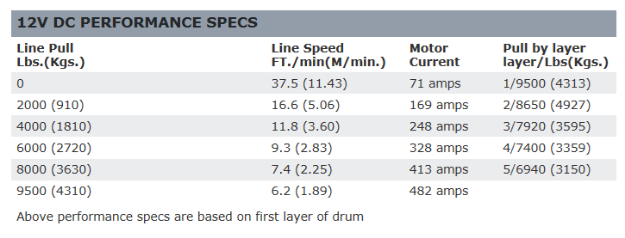

Technical Specifications

• Voltage: 12V

• Motor Output: 6.0 HP

• Gear Ratio: 156:1

• Drive Style: 3-stage planetary

• Brake Type: Mechanical cone

• Free Spooling: Yes

• Max Line Pull: 9,500 lbs

• Max Amp Draw: 482 amps @ max load

• Line Speed (Max Load): 6.2 ft/min

• Rope Diameter: 3/8 in

• Rope Length: 100 ft

• Rope Material: Synthetic

• Fairlead Type: Hawse

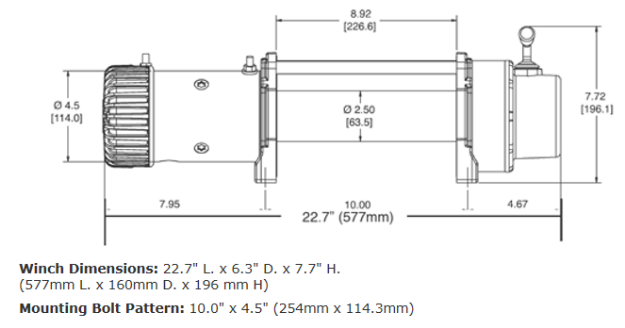

• Mounting Pattern: 4.5 x 10 inches

• Mounting Holes: 4

• Color: Gray

• Winch Mount: Not included

What’s Included

• WARN 9.5XP-S Winch

• 100 ft Spydura™ Synthetic Rope

• Matte Aluminum Hawse Fairlead

• Wired Handheld Remote (12 ft)

• Remote-Mount Control Box

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Geartrain

• Limited 7-Year Warranty on Electrical Components
