WARN M8-S Winch 8,000 lb Synthetic Rope Hawse Fairlead – 87800

The WARN M8-S Winch is a proven premium-series recovery winch trusted by off-roaders for more than two decades. Delivering an 8,000 lb single-line pulling capacity, the M8-S combines classic WARN engineering, durable construction, and outstanding value for trucks, Jeeps, and SUVs.

Designed with a low-profile housing and separate control box, the M8-S allows flexible mounting in a wide range of applications. A powerful 4.8 HP series-wound motor and 3-stage planetary gear train provide smooth, reliable pulls and fast line speed. The included WARN Spydura™ synthetic rope reduces weight while improving safety, paired with a polished aluminum hawse fairlead for smooth operation.

Key Features

• 8,000 lb single-line pulling capacity

• 12V electric operation

• Premium WARN M-Series design

• 100 ft of 3/8-inch Spydura™ synthetic rope

• Polished aluminum hawse fairlead included

• Series-wound 4.8 HP motor

• Durable 3-stage planetary gear train

• Low-profile design with separate control box

• Chip-resistant powder-coated finish

• Wired handheld remote with 12 ft cord

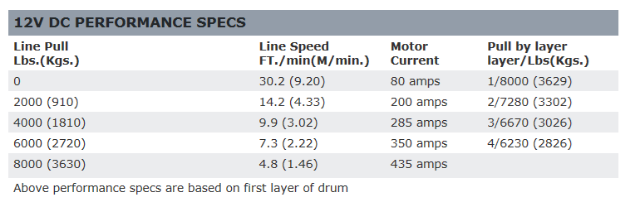

Technical Specifications

• Voltage: 12V

• Motor Output: 4.8 HP

• Gear Ratio: 216:1

• Drive Style: 3-stage planetary

• Brake Type: Mechanical cone

• Free Spooling: Yes

• Max Line Pull: 8,000 lbs

• Max Amp Draw: 435 amps @ max load

• Line Speed (Max Load): 4.8 ft/min

• Rope Diameter: 3/8 in

• Rope Length: 100 ft

• Rope Material: Synthetic

• Fairlead Type: Hawse

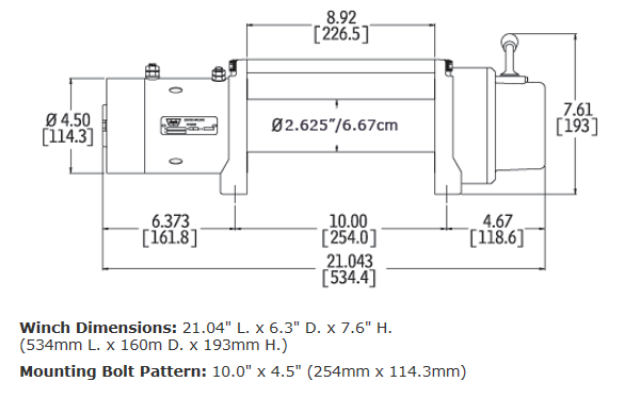

• Mounting Pattern: 4.5 x 10 inches

• Mounting Holes: 4

• Control Type: Contactors

What’s Included

• WARN M8-S Winch

• 100 ft Spydura™ Synthetic Rope

• Polished Aluminum Hawse Fairlead

• Wired Handheld Remote (12 ft)

• Control Box

• Mounting Hardware

• Installation Instructions

Warranty

• Limited Lifetime Warranty on Geartrain

• Limited 7-Year Warranty on Electrical Components
