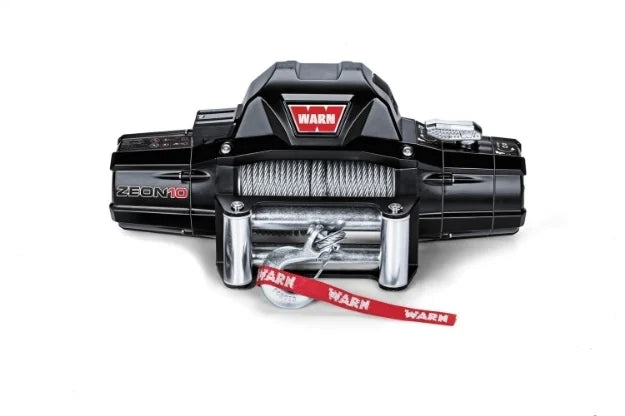

WARN ZEON 10 Winch 10,000 lb Steel Rope Roller Fairlead – 88990

The WARN ZEON 10 Winch is a rugged, dependable recovery solution designed for serious off-road and vehicle recovery applications. Delivering a 10,000 lb single-line pulling capacity, the ZEON 10 combines modern styling with proven WARN engineering to handle demanding terrain and tough recoveries.

Featuring improved sealing to keep out mud, water, and debris, the ZEON 10 is built for long-term durability. A hyper-durable cast aluminum housing, satin-black powder-coated finish, and stainless steel hardware provide excellent corrosion resistance. The convertible control pack allows the winch to be mounted traditionally or remotely for added flexibility and a cleaner installation.

Key Features

• 10,000 lb single-line pulling capacity

• 12V electric operation

• 80 ft of 3/8-inch galvanized steel wire rope

• Roller fairlead for smooth rope operation

• Series-wound motor with new planetary gear train

• Convertible control pack (remote relocation kit sold separately)

• Improved sealing for enhanced protection from the elements

• Satin-black powder-coated finish with stainless steel fasteners

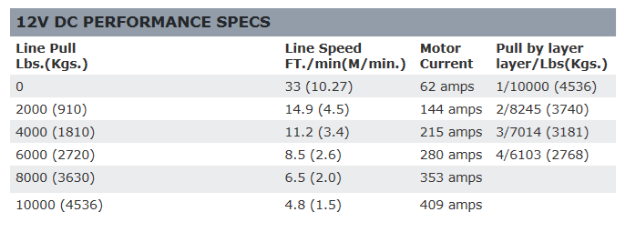

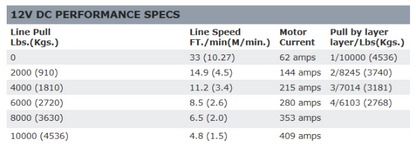

Technical Specifications

• Voltage: 12V

• Gear Ratio: 216:1

• Drive Style: 3-stage planetary

• Brake Type: Mechanical cone

• Free Spooling: Yes

• Max Amp Draw: 409 amps

• Max Line Pull: 10,000 lbs

• Line Speed (Max Load): 4.8 ft/min

• No-Load Line Speed: 33 ft/min

• Rope Diameter: 3/8 in

• Rope Length: 80 ft

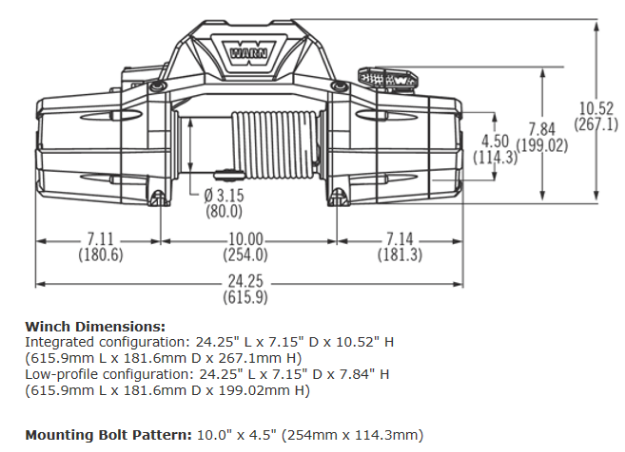

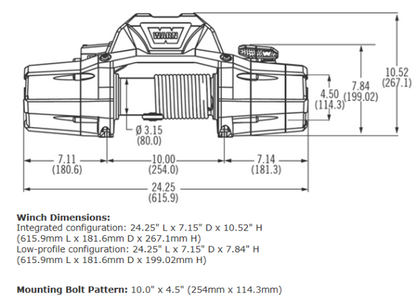

• Mounting Pattern: 4.5 x 10 inches

• Mounting Holes: 4

• Weight: 98 lbs

• Color: Black

What’s Included

• ZEON 10 Winch

• 80 ft Steel Wire Rope

• Roller Fairlead

• Wired Handheld Remote (12 ft cord)

• Mounting Hardware

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
