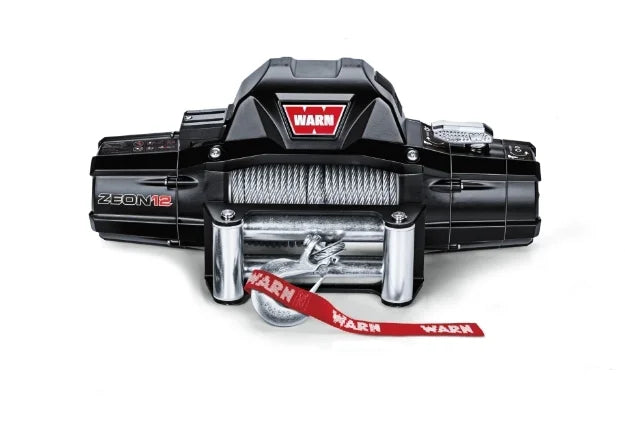

WARN ZEON 12 Electric Winch – 12,000 lb Capacity – Steel Rope – Roller Fairlead (89120)

WARN ZEON 12 Electric Winch – 12,000 lb Capacity – Steel Rope – Roller Fairlead (89120)

The WARN ZEON 12 Winch (89120) is built for serious recovery situations and heavily loaded off-road vehicles. With a 12,000 lb single-line pulling capacity, durable 3/8-inch steel rope, and a rugged satin-black powder-coated finish, this winch delivers dependable performance when you need it most. Designed with improved sealing, quieter operation, and a convertible control pack, the ZEON 12 is a premium solution for trail rigs, overland builds, and work vehicles.

Key Features & Benefits

• 12,000 lb (5,443 kg) single-line pulling capacity

• Includes 80 ft of 3/8-inch galvanized steel wire rope

• Roller fairlead for smooth rope handling

• Convertible control pack allows standard or remote mounting (relocation kit sold separately)

• Series-wound motor and 3-stage planetary gear train for reliable, efficient pulling

• Large-diameter drum reduces rope wear and simplifies installation

• Improved sealing to protect internal components from the elements

• Satin-black powder-coated finish with stainless steel hardware for corrosion resistance

• Quieter, faster operation compared to previous designs

Technical Specifications

• Type: Electric

• Voltage: 12V

• Motor Type: Series Wound

• Drive Gear: 3-Stage Planetary

• Gear Reduction Ratio: 216:1

• Brake Type: Mechanical Cone

• Free Spooling: Yes

• Thermal Shutoff: No

• Electrical Control Type: Contactors

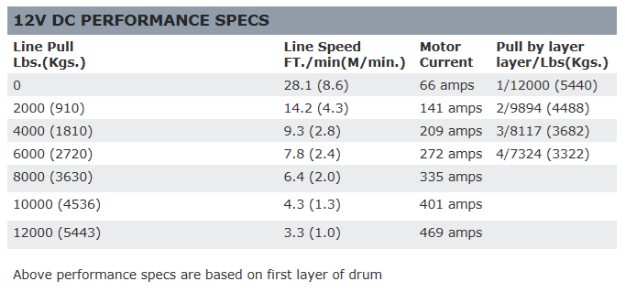

• Max Line Pull: 12,000 lbs

• Max Amp Draw: 469 amps @ max load

• Line Speed (Max Load): 3.3 ft/min

• No-Load Line Speed: 30 ft/min

• Rope Material: Steel

• Rope Diameter: 3/8 in

• Rope Length: 80 ft

• Fairlead Style: Roller

• Remote Type: Wired Handheld

• Remote Cord Length: 12 ft

• Mounting Pattern: 4.5 x 10 in

• Mounting Hole Quantity: 4

• Includes Mounting Hardware: Yes

• Color: Black

• Weight: 98 lbs

What’s Included

• WARN ZEON 12 Winch

• 80 ft Steel Wire Rope (3/8 in)

• Roller Fairlead

• Wired Handheld Remote (12 ft cord)

• Mounting Hardware

• Installation Instructions

Recommended Use

• Vehicle recovery

• Off-road and overland applications

• Heavy-duty trucks, SUVs, and trail rigs

Warranty

• Limited Lifetime Warranty on Mechanical Components

• Limited 7-Year Warranty on Electrical Components
