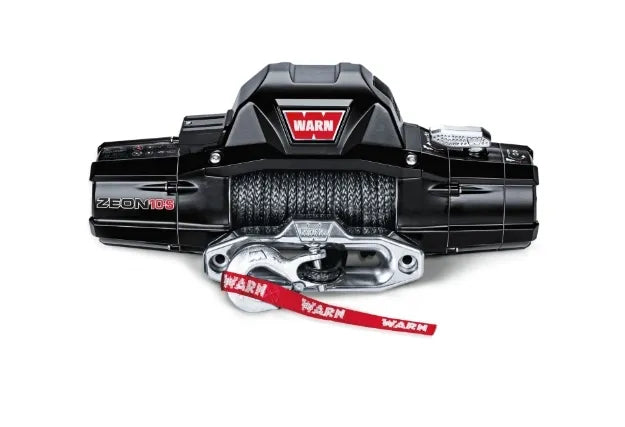

Warn 89611 ZEON 10-S 12V Electric Winch – 10,000 lb Synthetic Rope

The Warn 89611 ZEON 10-S Winch is a rugged, high-performance recovery winch built for drivers who demand reliability, strength, and modern design. Delivering a 10,000-pound single-line pulling capacity, this 12-volt electric winch is ideal for full-size trucks, SUVs, and off-road vehicles tackling challenging terrain.

Equipped with 100 feet of 3/8-inch WARN Spydura® synthetic rope, the ZEON 10-S offers reduced weight, improved safety, and easier handling compared to steel cable. Its cast-aluminum housing, satin-black powder-coated finish, and improved sealing keep the elements out while maintaining long-term durability. A new-generation planetary geartrain and series-wound motor provide fast, quiet, and dependable pulling power, making the Warn 89611 a true workhorse you can trust for years.

Key Features

• 10,000 lb rated line pull for serious vehicle recovery

• Includes 100 ft of 3/8″ Spydura® synthetic rope

• Polished aluminum hawse fairlead included

• Convertible control pack for flexible mounting options

• New-design planetary geartrain for smooth, reliable power

• Series-wound motor delivers fast and quiet operation

• Large-diameter winch drum reduces rope wear

• Satin-black powder-coated aluminum housing resists corrosion

Technical Specs

• Product Line: ZEON 10-S

• Type: Electric

• Mount Type: Vehicle Mounted

• Recommended Use: Vehicle Recovery

• Voltage: 12V

• Motor Type: Series Wound

• Electrical Control Type: Contactor

• Drive Style: Planetary

• Gear Ratio: 216:1

• Brake Type: Mechanical Cone

• Freespooling: Yes

Line, Drum & Fairlead

• Rope Material: Spydura® Synthetic

• Rope Diameter: 3/8 in

• Rope Length: 100 ft

• Fairlead Style: Hawse

• Drum Material: Aluminum

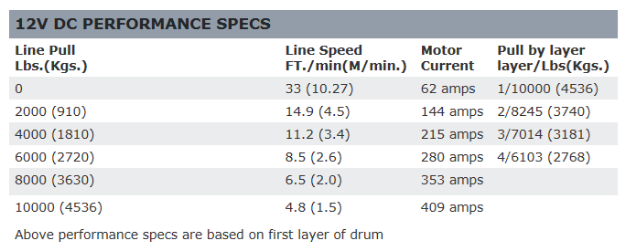

Performance

• Rated Line Pull: 10,000 lb (4,536 kg)

• Line Speed @ Load: 4.8 ft/min

• Max Amp Draw @ Load: 409 Amps

Remote & Mounting

• Remote Type: Wired Handheld Remote

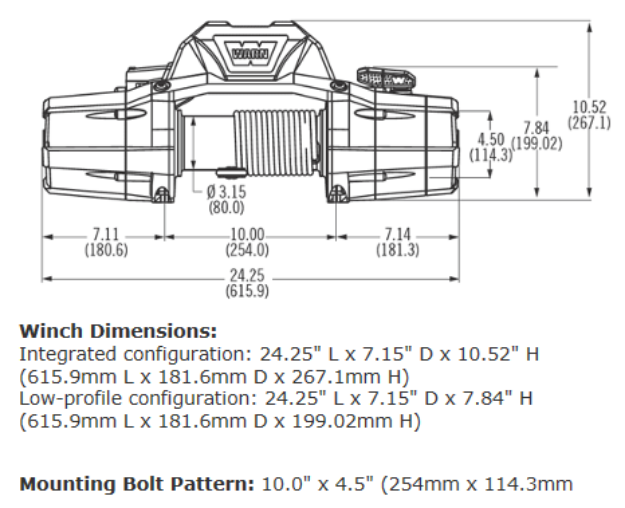

• Mounting Pattern: 10 in x 4.5 in

• Includes Mounting Hardware: Yes

• Color: Black

• Quantity: Complete Kit

Minor Fitment Notes

• Requires a compatible winch mount or aftermarket bumper

• Designed for 12V vehicle electrical systems

• Ideal for full-size trucks and SUVs

• Professional installation recommended

Warranty

• Mechanical Components: Limited Lifetime Warranty

• Electrical Components: Limited 7-Year Warranty
