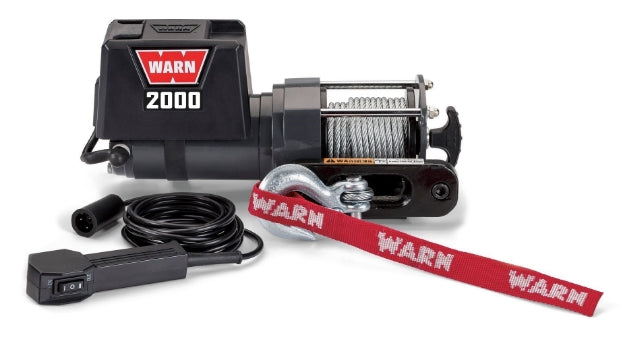

Warn 92000 2000 DC 12V Electric Winch – 2,000 lb Steel Rope

The Warn 92000 2000 DC Series 12V Electric Winch is a compact, value-driven solution designed for light-duty utility work, trailers, and tight mounting locations. Despite its small footprint, this winch delivers a dependable 2,000-pound rated line pull, making it ideal for moving lighter loads, loading equipment, or assisting with small recovery tasks.

Powered by a 1.6 horsepower permanent magnet DC motor, the 2000 DC offers an excellent duty cycle and reliable performance. It comes equipped with 35 feet of 3/16-inch steel wire rope, a hawse fairlead, and a 12-foot wired handheld remote for precise control. With a durable planetary geartrain and dynamic braking for secure load holding, the Warn 92000 is built to work efficiently where space and simplicity matter most.

Key Features

• 2,000 lb rated line pull for light-duty applications

• Compact design ideal for tight mounting locations

• Powerful 1.6 HP permanent magnet DC motor

• 35 ft of 3/16″ steel wire rope with hook

• Hawse fairlead included

• 12 ft wired handheld remote

• Durable planetary geartrain

• Dynamic braking for secure control

Technical Specs

• Product Line: 2000 DC

• Type: Electric

• Mount Type: Vehicle Mounted

• Recommended Use: Trailer / Utility

• Voltage: 12V

• Motor Output: 1.6 HP

• Motor Type: Permanent Magnet

• Drive Style: Planetary

• Gear Ratio: 153:1

• Brake Type: Self-Locking Geartrain / Dynamic

• Freespooling: Yes

Line, Fairlead & Performance

• Rope Material: Steel

• Rope Diameter: 3/16 in

• Rope Length: 35 ft

• Fairlead Style: Hawse

• Rated Line Pull: 2,000 lb (907 kg)

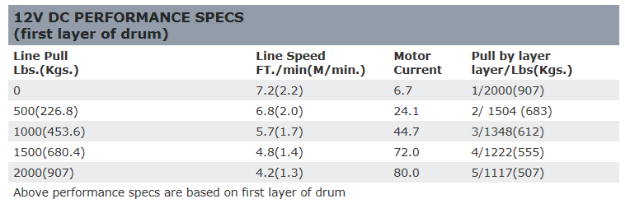

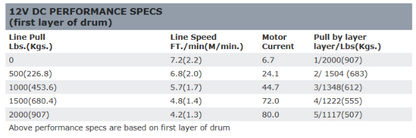

• Line Speed @ Load: 4.2 ft/min

• Max Amp Draw @ Load: 80 Amps

Remote & Mounting

• Remote Type: Wired Handheld

• Remote Cord Length: 12 ft

• Mounting Pattern Length: 3.1 in

• Mounting Holes: 2

• Includes Mounting Hardware: Yes

• Color: Gray

• Weight: 18 lb

• Quantity: Complete Kit

Minor Fitment Notes

• Ideal for trailers, hitch mounts, and utility applications

• Designed for lighter loads and non-recovery use

• Requires 12V electrical system

• Professional installation recommended

Warranty

• Limited 1-Year Warranty
