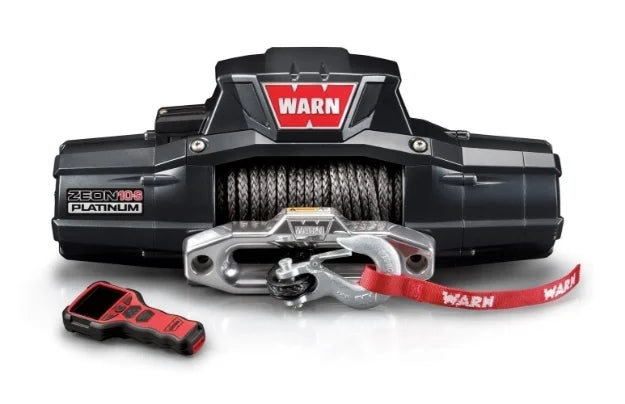

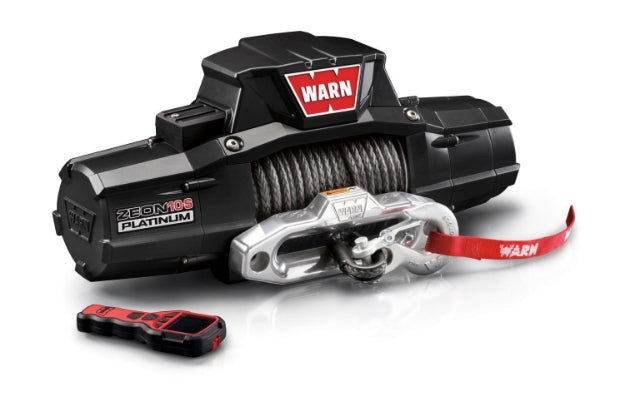

Warn 92815 ZEON 10-S Platinum 12V Electric Winch – 10,000 lb Synthetic Rope

The Warn 92815 ZEON 10-S Platinum Winch delivers cutting-edge winching technology in a compact, ultra-durable package built for serious off-road and recovery use. With a 10,000-pound rated line pull, this 12-volt electric winch is ideal for midsize to full-size trucks and SUVs that demand high performance without excess weight.

Equipped with 100 feet of 3/8-inch Spydura® synthetic rope and a matte aluminum hawse fairlead, the ZEON 10-S Platinum reduces weight while improving safety and handling. The standout Advanced Wireless Remote allows full control of winch-in, winch-out, freespool, and clutch engagement—eliminating the need for a manual clutch. The remote also displays real-time vehicle battery voltage and winch motor temperature and can control up to two 12-volt accessories. With a high-speed motor, strengthened geartrain, and IP68 waterproofing, the Warn 92815 is engineered for extreme reliability in the harshest environments.

Key Features

• 10,000 lb rated line pull for demanding recovery

• Includes 100 ft of 3/8″ Spydura® synthetic rope

• Advanced Wireless Remote with clutch, winch, and accessory control

• Remote displays battery voltage and motor temperature

• 20% faster line speed with upgraded motor and gear design

• Large-diameter aluminum drum with steel sleeve reduces rope wear

• IP68 waterproofing – highest rating in WARN truck/SUV lineup

• Convertible control pack for flexible mounting options

• Flat black powder-coated aluminum housing with stainless fasteners

Technical Specs

• Product Line: ZEON 10-S Platinum

• Type: Electric

• Mount Type: Vehicle Mounted

• Recommended Use: Vehicle Recovery

• Voltage: 12V

• Motor Type: Series Wound

• Electrical Control Type: Contactor

• Drive Style: 3-Stage Planetary

• Gear Ratio: 162:1

• Brake Type: Automatic Mechanical Cone

• Freespooling: Yes

Line, Drum & Fairlead

• Rope Material: Spydura® Synthetic

• Rope Diameter: 3/8 in

• Rope Length: 100 ft

• Drum Material: Aluminum

• Fairlead Style: Hawse

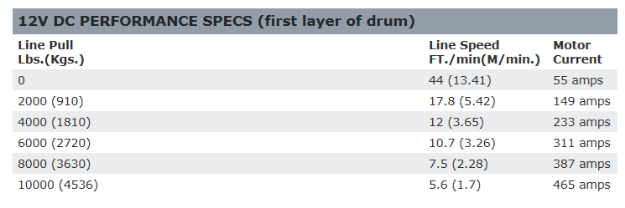

Performance

• Rated Line Pull: 10,000 lb (4,536 kg)

• Line Speed @ Max Load: 5.6 ft/min

• Max Amp Draw @ Load: 465 Amps

Remote & Mounting

• Remote Type: Wireless Handheld

• Remote Included: Yes

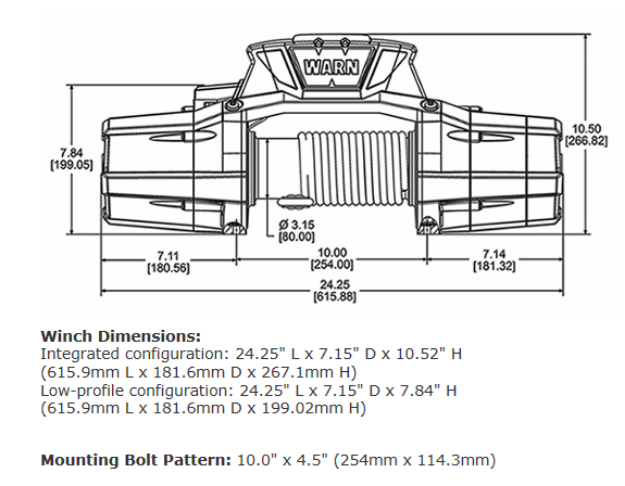

• Mounting Pattern: 10 in x 4.5 in

• Includes Mounting Hardware: Yes

• Finish: Black

• Quantity: Complete Kit

Minor Fitment Notes

• Requires a compatible winch mount or aftermarket bumper

• Designed for 12V vehicle electrical systems

• Ideal for midsize and full-size trucks and SUVs

• Professional installation recommended

Warranty

• Mechanical Components: Limited Lifetime Warranty

• Electrical Components: Limited 7-Year Warranty
