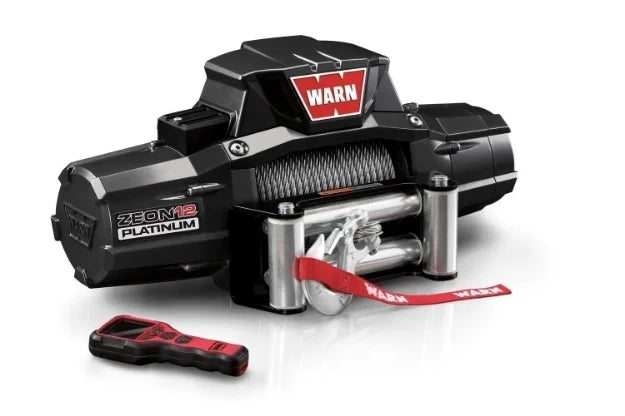

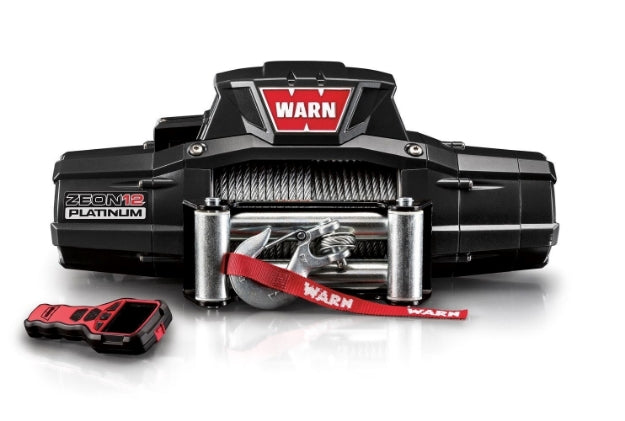

Warn 92820 ZEON 12 Platinum 12V Electric Winch – 12,000 lb Steel Rope

The Warn 92820 ZEON 12 Platinum Winch represents the most advanced winching technology WARN has ever produced. Engineered for serious off-roaders and heavy-duty recovery, this vehicle-mounted 12-volt electric winch delivers a massive 12,000-pound rated line pull and comes equipped with 80 feet of 3/8-inch steel wire rope and a roller fairlead.

What sets the ZEON Platinum apart is its Advanced Wireless Remote, which gives you total control of winch-in, winch-out, freespool, and clutch engagement—right from the palm of your hand. The remote also provides real-time feedback on winch motor temperature and vehicle battery voltage and can control up to two 12-volt accessories. Combined with a high-speed motor, stronger gearing, and a heat-treated ring gear, the ZEON 12 Platinum delivers faster line speeds, best-in-class efficiency, and unmatched durability. Extreme IP68 waterproofing and a rugged aluminum housing ensure dependable performance in the harshest environments.

Note: A compatible winch mount is required for proper installation.

Key Features

• 12,000 lb rated line pull for heavy-duty recovery

• Includes 80 ft of 3/8″ steel wire rope

• Advanced Wireless Remote with clutch, winch, and accessory control

• Remote displays motor temperature and vehicle battery voltage

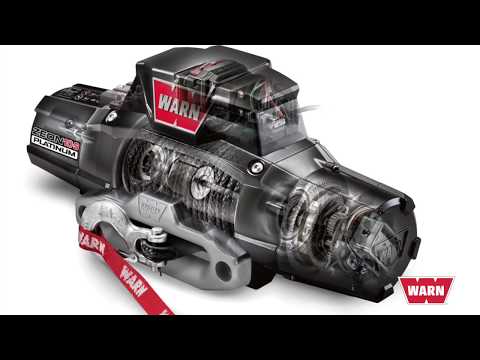

• 20% faster line speed with upgraded motor and gear design

• Large-diameter aluminum drum with steel sleeve to reduce rope wear

• IP68 waterproofing – highest rating in WARN truck/SUV lineup

• Convertible control pack for flexible mounting options

• Flat black powder-coated aluminum housing with stainless fasteners

Technical Specs

• Product Line: ZEON 12 Platinum

• Type: Electric

• Mount Type: Vehicle Mounted

• Recommended Use: Vehicle Recovery

• Voltage: 12V

• Motor Type: Series Wound

• Electrical Control Type: Contactor

• Drive Style: 3-Stage Planetary

• Gear Ratio: 216:1

• Brake Type: Mechanical Cone

• Freespooling: Yes

Line, Drum & Fairlead

• Rope Material: Steel

• Rope Diameter: 3/8 in

• Rope Length: 80 ft

• Drum Material: Aluminum

• Fairlead Style: Roller

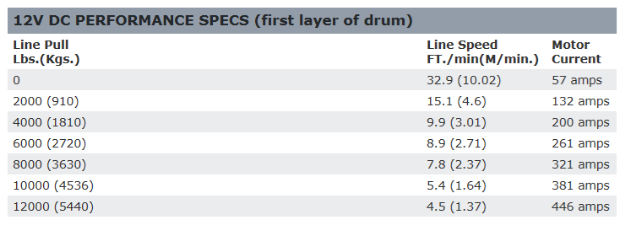

Performance

• Rated Line Pull: 12,000 lb

• Line Speed @ Max Load: 4.5 ft/min

• Max Amp Draw @ Load: 446 Amps

Remote & Mounting

• Remote Type: Wireless Handheld

• Remote Included: Yes

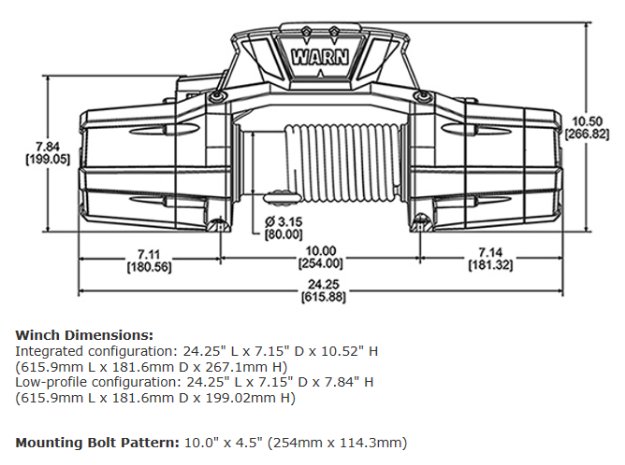

• Mounting Pattern: 10 in x 4.5 in

• Includes Mounting Hardware: Yes

• Finish: Black

• Weight: 103 lb

• Quantity: Complete Kit

Minor Fitment Notes

• Requires compatible winch mount or aftermarket bumper

• Designed for 12V vehicle electrical systems

• Ideal for full-size trucks, SUVs, and overland rigs

• Professional installation recommended

Warranty

• Mechanical Components: Limited Lifetime Warranty

• Electrical Components: Limited 7-Year Warranty
