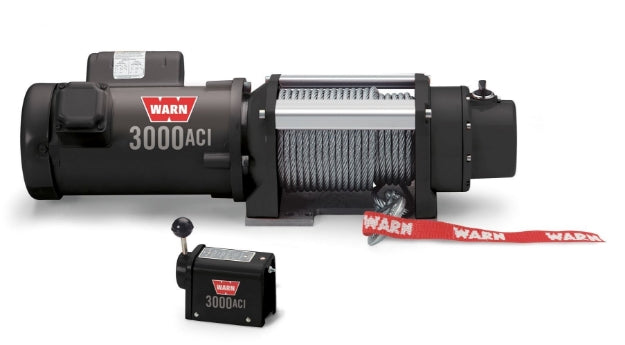

Warn 93000 3000 ACI Electric Winch – 3,000 lb AC Powered

The Warn 93000 3000 ACI Electric Winch is a heavy-duty, AC-powered winch designed for industrial, shop, and fixed-mount applications where long duty cycles and consistent pulling power are required. Delivering a 3,000-pound rated line pull, this winch is ideal for heavy hauling, material handling, and stationary winching tasks.

Unlike vehicle-mounted DC winches, the 3000 ACI features a TEFC (Totally Enclosed Fan Cooled) induction AC motor, providing extended run time, excellent durability, and dependable performance in demanding environments. The winch comes equipped with 100 feet of 5/16-inch steel wire rope and utilizes a planetary geartrain with both dynamic and mechanical braking for secure load control. CSA approved and built for professional use, the Warn 93000 is a proven fixed-mount winch solution.

Key Features

• 3,000 lb rated line pull for industrial applications

• AC-powered winch with TEFC induction motor

• Designed for long duty cycles and continuous use

• 100 ft of 5/16″ steel wire rope included

• Planetary geartrain for smooth, reliable operation

• Dynamic and mechanical braking for secure load holding

• CSA approved for industrial use

Technical Specs

• Product Line: 3000 ACI

• Type: Electric (AC Powered)

• Mount Type: Fixed Mount

• Recommended Use: Industrial / Stationary

• Voltage: 115V / 230V

• Motor Output: 0.7 HP

• Motor Type: TEFC Induction

• Drive Style: Planetary

• Gear Ratio: 216:1

• Brake Type: Mechanical & Dynamic

• Freespooling: No

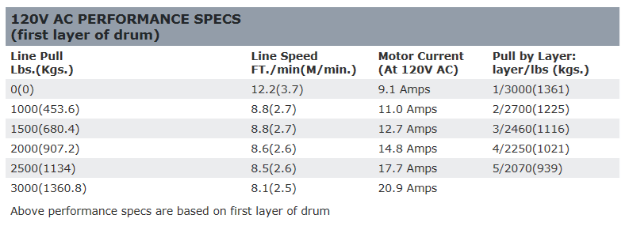

Line & Performance

• Rope Material: Steel

• Rope Diameter: 5/16 in

• Rope Length: 100 ft

• Fairlead: None

• Rated Line Pull: 3,000 lb

• Line Speed: 8.1 ft/min

• Max Amp Draw @ Load: 20.9 Amps

Controls & Mounting

• Remote Type: Drum Switch

• Mounting Pattern: 4 in x 4.5 in

• Mounting Holes: 4

• Includes Mounting Hardware: Yes

• Color: Gray

• Quantity: Complete Kit

Minor Fitment Notes

• Designed for fixed-mount, stationary installations only

• Not intended for vehicle-mounted recovery

• Requires appropriate AC power supply (115V or 230V)

• Professional installation recommended

Warranty

• Limited 1-Year Warranty
