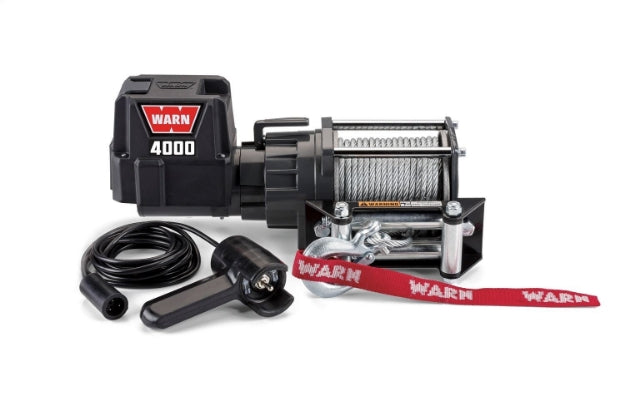

Warn 94000 4000 DC 12V Electric Winch – 4,000 lb Steel Rope

The Warn 94000 4000 DC Series 12V Electric Winch is a compact, reliable solution for trailer use, utility applications, and light-duty vehicle recovery. With a 4,000-pound rated line pull, this winch is ideal for loading vehicles onto trailers, moving heavy equipment, or handling tough jobs at the worksite.

Powered by a durable 1.9 horsepower permanent magnet DC motor, the 4000 DC delivers an excellent duty cycle and consistent pulling performance. It comes equipped with 43 feet of 7/32-inch steel wire rope, a roller fairlead, and a 12-foot wired handheld remote for precise, controlled operation. Featuring a rugged three-stage planetary geartrain and both dynamic and mechanical braking, the Warn 94000 is built to work hard and last.

Key Features

• 4,000 lb rated line pull for utility and trailer applications

• Powerful 1.9 HP permanent magnet DC motor

• 43 ft of 7/32″ steel wire rope with hook

• Roller fairlead for smooth rope operation

• 12 ft wired handheld remote included

• Durable three-stage planetary geartrain

• Dynamic and mechanical braking for secure load holding

• Compact, vehicle-mounted design

Technical Specs

• Product Line: 4000 DC

• Type: Electric

• Mount Type: Vehicle Mounted

• Recommended Use: Trailer / Utility

• Voltage: 12V

• Motor Output: 1.9 HP

• Motor Type: Permanent Magnet

• Drive Style: 3-Stage Planetary

• Gear Ratio: 176:1

• Brake Type: Mechanical & Dynamic

• Freespooling: Yes

Line, Fairlead & Performance

• Rope Material: Steel

• Rope Diameter: 7/32 in

• Rope Length: 43 ft

• Fairlead Style: Roller

• Rated Line Pull: 4,000 lb (1,814 kg)

• Line Speed: ~7.0 ft/min

• Max Amp Draw @ Load: 240 Amps

Remote & Mounting

• Remote Type: Wired Handheld

• Remote Cord Length: 12 ft

• Mounting Pattern: 2.5 in x 3.1 in

• Mounting Holes: 3

• Includes Mounting Hardware: Yes

• Color: Black

• Weight: 18 lb

• Quantity: Complete Kit

Minor Fitment Notes

• Ideal for trailers, hitch mounts, and utility applications

• Designed for 12V electrical systems

• Not intended for heavy off-road recovery

• Professional installation recommended

Warranty

• Limited 1-Year Warranty
