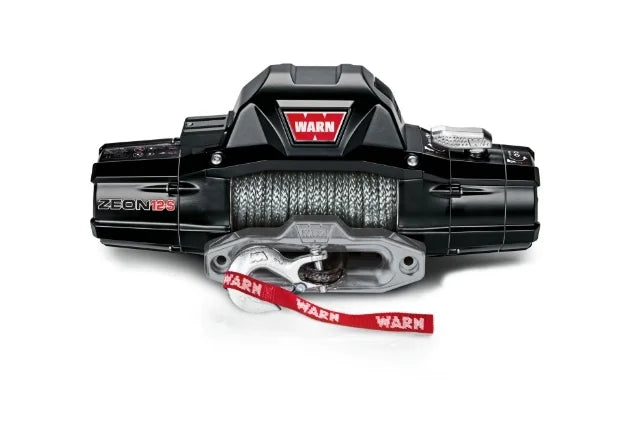

Warn 95950 ZEON 12-S 12V Electric Winch – 12,000 lb Synthetic Rope

The Warn 95950 ZEON 12-S Winch delivers legendary WARN reliability in a lightweight, high-performance package designed for heavily loaded off-road vehicles and demanding recovery situations. With a 12,000-pound rated line pull, this 12-volt electric winch provides the muscle needed for full-size trucks, SUVs, and overland rigs without unnecessary bulk.

Factory-equipped with 80 feet of 3/8-inch Spydura® Pro synthetic rope and an aluminum hawse fairlead, the ZEON 12-S trims weight while improving safety and ease of handling. A new-design planetary geartrain and series-wound motor deliver fast, quiet, and reliable pulling power, while the automatic mechanical cone brake ensures excellent load control. Extreme IP68 waterproofing, a durable aluminum structure, and a convertible control pack make the Warn 95950 one of the most versatile and capable winches in the WARN lineup.

Key Features

• 12,000 lb rated line pull for heavy-duty recovery

• Includes 80 ft of 3/8″ Spydura® Pro synthetic rope

• Aluminum hawse fairlead with powder-coated finish

• Lightweight aluminum drum reduces rope wear

• Series-wound motor with fast, quiet operation

• Three-stage planetary geartrain for durability

• Automatic mechanical cone brake for full load holding

• IP68 waterproofing – highest rating in WARN truck/SUV winches

• Convertible control pack for multiple mounting options

Technical Specs

• Product Line: ZEON 12-S

• Type: Electric

• Mount Type: Vehicle Mounted

• Recommended Use: Vehicle Recovery

• Voltage: 12V

• Motor Type: Series Wound

• Electrical Control Type: Contactor

• Drive Style: 3-Stage Planetary

• Gear Ratio: 216:1

• Brake Type: Automatic Mechanical Cone

• Freespooling: Yes

Line, Drum & Fairlead

• Rope Material: Spydura® Pro Synthetic

• Rope Diameter: 3/8 in

• Rope Length: 80 ft

• Drum Material: Aluminum

• Fairlead Style: Hawse

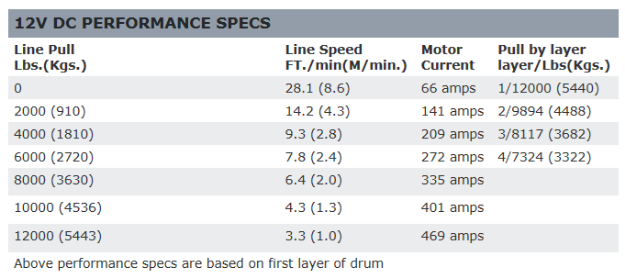

Performance

• Rated Line Pull: 12,000 lb (5,443 kg)

• Line Speed @ Max Load: 3.3 ft/min

• Max Amp Draw @ Max Load: 469 Amps

Remote & Mounting

• Remote Type: Wired Handheld

• Remote Cord Length: 12 ft

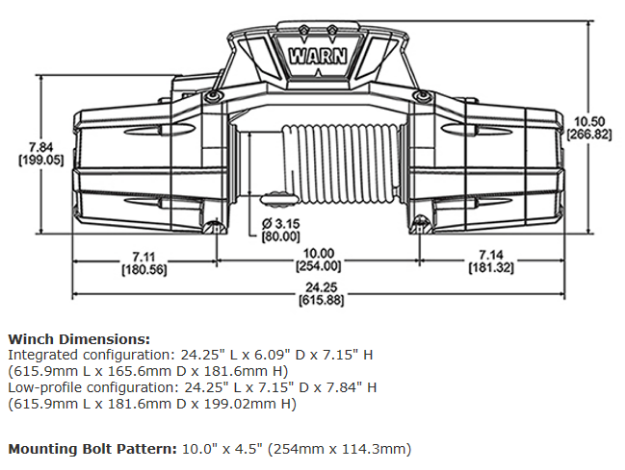

• Mounting Pattern: 10 in x 4.5 in

• Finish: Black Powder Coat

• Weight: 80 lb

• Quantity: Complete Kit

Minor Fitment Notes

• Requires a compatible winch mounting plate or bumper

• Designed for 12V vehicle electrical systems

• Ideal for full-size trucks, SUVs, and off-road vehicles

• Professional installation recommended

Warranty

• Mechanical Components: Limited Lifetime Warranty

• Electrical Components: Limited 7-Year Warranty
