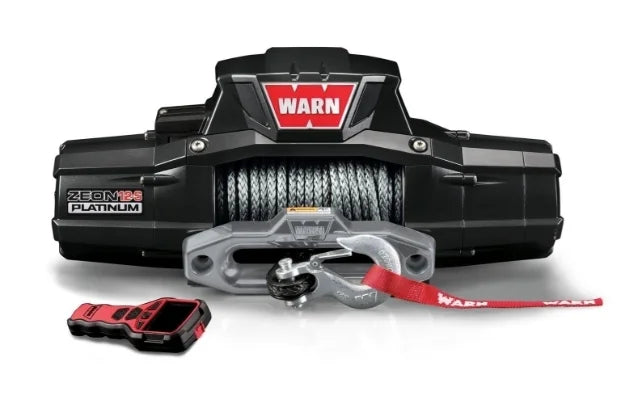

Warn ZEON 12-S Platinum Synthetic Rope Winch – 12,000 lb (95960)

The Warn ZEON 12-S Platinum Winch (Part #95960) is one of the most advanced vehicle-mounted recovery winches ever produced. Designed for extreme off-road, overland, and recovery situations, this 12-volt electric winch delivers a massive 12,000-pound pulling capacity and comes factory-spooled with 80 feet of ultra-strong Spydura® Pro synthetic rope.

What sets the ZEON Platinum series apart is its Advanced Wireless Remote, which puts total winch and clutch control in the palm of your hand. The remote provides real-time feedback including vehicle battery voltage and winch motor temperature, while also allowing remote clutch engagement, winch-in, winch-out, and freespool operation. Built with a high-speed motor, stronger gearing, and a heat-treated ring gear, the ZEON 12-S Platinum delivers faster line speeds, industry-leading efficiency, and unmatched durability. Extreme waterproofing to IP68 standards and a rugged aluminum housing ensure reliable performance in the harshest environments.

Note: A compatible winch mount is required for proper installation.

Key Features

• 12,000 lb rated line pull for full-size trucks, SUVs, and off-road rigs

• Spydura® Pro synthetic rope (80 ft x 3/8")

• Advanced Wireless Remote controls winch, clutch, and up to two accessories

• Remote provides battery voltage and motor temperature feedback

• High-speed motor and stronger gear train for 20% faster line speed

• Remote-controlled clutch for winch-in, winch-out, and freespool

• IP68 waterproofing – highest rating in the WARN truck/SUV winch lineup

• Convertible control pack for multiple mounting configurations

• Durable aluminum housing with black powder-coated finish

Technical Specs

• Type: Electric

• Mount Type: Vehicle Mounted

• Recommended Use: Vehicle Recovery

• Voltage: 12 Volt

• Motor Type: Series Wound

• Drive Gear Type: Planetary

• Gear Reduction Ratio: 216:1

• Brake Type: Mechanical Cone

• Free Spooling: Yes

• Thermal Shutoff: No

Line & Drum

• Line Material: Spydura® Pro Synthetic Rope

• Line Diameter: 3/8 Inch

• Line Length: 80 Feet

• Drum Material: Aluminum

• Fairlead Type: Hawse

Performance

• Max Line Pull: 12,000 lb

• Line Speed @ Max Load: 3.3 ft/min

• Max Amp Draw @ Max Load: 469 Amps

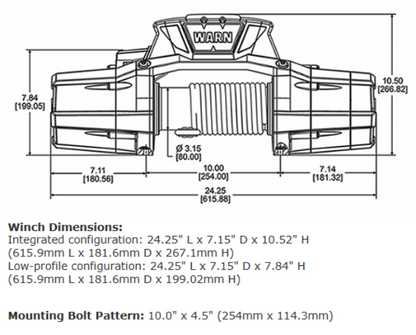

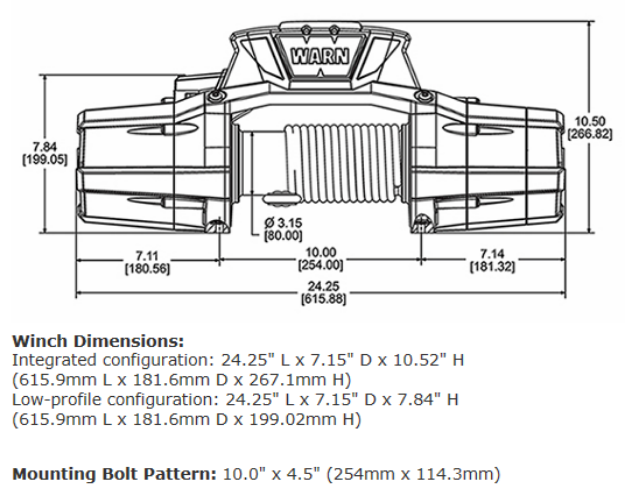

Mounting

• Mounting Pattern: 10" x 4.5"

• Color: Black

Warranty

• Mechanical Components: Limited Lifetime Warranty

• Electrical Components: Limited 7-Year Warranty
