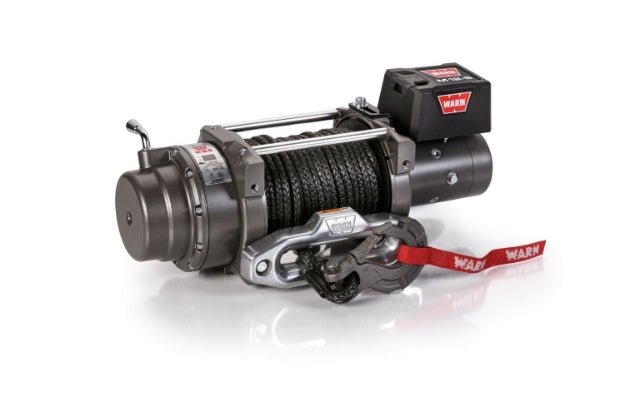

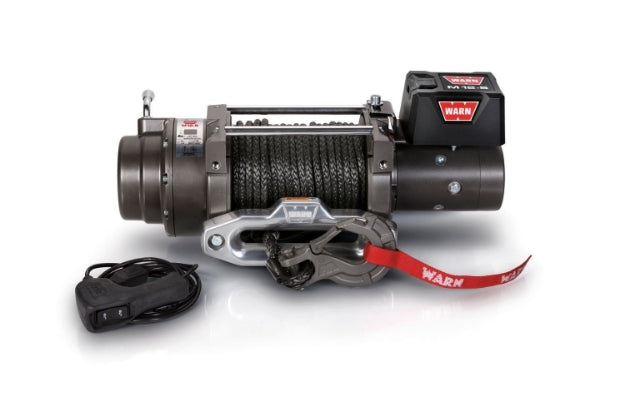

Warn 97720 M12-S Heavyweight 12V Electric Winch – 12,000 lb Synthetic Rope

The Warn 97720 M12-S Heavyweight Winch is a true workhorse designed for full-size trucks, heavy off-road vehicles, and demanding recovery situations. With a powerful 12,000-pound rated line pull, fast no-load line speed, and WARN’s proven large-frame architecture, the M12-S delivers the perfect balance of strength, speed, and durability.

This winch comes factory-equipped with 100 feet of 3/8-inch Spydura® synthetic rope, a polished aluminum hawse fairlead, and a WARN EPIC hook for safe and reliable recovery. A series-wound motor, three-stage planetary geartrain, and best-in-class automatic mechanical cone brake ensure consistent pulling power and excellent load control. Built for serious use, the Warn 97720 is ideal for truck owners who need dependable performance on or off the pavement.

Key Features

• 12,000 lb rated line pull for heavy-duty recovery

• Includes 100 ft of 3/8″ Spydura® synthetic rope

• Polished aluminum hawse fairlead included

• Large-frame heavyweight winch with feet-forward mounting

• Contactor-based electrical system for maximum reliability

• Powerful series-wound motor

• Smooth, durable three-stage planetary geartrain

• Best-in-class automatic mechanical cone brake

Technical Specs

• Product Line: M12-S Heavyweight

• Type: Electric

• Mount Type: Vehicle Mounted

• Voltage: 12V

• Motor Type: Series Wound

• Electrical Controls: Contactor

• Drive Style: 3-Stage Planetary

• Gear Ratio: 261:1

• Brake Type: Automatic Mechanical Cone

• Freespooling: Yes (Rotating Ring Gear)

Line, Drum & Fairlead

• Rope Material: Spydura® Synthetic

• Rope Diameter: 3/8 in

• Rope Length: 100 ft

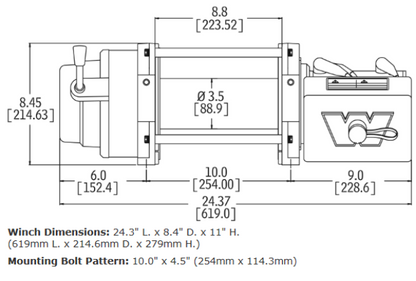

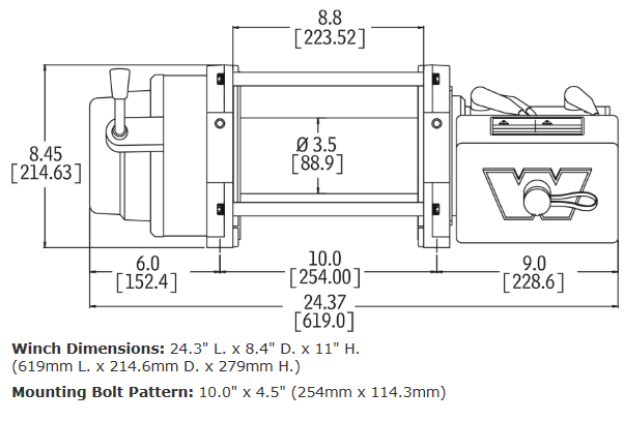

• Drum Diameter / Length: 3.5 in / 8.2 in

• Fairlead Style: Aluminum Hawse

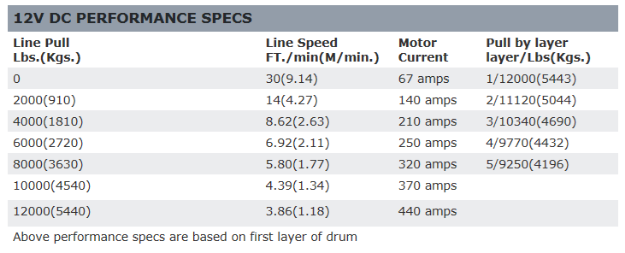

Performance & Electrical

• Rated Line Pull: 12,000 lb (5,440 kg) single line

• Remote Type: Wired Handheld Remote

• Remote Cord Length: 12 ft

• Recommended Battery: Minimum 650 CCA

• Battery Leads: 2-Gauge, 72 in

Mounting & Finish

• Bolt Pattern: 4.5 in x 10 in

• Finish: Argent Gray Powder Coat

• Weight: 102 lb

• Quantity: Complete Kit

Minor Fitment Notes

• Requires a compatible winch mounting plate or bumper

• Designed for full-size trucks and heavy off-road vehicles

• Professional installation recommended

Warranty

• Mechanical Components: Limited Lifetime Warranty

• Electrical Components: Limited 7-Year Warranty
