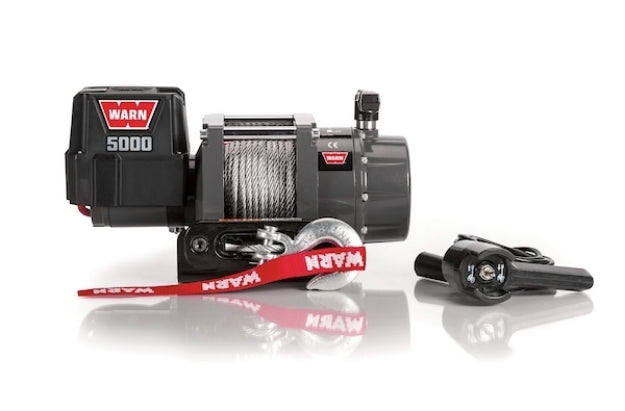

Warn 99963 5000 DC Series 12V Electric Winch – 5,000 lb Capacity

The Warn 99963 5000 DC Series 12V Electric Winch is built for dependable vehicle-mounted recovery, utility work, and light-duty off-road applications. Designed with a strong 1.9 horsepower permanent magnet DC motor and a durable three-stage planetary geartrain, this winch delivers reliable pulling power up to 5,000 pounds when the job demands consistent performance.

Equipped with 60 feet of steel wire rope and a hawse fairlead, the 5000 DC provides excellent control and holding power thanks to its dynamic and mechanical braking system. A wired handheld remote with a 12-foot cord allows safe, precise operation, while the freespool clutch enables quick line payout. Compact, durable, and easy to install, the Warn 99963 is a proven solution for ATVs, UTVs, trailers, and utility vehicles that require dependable pulling capability.

Key Features

• 5,000 lb rated line pull

• Powerful 1.9 HP permanent magnet DC motor

• Three-stage planetary geartrain for durability and torque

• Dynamic and mechanical braking for superior control

• 60 ft steel wire rope with hawse fairlead

• Wired handheld remote included

• Compact, vehicle-mounted design

Technical Specs

• Product Line: 5000 DC Series

• Type: Electric

• Mount Type: Vehicle Mounted

• Voltage: 12V

• Motor Output: 1.9 HP

• Drive Style: 3-Stage Planetary

• Gear Ratio: 216:1

• Brake: Dynamic & Mechanical

• Freespooling: Yes

Line & Fairlead

• Rope Material: Steel

• Rope Length: 60 ft

• Rope Diameter: 1/4 in

• Fairlead Style: Hawse

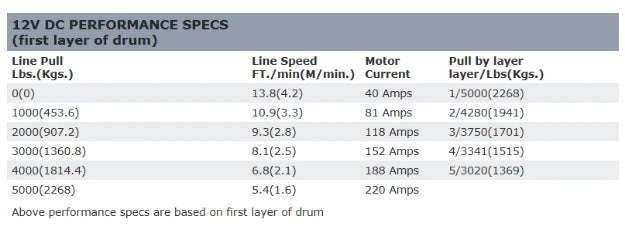

Performance

• Rated Line Pull: 5,000 lb (2,268 kg)

• Line Speed: 13.8 ft/min

• Speed Settings: 1

Remote & Mounting

• Remote Type: Wired Handheld

• Remote Cord Length: 12 ft

• Bolt Pattern: 4.25 in x 4.5 in

• Weight: 42 lbs

• Quantity: Complete Kit

Minor Fitment Notes

• Designed for vehicle-mounted applications

• Requires a compatible winch mounting plate or bumper

• Ideal for ATVs, UTVs, trailers, and light utility vehicles

• Professional installation recommended

Warranty

• Limited 1-Year Warranty
