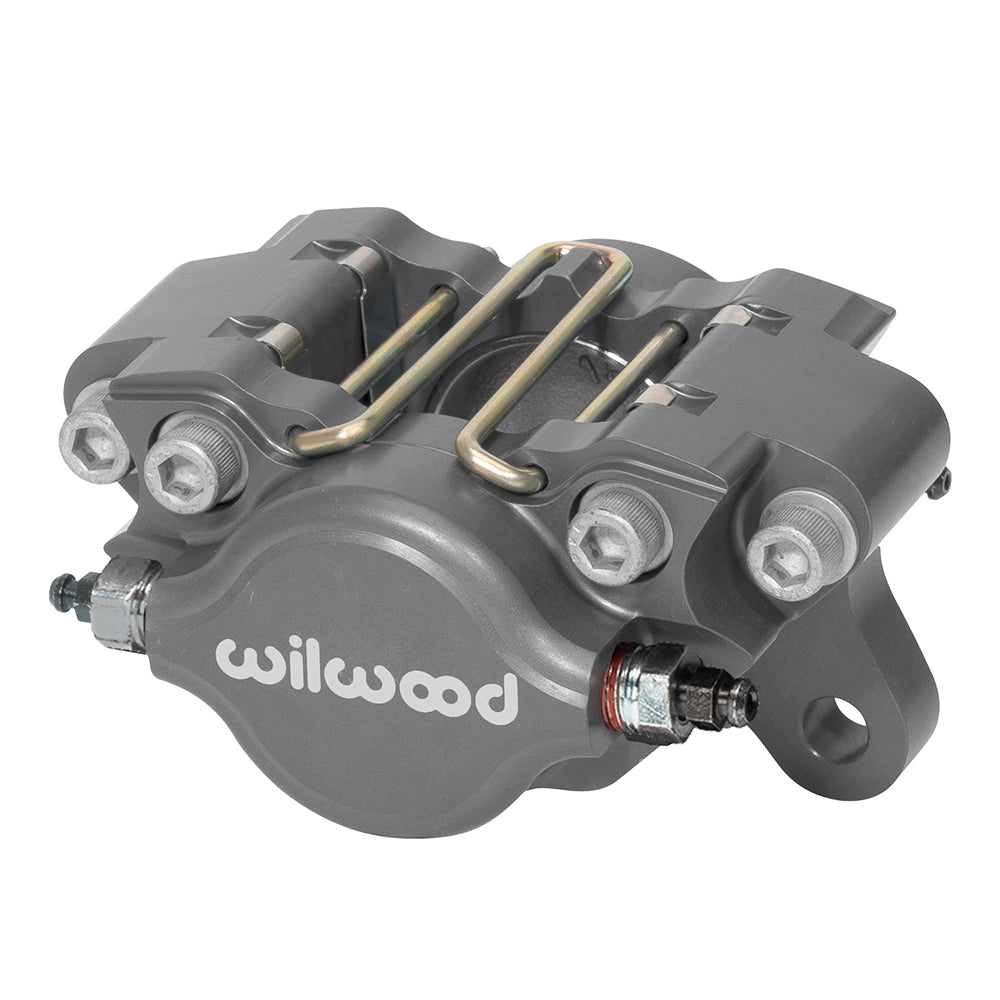

The Wilwood DynaPro Single Lightweight (DPS-LW) brake caliper is the newest evolution in Wilwood’s “Dyna” series, engineered as a direct upgrade or replacement for earlier Dynalite Single (DLS) calipers. Designed for maximum strength, reduced deflection, and compact packaging, the DPS-LW delivers improved braking efficiency while maintaining clearance in tight applications such as sprint car front ends and custom performance setups.
CNC-machined from premium billet aluminum, the DPS-LW caliper features an FEA-optimized body design with reinforced bridge and piston housing transitions. This strengthened structure significantly reduces caliper flex under load, resulting in increased clamping force, reduced fluid displacement, and firmer pedal feel with less travel.
Wilwood performance enhancements include Quick-E-Clip top-loading pad retention for fast pad changes without caliper removal, stainless steel pistons for heat management and corrosion resistance, and replaceable stainless steel SRS bridge plates to eliminate pad rattle, reduce wear, and suppress brake noise. Internal fluid passages and four corner bleed screws allow flexible mounting in front, rear, left, or right positions.
DynaPro Single Lightweight (DPS-LW) billet brake caliper
Direct upgrade for Dynalite Single (DLS) caliper applications
Compact design for tight clearance installations
FEA-optimized billet body reduces deflection under load
Two-piston design with stainless steel pistons
Quick-E-Clip top-loading pad retention system
Replaceable stainless steel SRS bridge plates
Four-corner bleed screw design for universal mounting
Improved clamping efficiency and pedal firmness
Piston Count: 2
Total Piston Area: 2.40 in²
Piston Material: Stainless Steel
Dust Boots: No
Material: Billet Aluminum
Weight: 2.2 lbs
Finish: Type III Anodize
Color: Anodized
Rotor Width (Nominal): 0.38 in
Minimum Rotor Width: 0.25 in
Maximum Rotor Width: 0.38 in
Minimum Rotor Diameter: 6.00 in
Maximum Rotor Diameter: 13.00 in
Brake Pad Type: 6812
Total Pad Area: 3.0 in²
Total Pad Volume: 1.1 in³
Mount Type: Lug
Mount Side: Universal
Mount Center Spacing: 3.25 in
Mount Hole Size: 0.39 in
Mount Height: 1.92 in
Inlet Thread Size: 1/8-27 NPT
(1) Wilwood DynaPro Single Lightweight Brake Caliper
Installed stainless steel pistons
Installed SRS bridge plates
Bleed screws pre-installed
Universal Fit
Designed for custom brake systems and Wilwood brake kits
Compatible with lug-mount applications using 3.25 in mount spacing
Professional installation recommended
Brake pads sold separately
Proper rotor thickness and diameter must be verified before installation
Not all brake modifications are legal for street use in all regions
