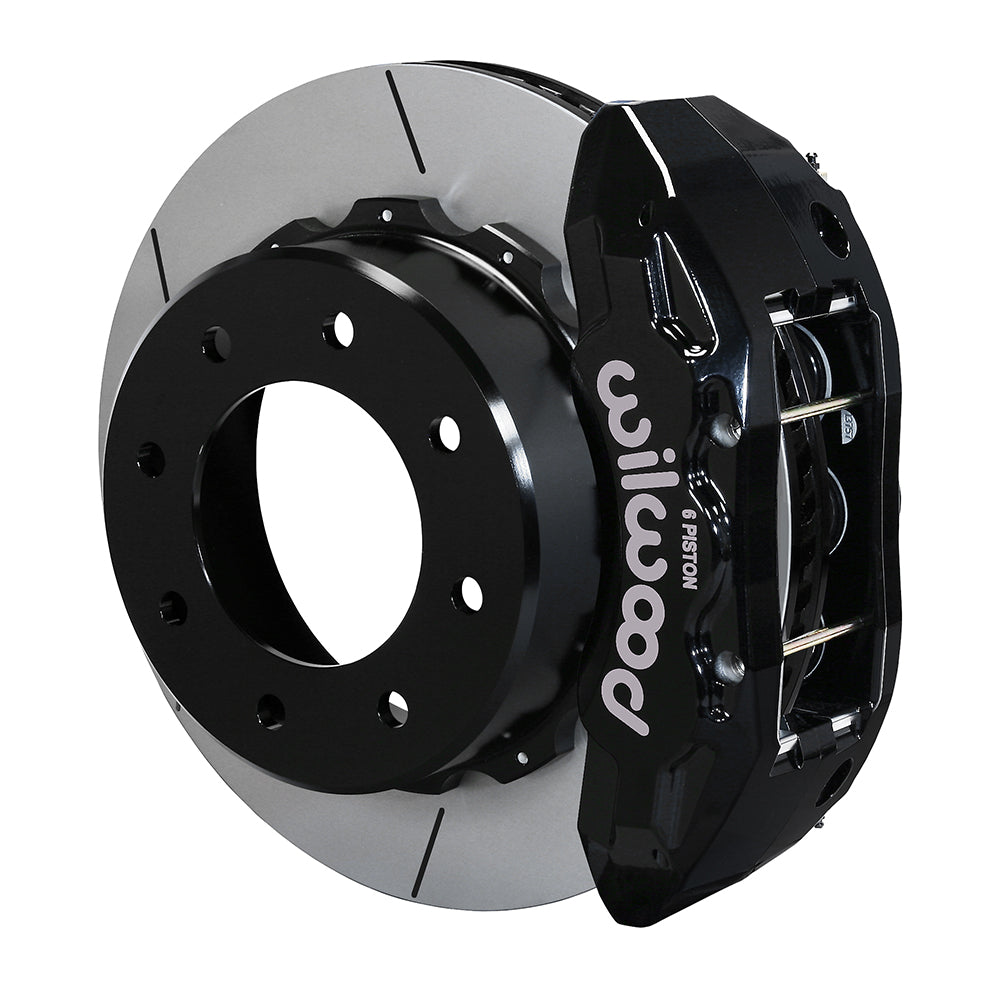

Wilwood’s TX6R Tactical Extreme Big Brake Rear Kit delivers unmatched braking performance for heavy-duty trucks, SUVs, and armored vehicles. Designed specifically for the 2011–2019 GM 2500HD platform, this kit features massive GT-series rotors and high-strength TX6R six-piston calipers engineered to handle extreme braking loads, sustained high heat, towing, hauling, and aggressive off-road use.
The kit includes 15.50” GT-series directional vane Spec-37 alloy rotors, 6-piston black powder-coat TX6R calipers, and precision-machined radial-mount brackets. The system is fully volume-matched for compatibility with factory master cylinder and power brake systems. This rear kit replaces the factory rear disc brakes while retaining the OE parking brake assembly, making it the ideal complement to Wilwood front big brake upgrades.
Engineered for maximum durability and control, the TX6R kit provides significantly improved stopping power, fade resistance, thermal stability, and performance under heavy load or high-speed operation.
Tactical Extreme TX6R 6-piston rear big brake upgrade
Massive 15.50” GT-series rotors with 72 staggered directional vanes
Engineered for extreme braking conditions, high heat, and heavy load environments
Black powder-coated TX6R calipers with stainless pistons for maximum durability
Slotted GT rotors with Spec-37 alloy for superior thermal stability
Retains OE parking brake assembly
Radial-mount design for strength and precision
Compatible with factory master cylinder and ABS
Perfect complement to Wilwood front TX6R big brake kits
LH P/N: 120-13818-BK
RH P/N: 120-13817-BK
6-piston calipers with stainless pistons
Piston sizes: 1.75" / 1.62" / 1.62"
Total piston area: 6.52 in²
Radial mount design
Pad plate: 10120
Pad area: 12.69 in²
Pad volume: 6.81 in³
Pad compound: BP-Q
LH & RH P/N: 160-16997-GTB
Diameter: 15.50"
Width: 1.38"
Material: Iron, Black E-Coat
GT slotted surface
72-vane directional cooling
Dynamically balanced
P/N: 170-13872
Material: Iron, Black E-Coat finish
Offset: 2.920"
Bolt Circle: 8 x 7.09"
Stud Diameter: 0.640"
| Component | Specification |
|---|---|
| Rear End Axle | OEM |
| Axle Offset | 0.00" |
| Caliper Type | TX6R 6-Piston |
| Rotor Diameter | 15.50" |
| Minimum Wheel Diameter | 20" |
| Mount Type | Radial |
| Pad Compound | BP-Q |

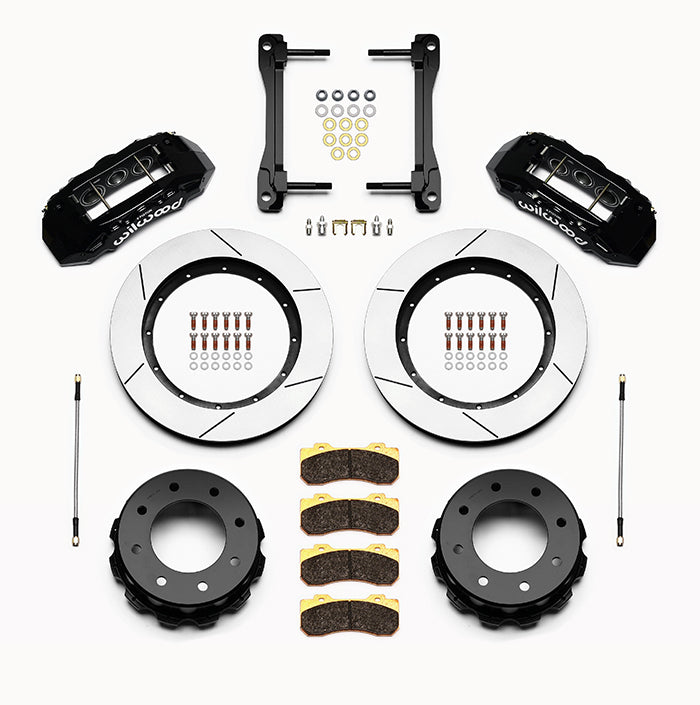

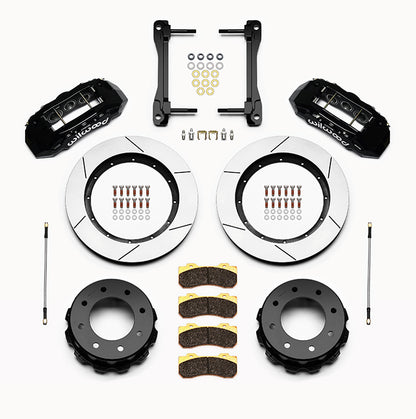

| Kit Includes | Calipers, rotors, rotor hats, brackets, hardware |
| Brake Lines | Braided stainless lines required for some applications |
Direct bolt-on replacement for factory rear disc brakes
Works with OE parking brake
Minimum required wheel size: 20 inches
Professional installation recommended due to size and weight of components
Designed for 2011–2019 GM 2500HD trucks
Intended for extreme-duty braking, towing, hauling, and high-performance use
Works as a system upgrade when paired with Wilwood front TX6R kits
Some applications require separate purchase of braided stainless brake lines
