Wilwood 260-7563 Tandem Remote Master Cylinder – 1.00in Bore

The Wilwood 260-7563 Tandem Remote Master Cylinder is designed to provide one of the safest and most reliable methods for actuating four-wheel brake systems or dual-caliper axle configurations. Featuring a true 50/50 output from a 1.00-inch bore and 1.10-inch stroke, this tandem master cylinder ensures balanced hydraulic pressure delivery across dual brake circuits.

This unit is compatible with Wilwood single-mount pedal assemblies and is supplied as a complete kit, including dual 4-ounce reservoirs, mounting brackets, pushrod hardware, and fluid-resistant hoses for flexible installation. The reservoirs can be mounted directly to the master cylinder or remotely using the included bracket assemblies, making this an ideal solution for race cars, off-road vehicles, and custom performance builds.

Key Features & Benefits

• Tandem-outlet master cylinder for dual brake circuits

• True 50/50 pressure output for balanced braking

• 1.00 inch bore with 1.10 inch stroke

• Designed for four-wheel brake or dual-caliper axle systems

• Compatible with Wilwood single-mount pedal assemblies

• Dual 4 oz remote reservoirs included

• Direct-mount or remote-mount reservoir capability

• Includes fluid-resistant hoses and mounting hardware

Technical Specifications

• Bore Size: 1.00 in

• Area: 0.780 in²

• Stroke: 1.10 in

• Type: Tandem Outlet

• Number of Outlets: 2

• Material: Aluminum / Plastic

• Finish: Bare

• Reservoir Type: Remote

• Reservoir Capacity:

  • 4.0 oz / 7.2 cu in (Front)

  • 4.0 oz / 7.2 cu in (Rear)

Dimensions & Fittings

• Overall Length: 9.88 in

• Flange to End Length: 7.03 in

• Inlet Size: 1.35 in

• Inlet Fitting: 3/8 in Hose

• Outlet Size (1 & 2): 15mm x 1.00

• Outlet Fitting (1 & 2): 3/8-24 Inverted Flare Female

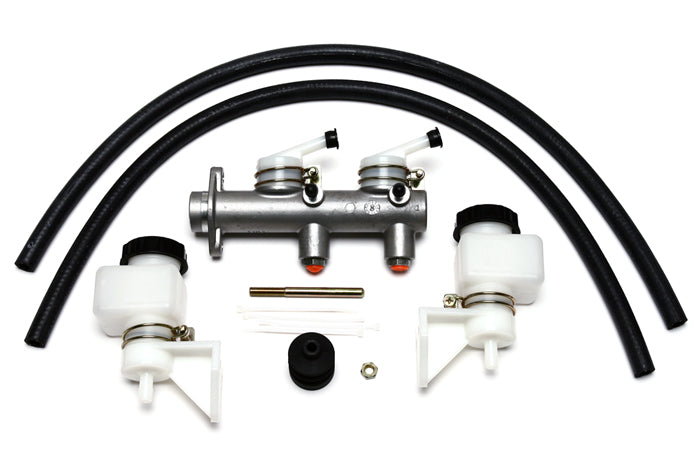

Package Contents

• Wilwood Tandem Remote Master Cylinder

• (2) 4 oz Brake Fluid Reservoirs

• Remote Reservoir Mounting Brackets

• (2) 3/8 in x 30 in Fluid-Resistant Hoses

• 3.38 in x 5/16-24 Pushrod

• Required mounting hardware

Vehicle Fitment

• Universal Fit

• Designed for four-wheel brake systems, dual-caliper axles, and custom brake setups

• Compatible with Wilwood single-mount pedal assemblies

• Ideal for racing, off-road, and performance street applications

• Professional installation recommended

Additional Notes

• Brake bias adjustment may be required depending on vehicle setup

• Not all brake system modifications are legal for street use

• Always verify pedal ratio and bore sizing before installation
