  • Wilwood Brake/Clutch Pedal Assemblies 341-15170
-7%

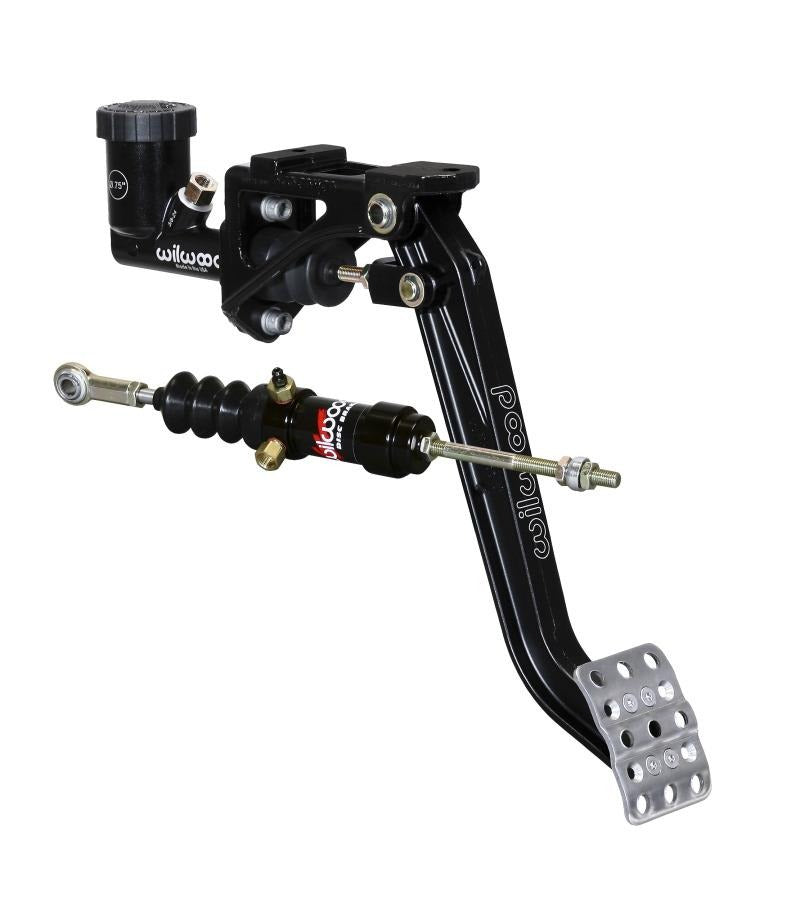

Wilwood Brake/Clutch Pedal Assemblies 341-15170 - eliteracefab.com
Click to zoom in
Load image into Gallery viewer, Wilwood Brake/Clutch Pedal Assemblies 341-15170 - eliteracefab.com

Wilwood Brake/Clutch Pedal Assemblies 341-15170

2 sold in last 8 hours
Wilwood
WIL341-15170
In stock
Pedals
$263.34 $243.84
Wilwood Clutch Kit - Forged Adj. Pedal / MC / Slave - Swing Mount - 7:1   Wilwood Disc Brakes offers a selection of forward and reverse mount brake and...

Wilwood Brake/Clutch Pedal Assemblies 341-15170
Description

Wilwood Clutch Kit - Forged Adj. Pedal / MC / Slave - Swing Mount - 7:1



Wilwood Disc Brakes offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Designed for use with Wilwood's aluminum tandem or composite master cylinders, Wilwood brake/clutch pedal assemblies are made from lightweight aluminum and are designed for easy mounting and smooth, reliable operation.

Select versions include Wilwood's Tru-Bar pedals that utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide the ultimate in precision, control, and adjustment of brake bias on race-prepped vehicles.

All Wilwood pedal assemblies feature comfortable ergonomics with non-slip footpads and a protective coating. They're available in a variety of sizes and styles.



UPC:889545075236

Pedal Type:Clutch

Clutch Pedal Shape:Rectangle

Clutch Pedal Length:12.100 in.

Pedal Mounting Location:Firewall mount

Pedal Ratio:7:1

Throttle Cable Included:No

Balance Bar Included:Yes

Master Cylinder Included:Yes

Master Cylinder Style:Single

Pedal Material:Aluminum

Pedal Finish:Black

Pedal Pad Material:Anti-slip surface

Pedal Pad Finish:Natural

Quantity:Sold as a kit.

Notes:Integral reservoir master cylinder in a 3/4 in. bore and universal pull type slave cylinder.
