Wilwood - FDL Pro-Series Front Hub Brake Kit - GM F-Body 1967-1969 / GM A-Body 1964-1974 - 140-10996-D

Name: Wilwood - FDL Pro-Series Front Hub Brake Kit - GM F-Body 1967-1969 / GM A-Body 1964-1974 - 140-10996-D
Brand: Wilwood
SKU: WIL140-10996-D
Price: 1194.79 USD
Availability: InStock

$1,194.79 USD

~~$1,338.16 USD~~ $1,194.79 USD

-10%

Shipping calculated at checkout.

Brand: Wilwood

SKU: WIL140-10996-D

Part Number: 140-10996-D

Availability: In stock

Product Type: Big Brake Kits

Upgrade your classic GM with the Wilwood FDL Pro-Series Front Hub Brake Kit (140-10996-D)—a limited-offset disc brake system engineered to deliver modern stopping power while keeping your factory wheel position...

Quantity

Free* Shipping on Orders Over $159

Easy 30 Days- No Hassle Returns

37,000+ 5 Star Reviews

MFG Fitment Guarantee

View full details

Description

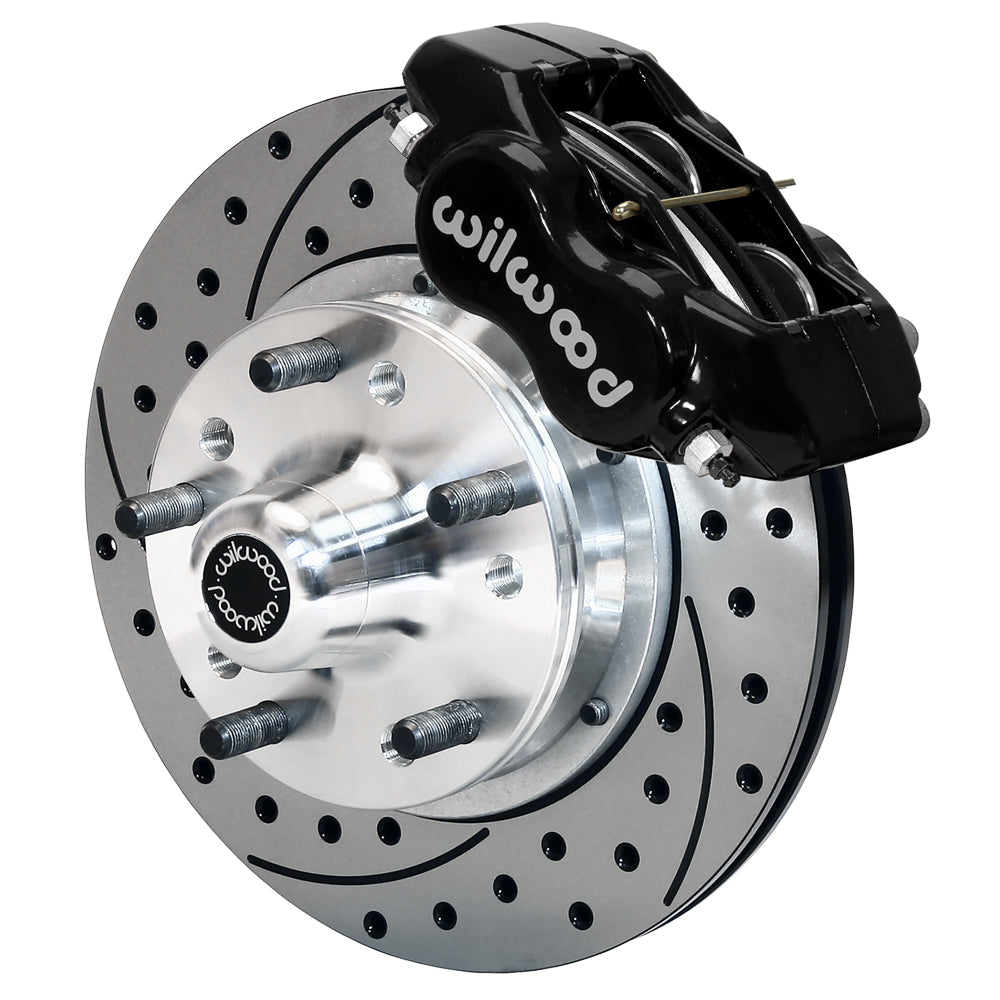

Upgrade your classic GM with the Wilwood FDL Pro-Series Front Hub Brake Kit (140-10996-D)—a limited-offset disc brake system engineered to deliver modern stopping power while keeping your factory wheel position in check. Built around Wilwood’s proven forged Dynalite 4-piston calipers, this kit pairs 11.00" SRP drilled & slotted rotors with forged aluminum hubs to improve braking performance and heat management without requiring major modifications on most applications. It’s a great choice for a street-driven cruiser, a competition build, or a show-quality restoration that demands performance and clean fitment.

Why You’ll Want This Kit

Limited-offset design helps maintain factory wheel position
Works with OEM disc or drum spindles (lug mount)
Fits many popular 14" wheels and larger (15" wheels commonly clear with room to spare)
Compatible with manual or power-boost master cylinders

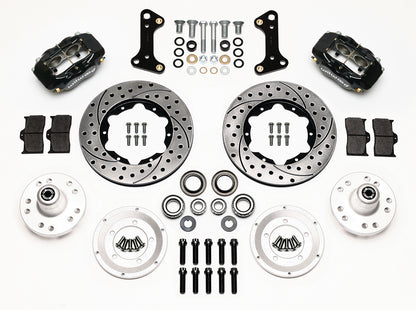

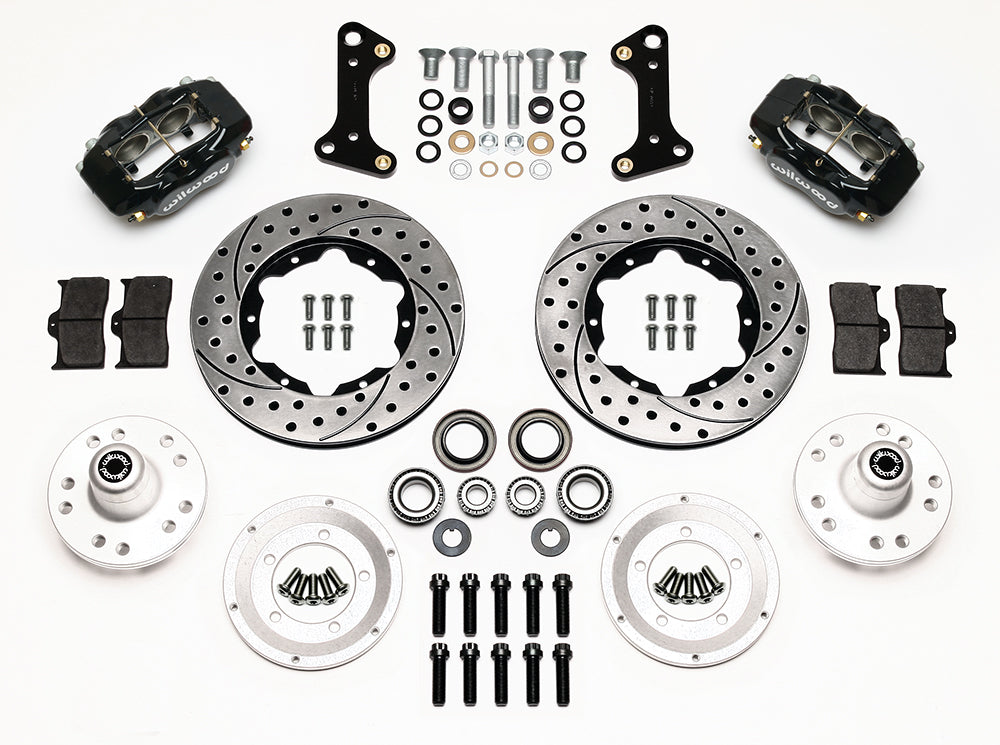

Complete front kit includes calipers, rotors, hubs, brackets, and hardware

Track Width / Offset Notes

OE Hub Offset: +0.19"
Track change vs. factory setups:
+0.19" wider than original drum brake position
-0.31" narrower than original disc brake rotor assembly
Brake lines are required for installation and are sold separately.

Features

Forged Dynalite Internal 4-piston calipers
Black powder coat caliper finish
SRP drilled & slotted rotors for improved cooling and bite
Black electro-coat rotor finish
Forged aluminum hubs (lightweight, performance-minded)
Dual bolt pattern hubs: 5 x 4.50 and 5 x 4.75
Minimum wheel diameter required: 14"

Specifications

Kit Summary

Rotor Diameter: 11.00"
Mount Type: Lug
Spindle Type: Factory Disc / Factory Drum / Drop Spindle
Caliper Type/Finish: 4-piston – Black Powder Coat
Minimum Wheel Diameter Required: 14"

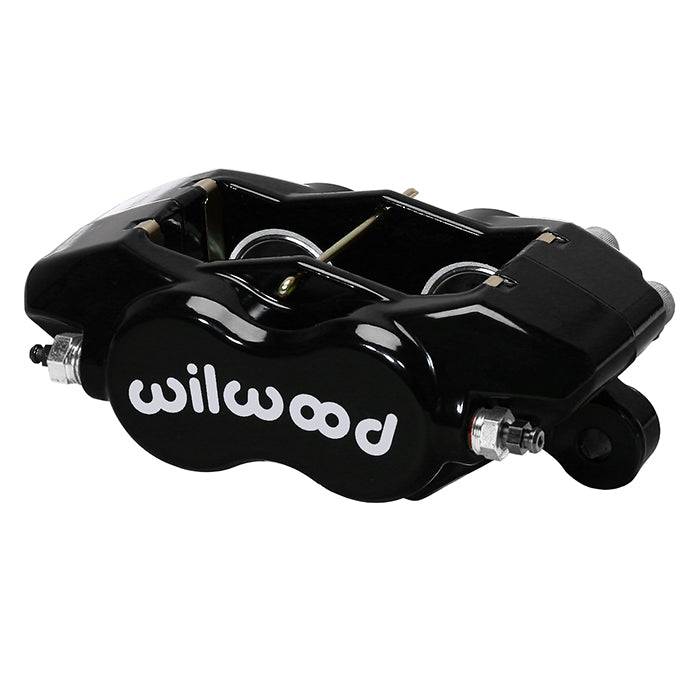

Calipers

LH / RH Caliper P/N: 120-13844-BK
Type: Forged Dynalite Internal
Pistons: 4
Piston Bore: 1.75" (x4)
Total Piston Area: 4.80 in²
Piston Material: Stainless
Pad Plate: 7112
Pad Compound: BP-10
Pad Area: 6.36 in²

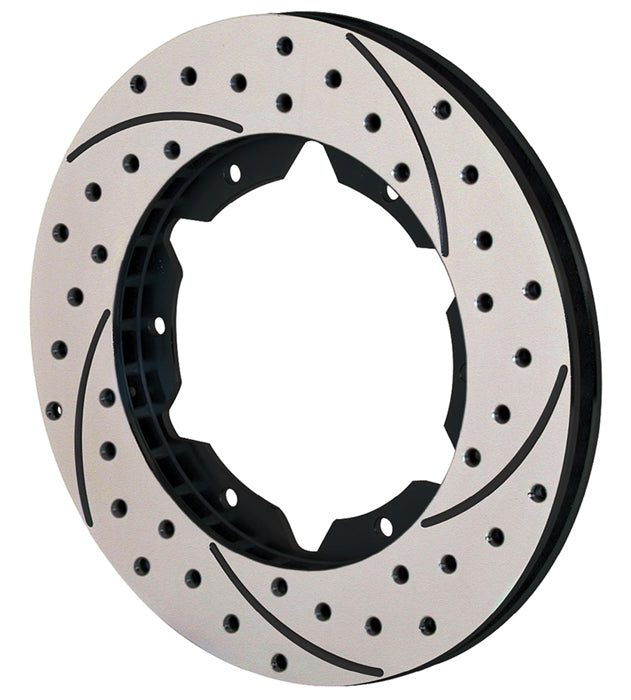

Rotors

LH Rotor P/N: 160-7100-BK
RH Rotor P/N: 160-7099-BK
Type: SRP Drilled Rotor
Style: Drilled & Slotted
Finish: Black Electro Coat
Material: Iron
Diameter: 11.00"
Width: 0.81"
Vane Count: 30

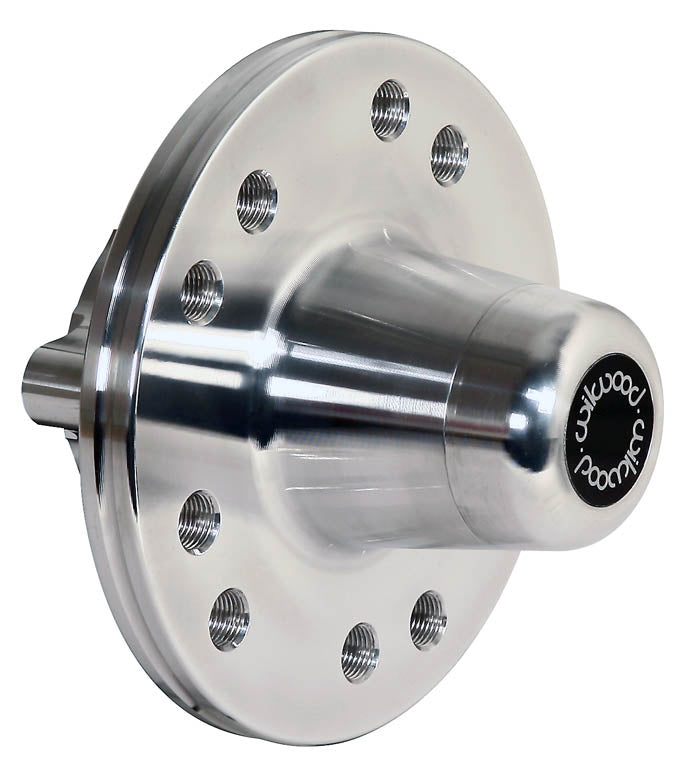

Hubs

Hub P/N: 270-7274
Type: Hub – Vented Rotor Offset
Material: Aluminum
Finish: Bare
Mount Style: Adapter
Bolt Patterns: 5 x 4.50 / 5 x 4.75
Stud Size: 1/2-20

Why You’ll Want This Kit

Limited-offset design helps maintain factory wheel position
Works with OEM disc or drum spindles (lug mount)
Fits many popular 14" wheels and larger (15" wheels commonly clear with room to spare)
Compatible with manual or power-boost master cylinders
Complete front kit includes calipers, rotors, hubs, brackets, and hardware

Track Width / Offset Notes

OE Hub Offset: +0.19"
Track change vs. factory setups:
+0.19" wider than original drum brake position
-0.31" narrower than original disc brake rotor assembly
Brake lines are required for installation and are sold separately.

Features

Forged Dynalite Internal 4-piston calipers
Black powder coat caliper finish
SRP drilled & slotted rotors for improved cooling and bite
Black electro-coat rotor finish
Forged aluminum hubs (lightweight, performance-minded)
Dual bolt pattern hubs: 5 x 4.50 and 5 x 4.75
Minimum wheel diameter required: 14"

Specifications

Kit Summary

Rotor Diameter: 11.00"
Mount Type: Lug
Spindle Type: Factory Disc / Factory Drum / Drop Spindle
Caliper Type/Finish: 4-piston – Black Powder Coat
Minimum Wheel Diameter Required: 14"

Calipers

LH / RH Caliper P/N: 120-13844-BK
Type: Forged Dynalite Internal
Pistons: 4
Piston Bore: 1.75" (x4)
Total Piston Area: 4.80 in²
Piston Material: Stainless
Pad Plate: 7112
Pad Compound: BP-10
Pad Area: 6.36 in²

Rotors

LH Rotor P/N: 160-7100-BK
RH Rotor P/N: 160-7099-BK
Type: SRP Drilled Rotor
Style: Drilled & Slotted
Finish: Black Electro Coat
Material: Iron
Diameter: 11.00"
Width: 0.81"
Vane Count: 30

Hubs

Hub P/N: 270-7274
Type: Hub – Vented Rotor Offset
Material: Aluminum
Finish: Bare
Mount Style: Adapter
Bolt Patterns: 5 x 4.50 / 5 x 4.75
Stud Size: 1/2-20
