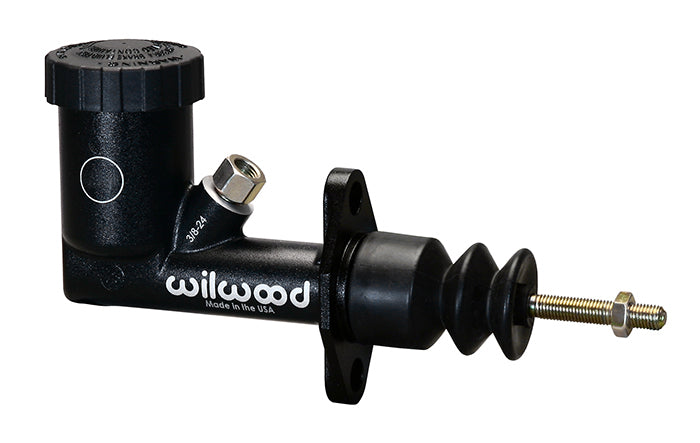

Wilwood GS Compact Integral Master Cylinder - 260-15096

Wilwood’s GS Compact Integral Master Cylinder features a compact, rebuildable design with a high-pressure die-cast aluminum body and durable black e-coat finish. The integral reservoir includes a positive-seal internal bellows cap, while the refined piston and return spring assembly provide consistent pressure control and quick, complete release.

Key Features & Specs

• Compact rebuildable master cylinder
• High-pressure die-cast aluminum construction
• Black e-coat protective finish
• Integral reservoir with internal bellows cap
• Refined piston and return spring for reliable pressure control
• Single outlet design

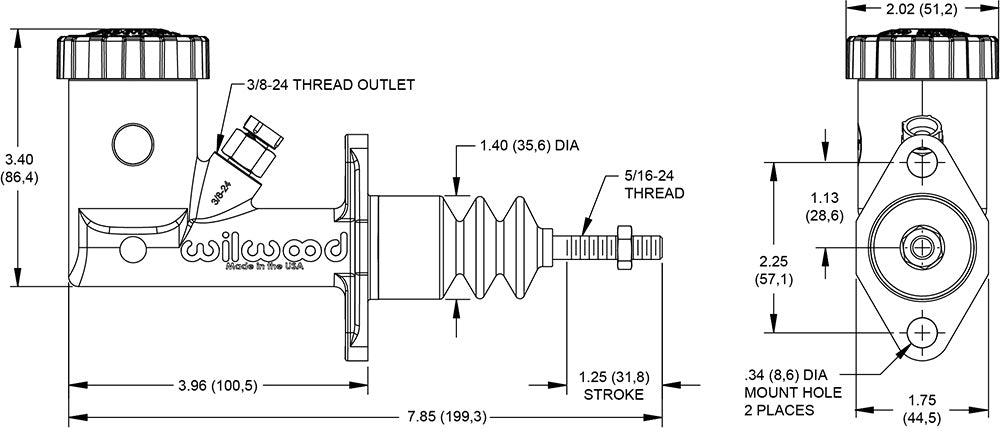

Specifications

• Bore Size: 5/8"
• Area: 0.310 in²
• Stroke: 1.25"
• Volume: 0.39 cu in
• Material: Aluminum
• Finish: Black E-coat
• Outlets: 1
• Reservoir Type: Integral
• Reservoir Capacity: 1.5 oz (2.7 cu in)
