Air Lift – ALP4 Pressure-Based Air Management System 3/8 in (No Tank, No Compressor) – Universal – 27485

The Air Lift ALP4 Air Management System (27485) represents the next evolution in air suspension control, combining advanced hardware, intelligent software, and a refined user interface into a compact, all-in-one solution. This pressure-based system features a billet aluminum manifold that integrates the ECU, solenoids, and pressure sensors internally—delivering cleaner installs, fewer failure points, and a show-ready appearance.

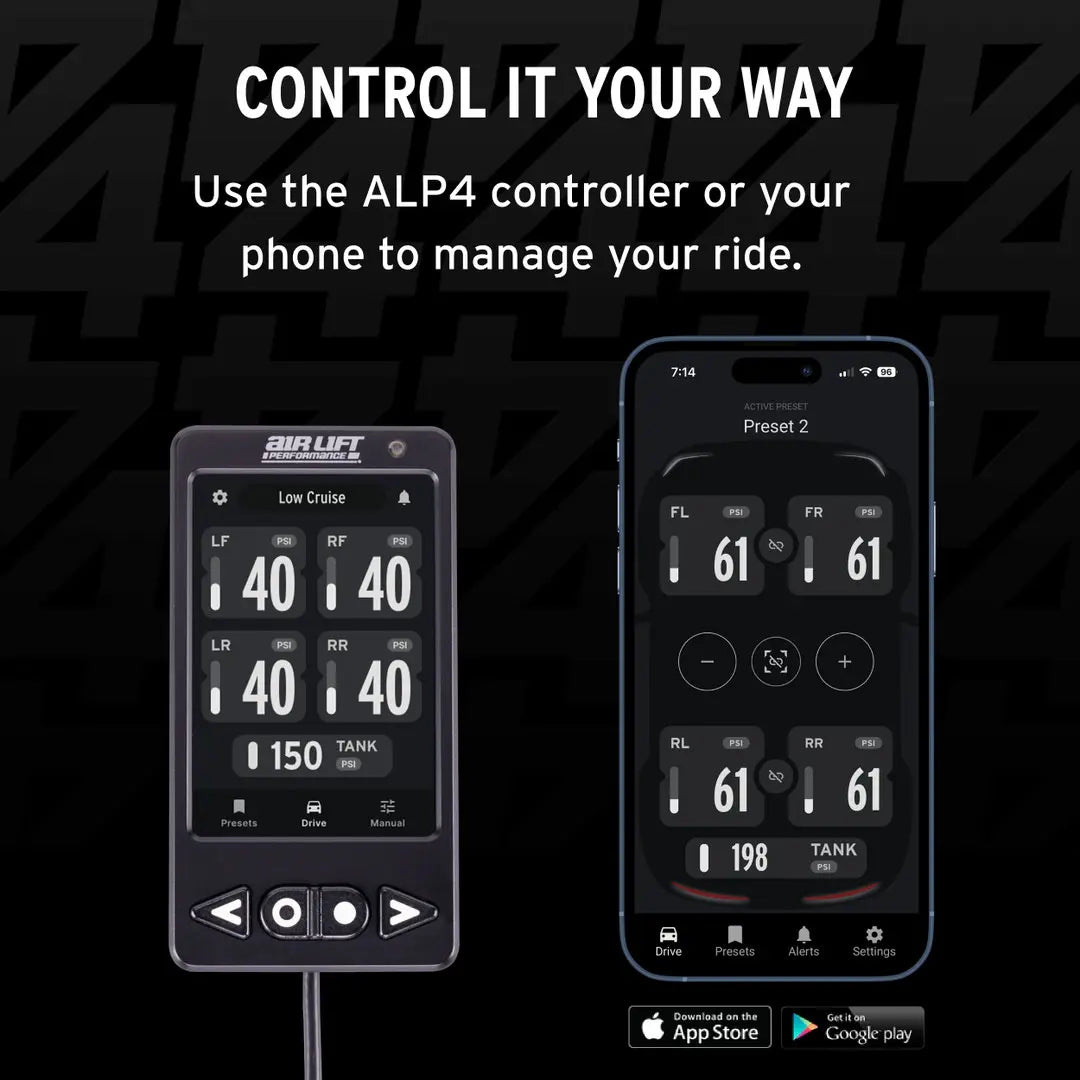

At the center of the system is a 5-inch full-color touchscreen controller housed in anodized aluminum and equipped with four tactile physical buttons. Users gain instant access to presets, 4-corner manual control, axle adjustments, full air-out, and other customizable functions. With mobile app integration, ALP4 allows you to monitor and fine-tune your air suspension setup from virtually anywhere.

This configuration includes 3/8-inch DOT air line, making it ideal for higher airflow applications while remaining fully compatible with threaded 1/4-inch FNPT manifold ports. The ALP4 is also upgradeable to height-based control using Air Lift’s Height Upgrade Kit and integrates seamlessly with optional tank and compressor kits (sold separately).

Key Features & Benefits

• Pressure-based air management system with optional upgrade to height-based control

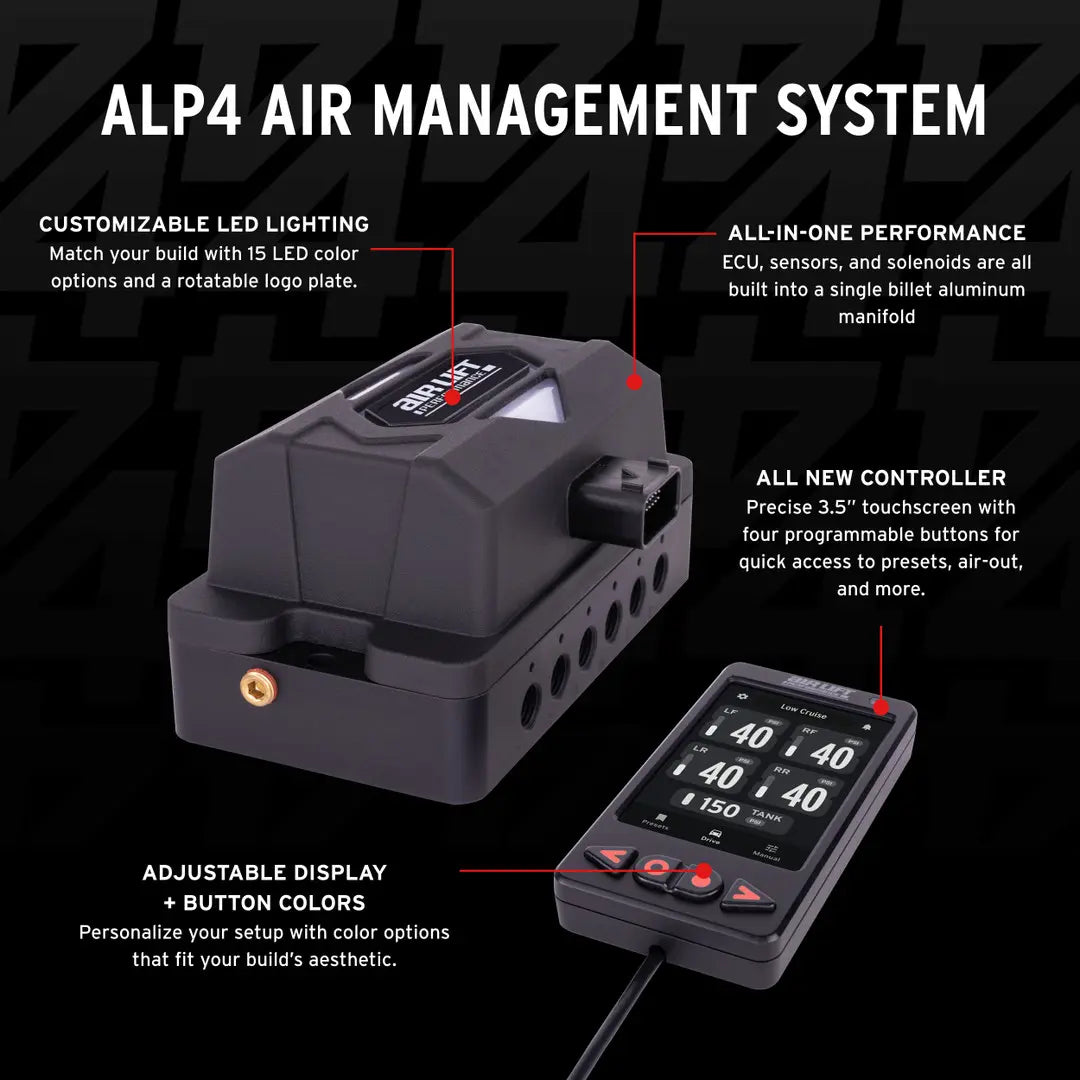

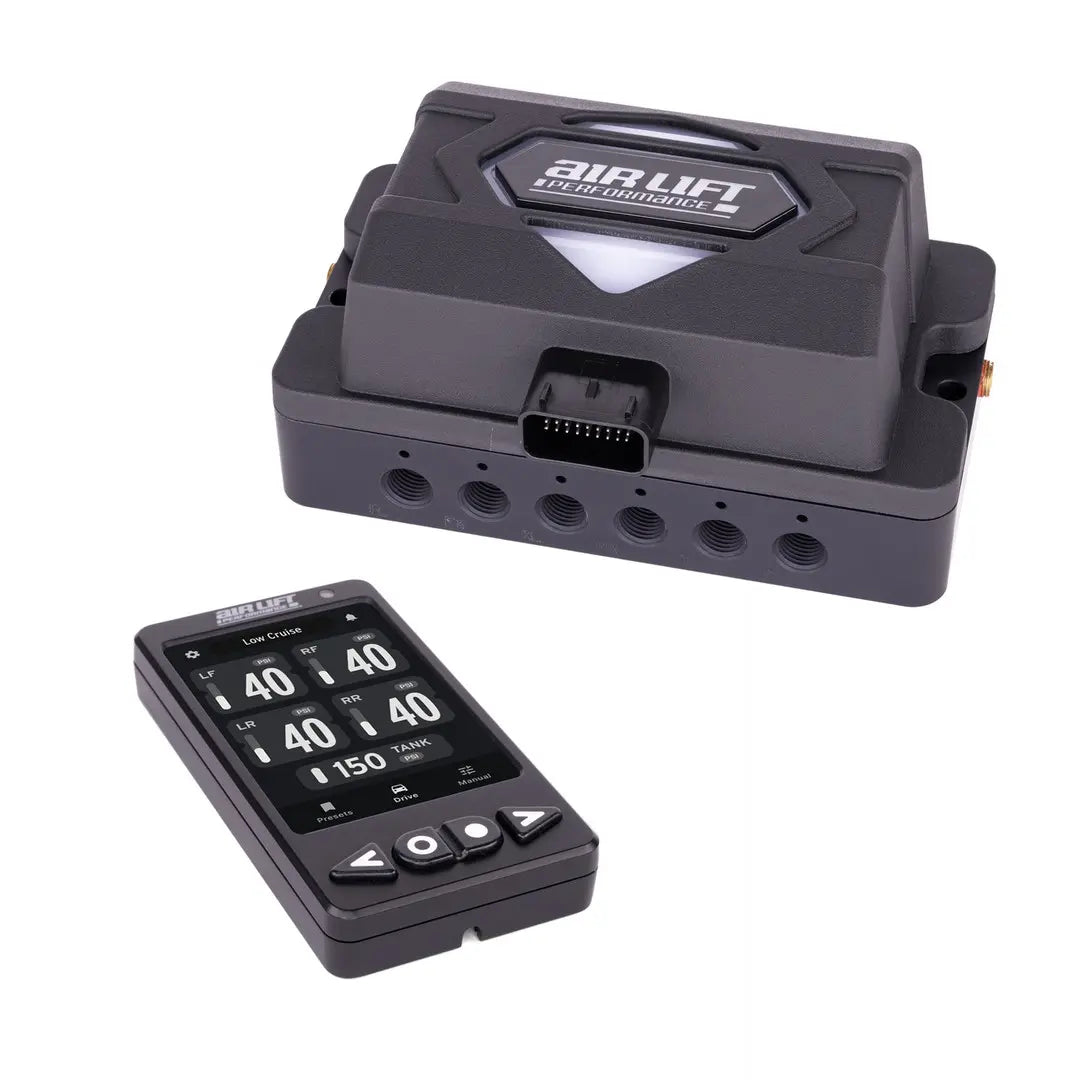

• Compact all-in-one billet aluminum manifold with ECU, solenoids, and pressure sensors built in
• Threaded 1/4” FNPT manifold ports compatible with included or aftermarket fittings

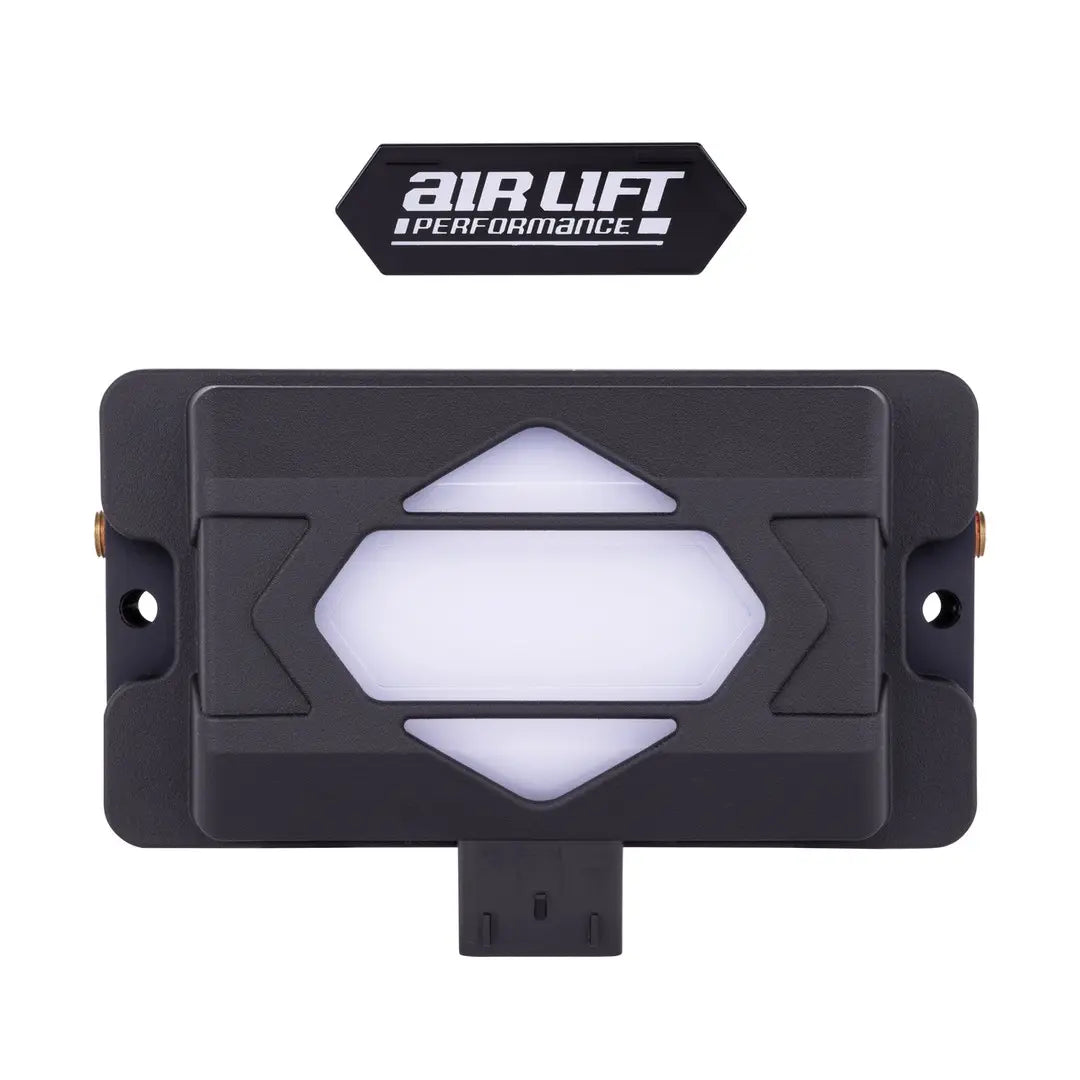

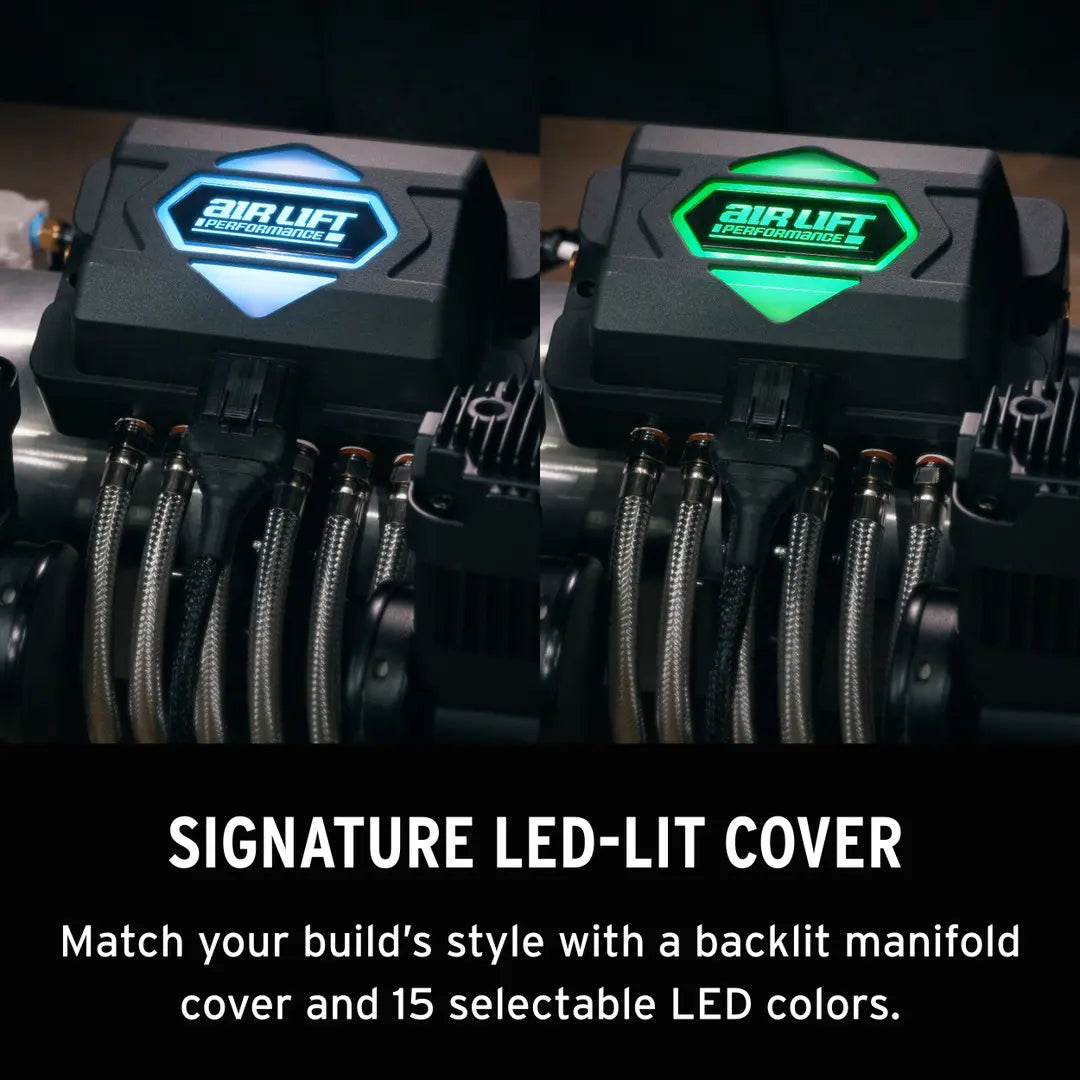

• Anodized black manifold with LED-lit top cover and rotatable logo plate

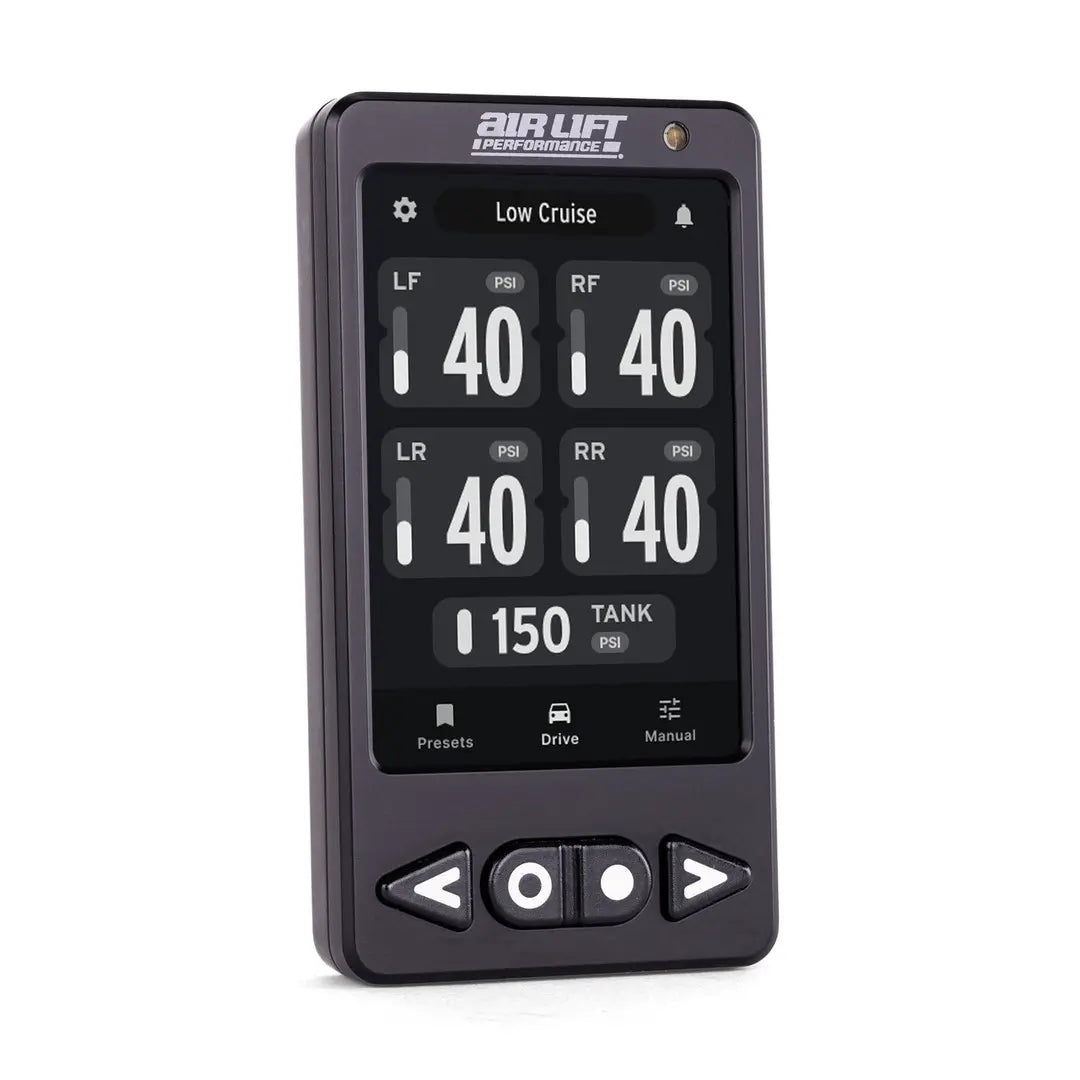

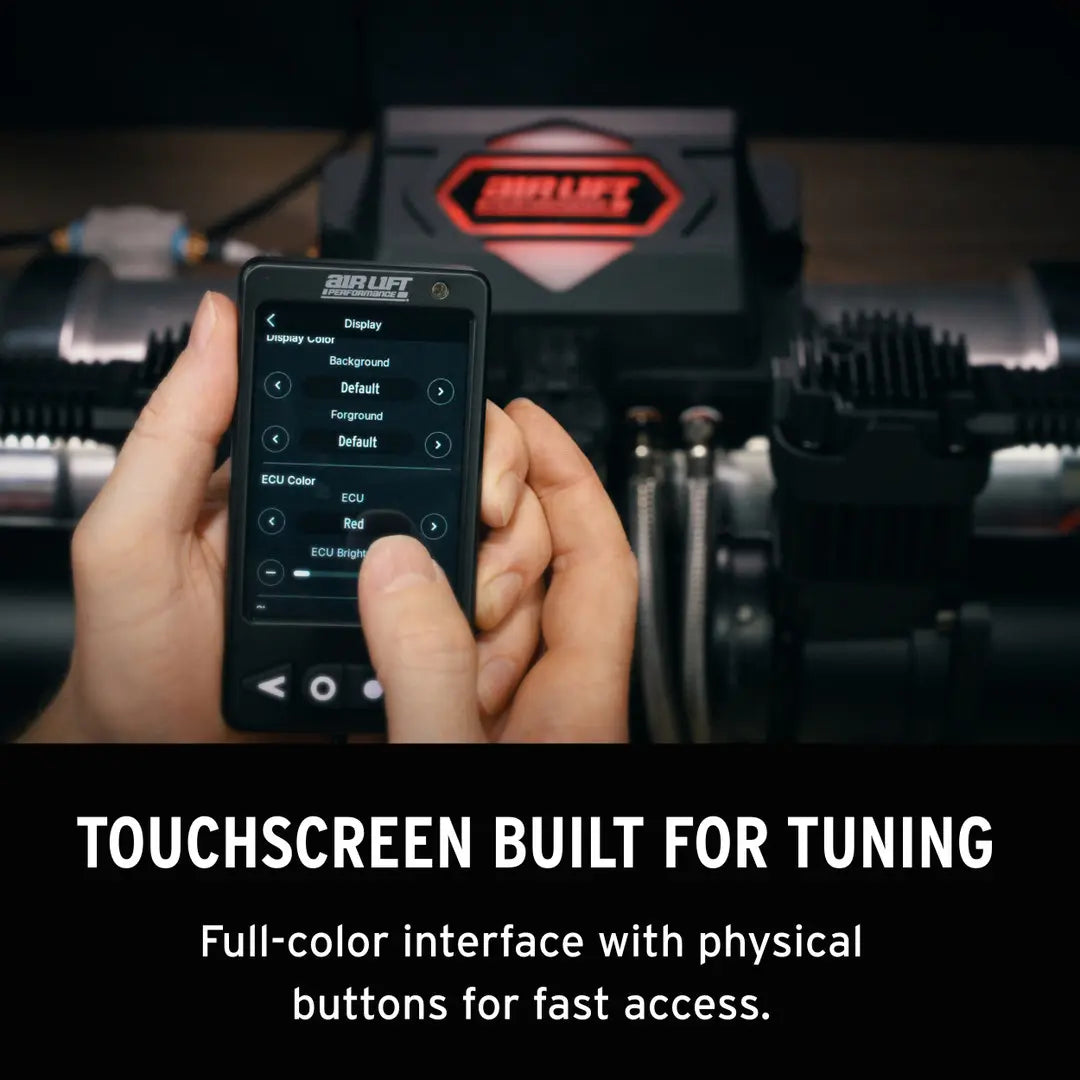

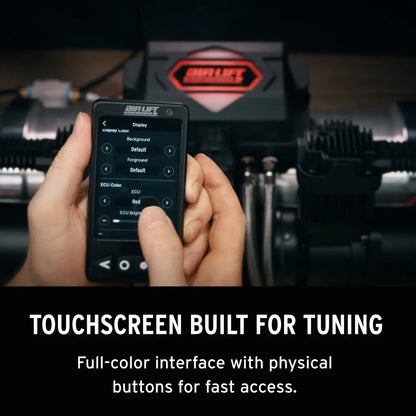

• 5-inch full-color touchscreen controller with anodized aluminum housing
• Four physical buttons for quick access to presets and key functions
• Auto-dimming ambient light sensor
• Adjustable LED colors for manifold cover, controller backlight, and buttons
• Plug-and-play harness requiring only power, ground, and keyed ignition
• Drop-in upgrade compatibility for existing Air Lift 3P and 3H systems

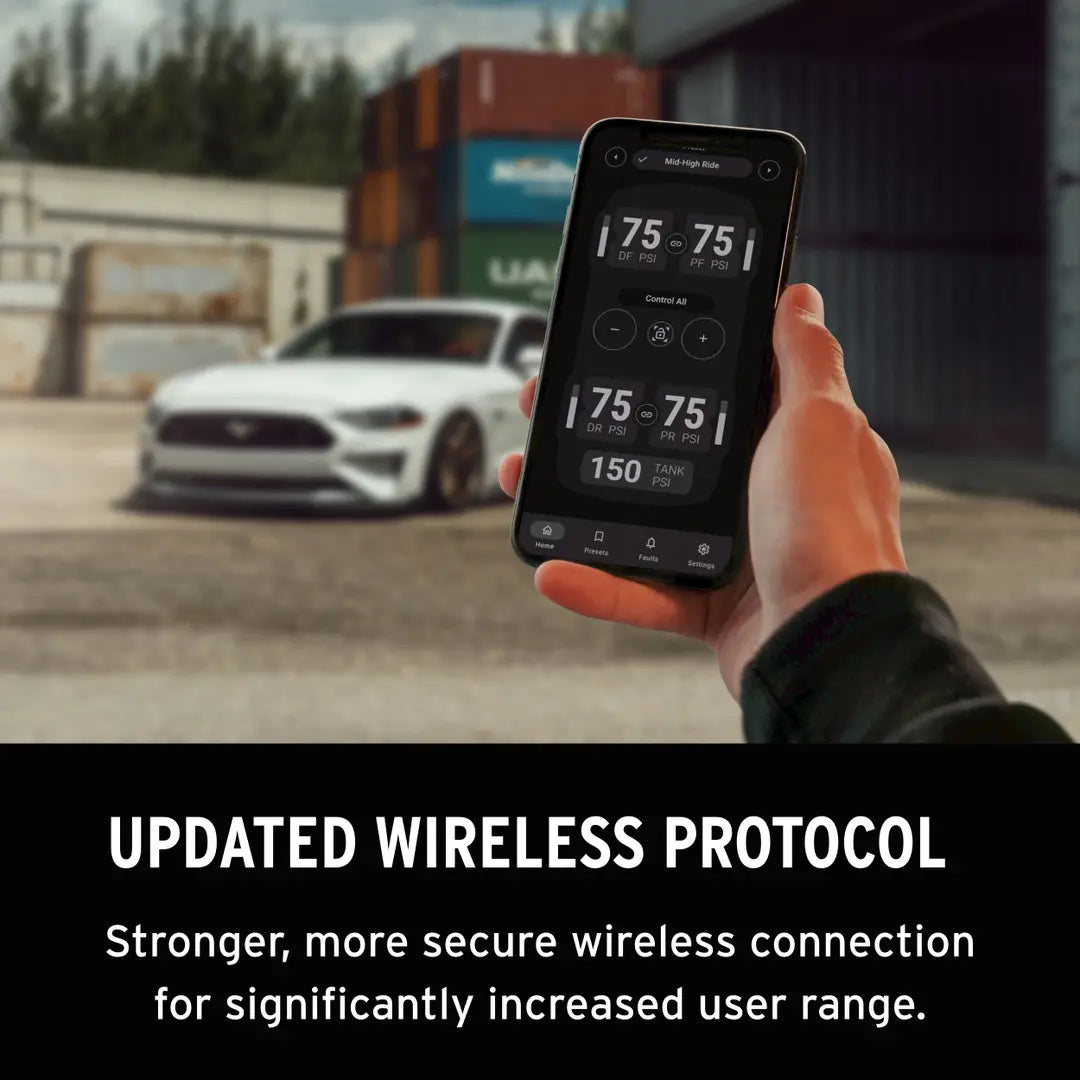

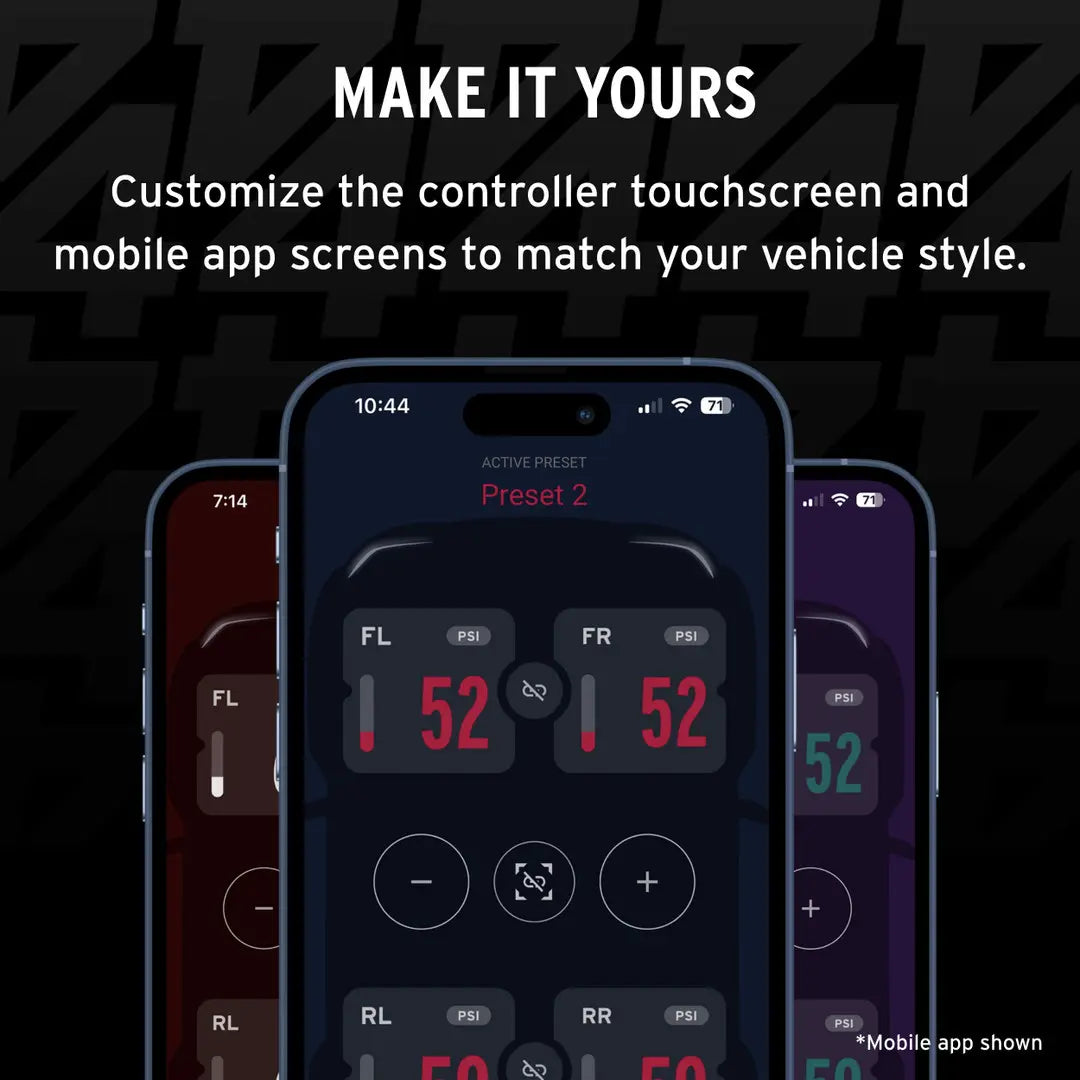

• Free mobile app with improved connectivity and intuitive interface
• Built-in diagnostics with clear system messages
• Compressor performance testing and health tracking
• Adjustable pulse rate and preset maintain sensitivity
• Valet Mode with customizable lockout settings
• Show Mode for system operation with vehicle off (one ignition cycle)
• Standby Mode for wireless access with minimal power draw
• Seamless integration with optional tank and compressor kits (not included)

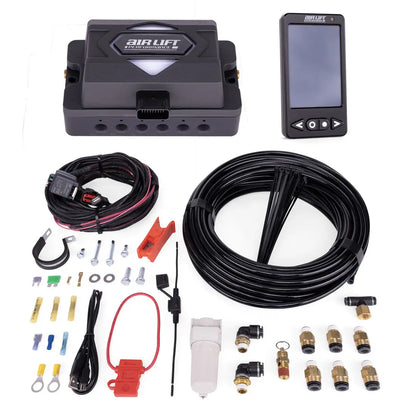

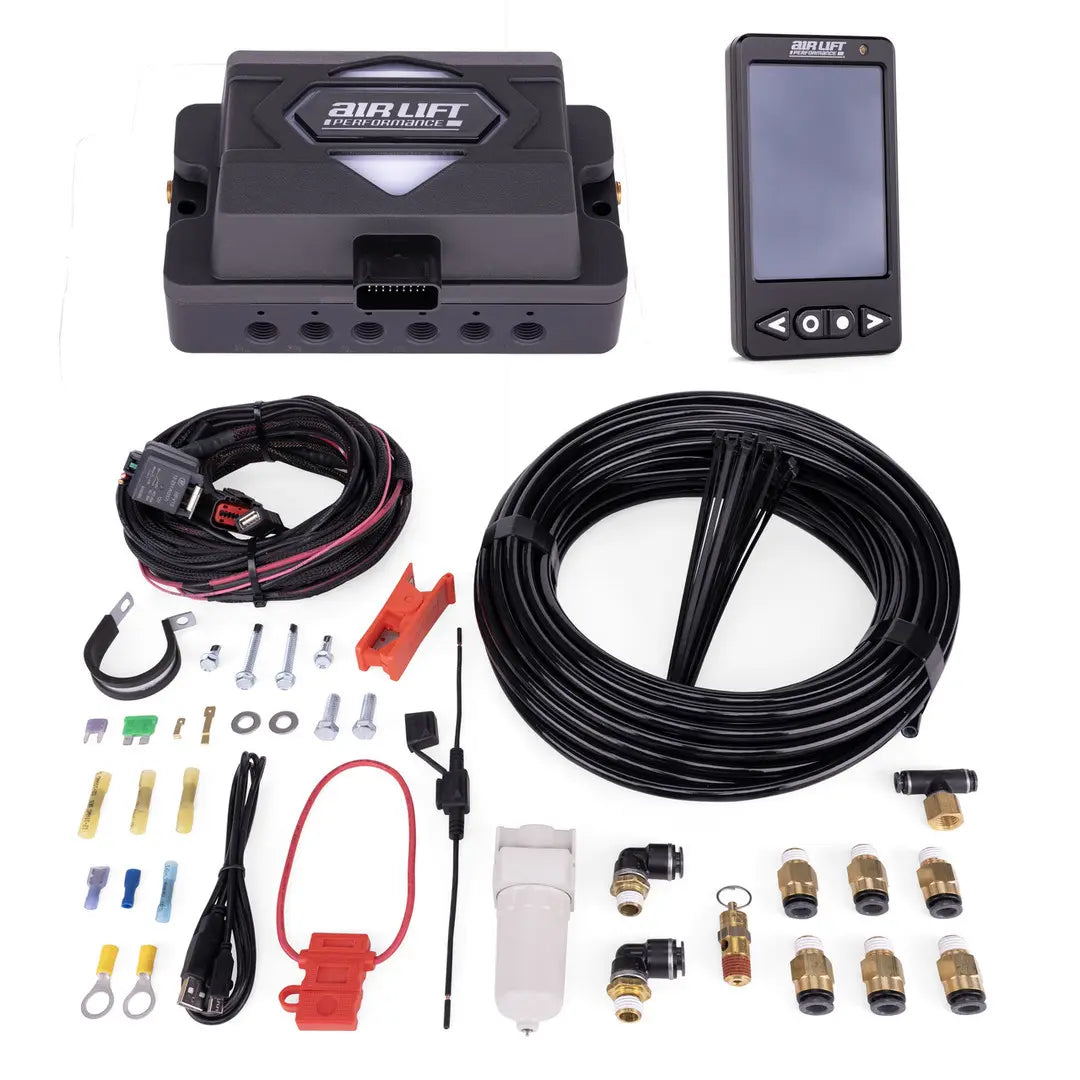

Kit Includes

• Threaded port 1/4” FNPT manifold
• Full-color touchscreen LCD controller with physical buttons
• Main wiring harness
• USB-A to USB-C controller cable
• Manifold mounting hardware
• Electrical hardware
• (6) 1/4” MNPT x 3/8” PTC fittings
• (1) SMC water trap with manual drain and mounting strap
• (1) Air line cutter
• (60 ft) 3/8” DOT-approved air line

Fitment

• Universal fit

• Compatible with Air Lift air suspension systems

• Works with most aftermarket air spring setups

• Upgradeable to height-based control with optional Height Upgrade Kit

• Tank and compressor not included

Specifications

• Part Number: 27485

• Series: ALP4 Air Management

• Control Type: Pressure-based

• Air Line Size: 3/8 in

• Manifold Type: Threaded port 1/4” FNPT

• Material: Anodized billet aluminum

• Tank Included: No

• Compressor Included: No
