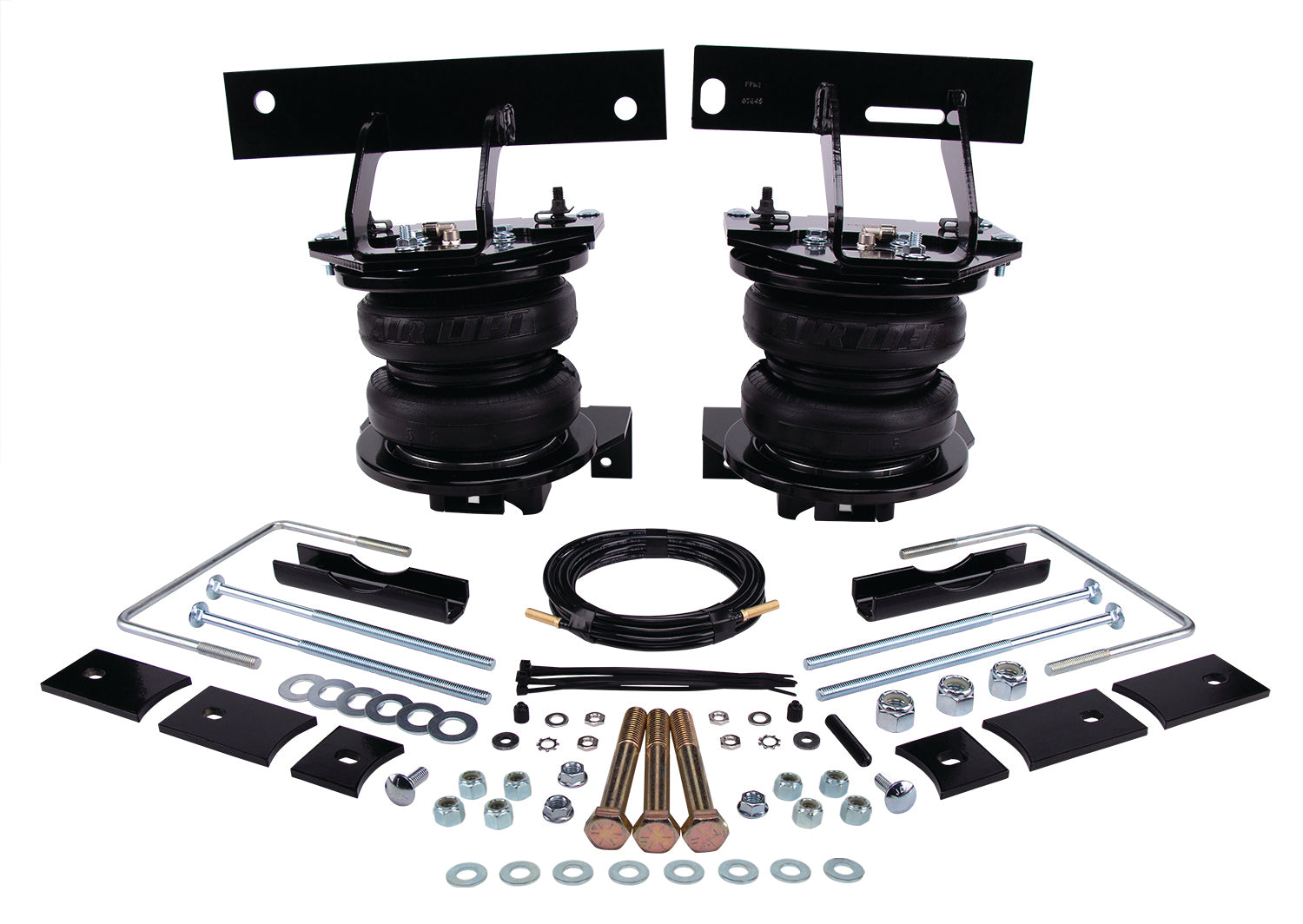

Air Lift – LoadLifter 7500 XL Ultimate Rear Air Spring Kit – 2020–2022 Ford F-250 & F-350 SRW 4WD – 57552

The Air Lift LoadLifter 7500 XL Ultimate Air Spring Kit (57552) is engineered for heavy-duty towing and hauling on 2020–2022 Ford F-250 and F-350 Super Duty Single Rear Wheel (SRW) 4WD trucks. Designed to handle demanding payloads, this rear air spring kit delivers up to 7,500 lbs. of load-leveling capacity, helping eliminate squat, reduce trailer sway, improve braking performance, and prevent bottoming out.

As part of Air Lift’s Ultimate series, this kit features an internal jounce bumper, allowing the air springs to be safely operated at zero PSI without damage. This provides full-time suspension support and protection even when unloaded. By leveling heavy loads with less air pressure, the LoadLifter 7500 XL Ultimate improves ride quality while reducing stress on factory suspension components.

The system mounts under the frame, installs with no drilling required, and is designed specifically for SRW models, making it an ideal solution for serious work and towing applications.

Key Features

• Up to 7,500 lbs. of load-leveling capacity*
• Reduces squat, trailer sway, rough ride, and bottoming out
• Internal jounce bumper allows safe 0 PSI operation
• Provides full-time load support
• Levels heavy loads with less air pressure for improved ride comfort
• Improves braking performance and overall vehicle stability
• Designed for heavy-duty towing and hauling
• No drilling required for installation
• Underframe mounting location
• Rear air spring kit

Fitment

Fits the following vehicles (SRW, 4WD only):

• 2020–2022 Ford F-250 Super Duty

• 2020–2022 Ford F-350 Super Duty

Fitment Notes:

• Single Rear Wheel (SRW) models only

• Does NOT fit Dual Rear Wheel (DRW) models

• Does NOT fit commercial / cab & chassis applications

Specifications

• Part Number: 57552

• Series: LoadLifter 7500 XL Ultimate

• Application Type: Rear Kit

• Mount Location: Underframe

• Load-Leveling Capacity: Up to 7,500 lbs.*

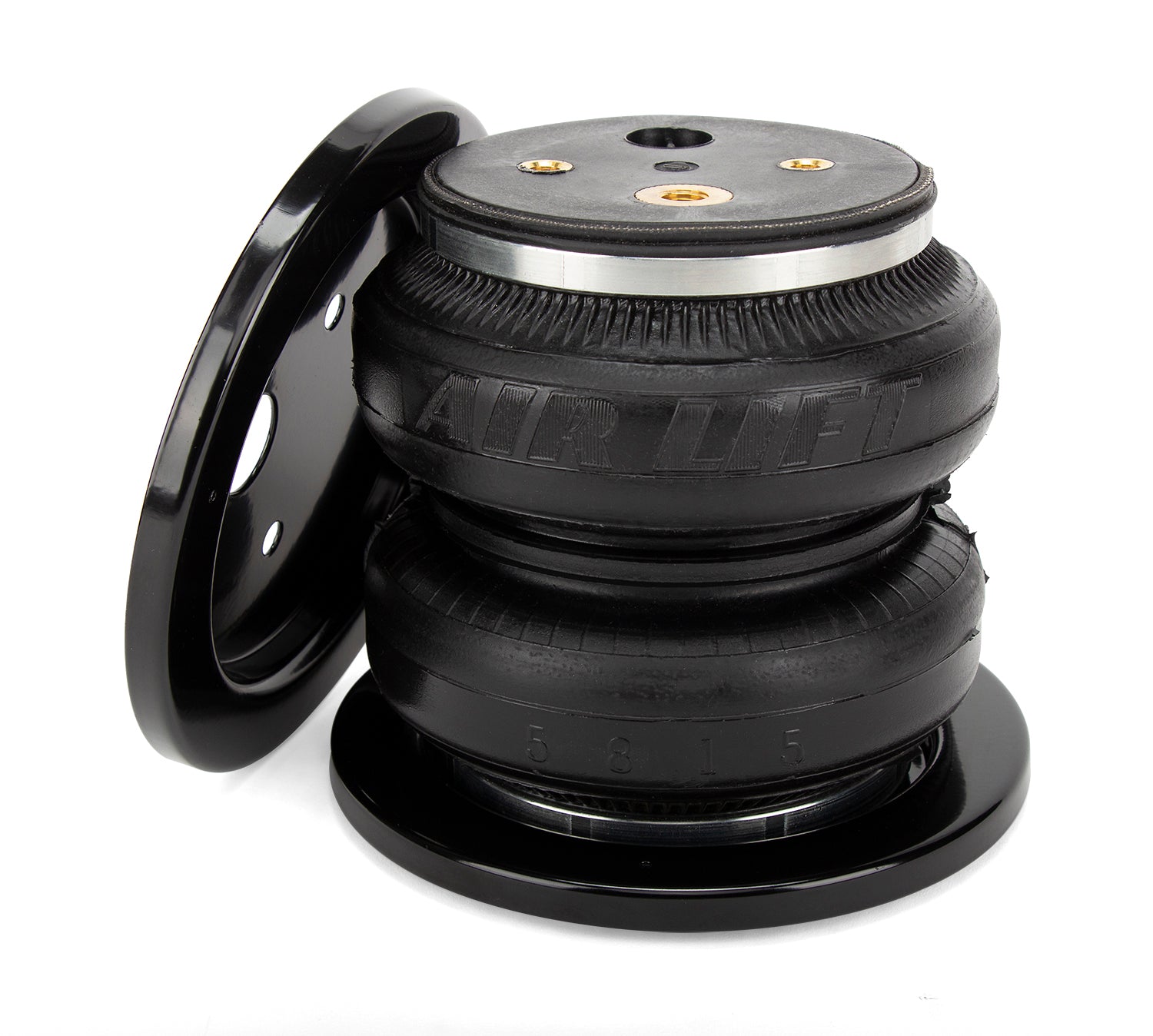

• Replacement Air Spring: 50236

• Drilling Required: No

Dimensions & Weight:

• Weight: 56.7 lb

• Width: 17 in

• Depth: 12 in

• Height: 10 in

*Load-leveling capacity is based on air spring system capacity and does not increase GVWR.
**Internal jounce bumper allows zero-PSI operation without damage.
