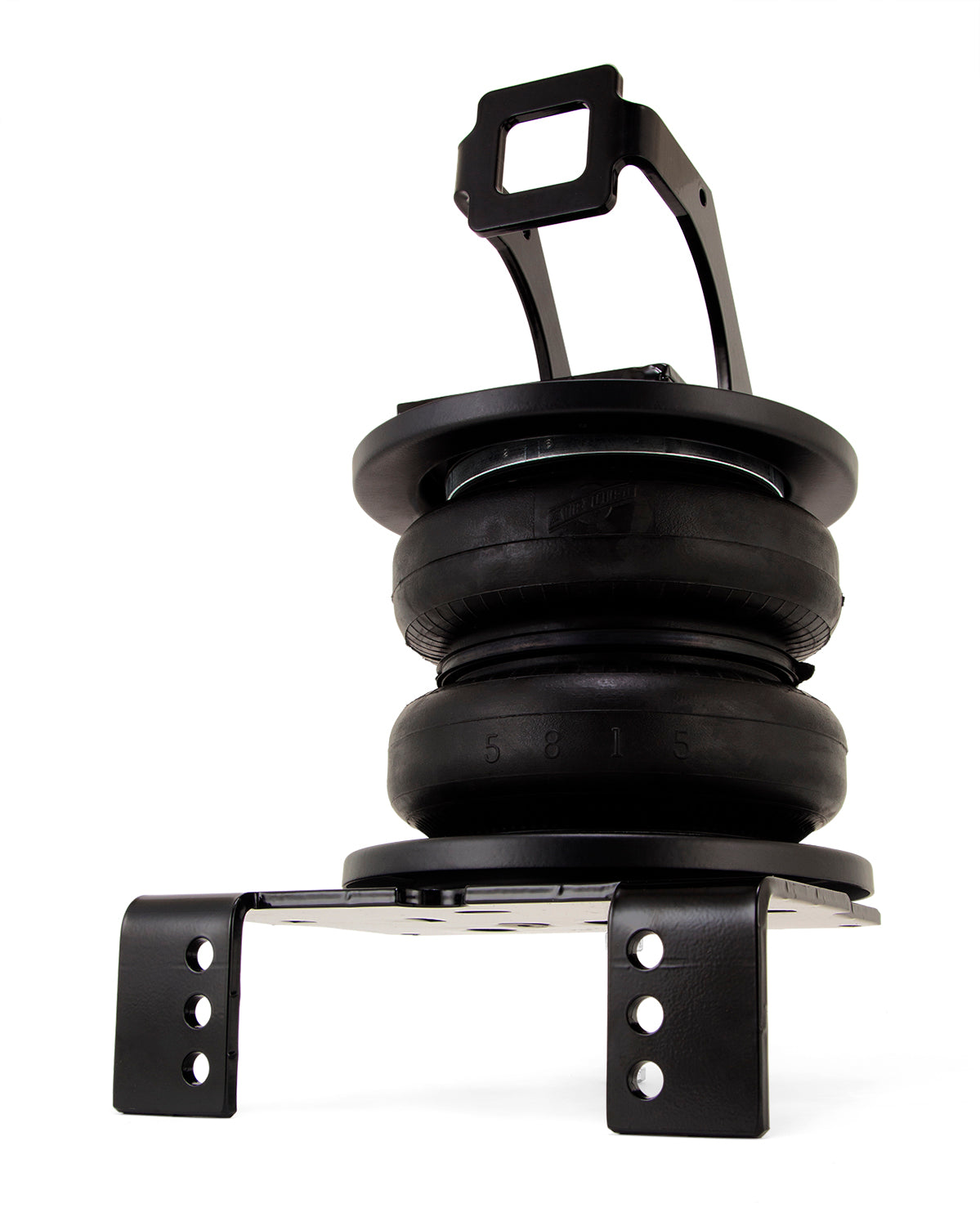

Air Lift – LoadLifter 7500 XL Ultimate Rear Air Spring Kit – 2011–2016 Ford F-250 & F-350 Super Duty 4WD – 57596

The Air Lift LoadLifter 7500 XL Ultimate Air Spring Kit (57596) is built for heavy-duty towing and hauling on 2011–2016 Ford F-250 and F-350 Super Duty 4WD trucks, delivering up to 7,500 lbs. of load-leveling capacity. Designed to handle the most demanding loads, this rear air spring kit helps eliminate squat, reduce trailer sway, improve braking performance, and prevent bottoming out.

Part of Air Lift’s Ultimate series, this kit features an internal jounce bumper, allowing the air springs to be safely run at zero PSI without damage—providing full-time suspension support even when unloaded. By leveling heavy loads with less air pressure, the LoadLifter 7500 XL improves ride comfort while reducing stress on factory suspension components.

This system installs with no drilling required and mounts under the frame for a clean, secure fit. It is compatible with single rear wheel (SRW) and dual rear wheel (DRW) trucks, works with most side-mount fifth wheel hitch applications, and is specifically designed to fit the factory in-bed hitch system.

Key Features

• Up to 7,500 lbs. of load-leveling capacity*
• Reduces squat, trailer sway, rough ride, and bottoming out
• Internal jounce bumper absorbs shock and allows safe 0 PSI operation
• Provides full-time load support
• Levels heavy loads with less air pressure for improved ride quality
• Improves braking performance and vehicle stability
• Designed for heavy-duty towing and hauling
• No drilling required for installation
• Underframe mounting location
• Rear air spring kit

Fitment

Fits the following vehicles:

• 2011–2016 Ford F-250 Super Duty 4WD

• 2011–2016 Ford F-350 Super Duty 4WD

Fitment Notes:

• Fits Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) models

• Compatible with most side-mount fifth wheel hitch applications

• Fits factory in-bed hitch system

• Does NOT fit cab & chassis applications

Specifications

• Part Number: 57596

• Series: LoadLifter 7500 XL Ultimate

• Application Type: Rear Kit

• Mount Location: Underframe

• Load-Leveling Capacity: Up to 7,500 lbs.*

• Replacement Air Spring: 50236

• Drilling Required: No

Dimensions & Weight:

• Weight: 45.7 lb

• Width: 17 in

• Depth: 12 in

• Height: 10 in

*Load-leveling capacity is based on air spring system capacity and does not increase GVWR.
**Internal jounce bumper allows zero-PSI operation without damage.
